Anatomy of the Eye, Orbit, and Extraocular Muscles

---

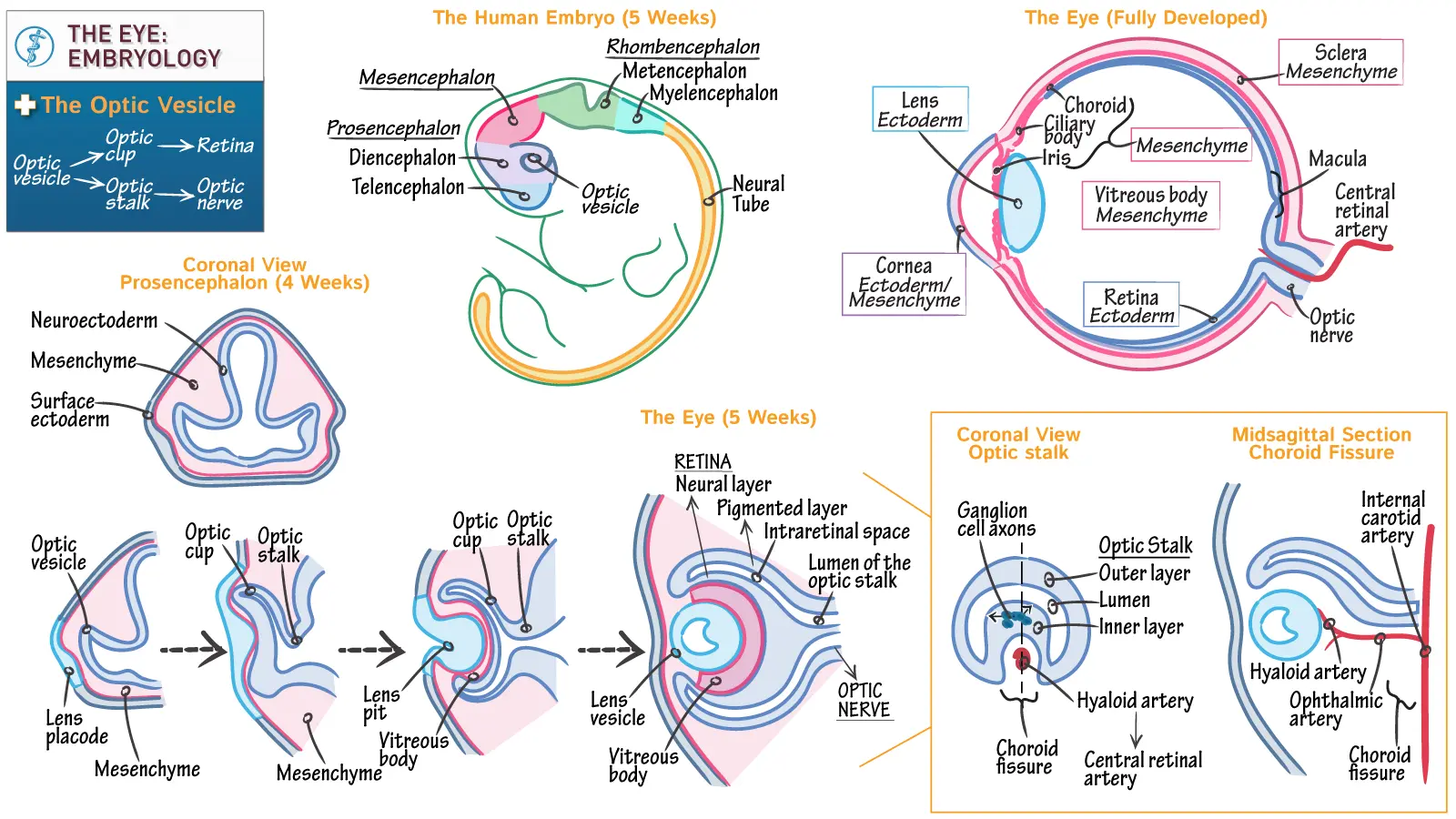

1. Embryology of the Eye

The development of the eye is an incredibly complex, highly orchestrated process that requires flawless interactions between the neural ectoderm, surface ectoderm, and mesenchyme. The master control gene for this entire process is the PAX6 gene, often referred to as the "master architect" of eye development.

1. Early Development (Optic Vesicles)

• Around day 22 of embryonic development, the eye begins its journey as a pair of shallow indentations called optic grooves located on the sides of the forebrain (diencephalon).
• With the closure of the neural tube, these grooves rapidly evaginate (push outward) to form optic vesicles, which are distinct outpocketings of the forebrain.
• These optic vesicles then grow laterally, moving outward until they make direct physical contact with the overlying surface ectoderm. This physical contact is crucial for the next stage of cellular communication (induction).

2. Lens Formation

• The optic vesicle releases chemical signals that induce the overlying surface ectoderm to thicken and invaginate, forming a specialized region called the lens placode.
• The lens placode then invaginates further inward to form the hollow lens vesicle.
• By the 5th week of intrauterine life, the lens vesicle completely loses contact with the surface ectoderm and drops down to lie within the mouth of the newly forming optic cup.
• Germ Layer Origin: The lens is formed entirely from the surface ectoderm.

3. Optic Cup Formation

• As the lens vesicle forms, the optic vesicle simultaneously invaginates back into itself to form a double-walled, goblet-like structure called the optic cup.
• This complex invagination also creates a groove called the choroid fissure (or optic fissure) running along the inferior surface of the optic cup and optic stalk.
• The choroid fissure is vital because it serves as a protected pathway for the hyaloid artery (which later becomes the central artery of the retina) to reach the inner chamber of the developing eye and supply the lens.
• During the 7th week, the lips of the choroid fissure must perfectly align and fuse. Failure of this fusion results in a structural defect called a coloboma.
• The anterior opening of the optic cup, formed by the successful fusion of the choroid fissure lips, eventually becomes the future pupil.

Derivatives of the Optic Cup Layers

---

2. Congenital Eye Abnormalities

Any disruption in the delicate sequence of embryological events can lead to a range of severe visual impairments. Understanding these provides deep insight into developmental biology.

---

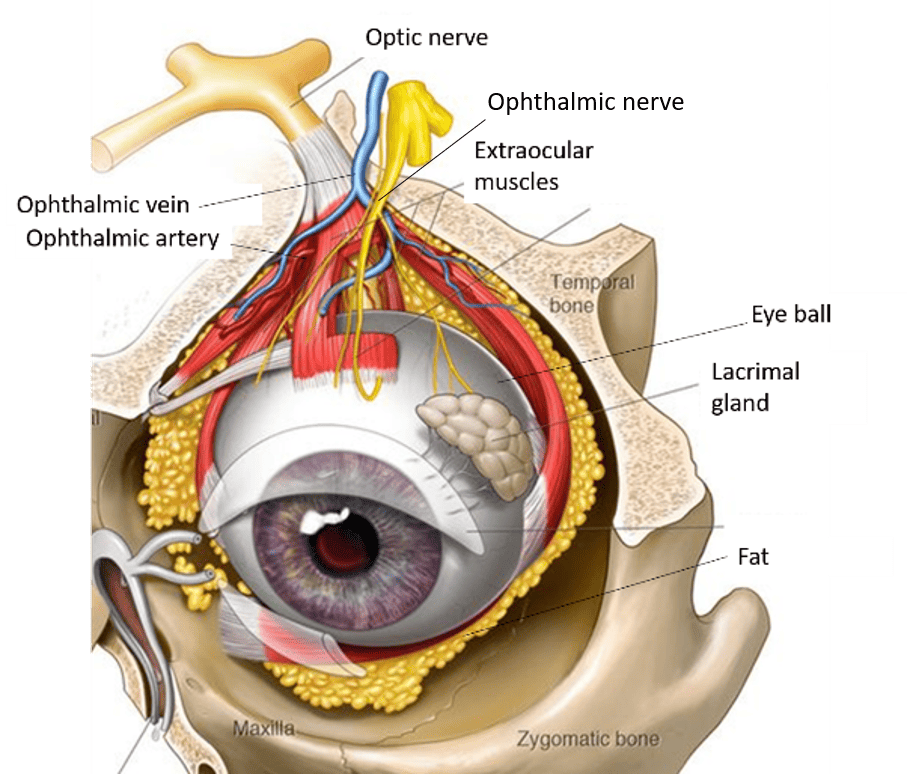

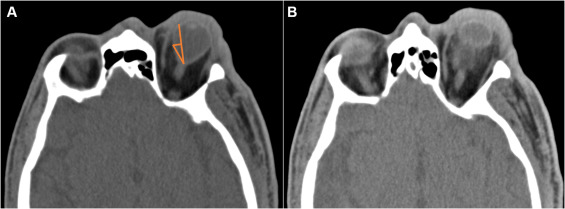

3. The Bony Orbit

The orbit is a deep, pyramidal-shaped bony cavity designed to house and aggressively protect the eyeball and its associated muscles, nerves, and fat.

1. Bones Forming the Orbit

Each bony orbit is formed by a complex jigsaw puzzle of exactly seven bones. (Mnemonic to remember: "Many Friendly Zebras Enjoy Lazy Summer Picnics")

• Maxilla
• Frontal
• Zygomatic
• Ethmoid
• Lacrimal
• Sphenoid
• Palatine

2. Boundaries of the Orbit

• Apex: The deepest point, containing the optic foramen (located in the lesser wing of the sphenoid bone).
• Base (Orbital Rim): The strong outer edge that you can feel on your face.
  • Superiorly: Frontal bone.
  • Medially: Frontal process of the maxilla.
  • Inferiorly: Zygomatic process of the maxilla and the zygomatic bone.
  • Laterally: Zygomatic bone, frontal process of the zygomatic bone, and zygomatic process of the frontal bone.
• Roof (Superior Wall): Mainly the orbital part of the frontal bone. Posteriorly, it is completed by the lesser wing of the sphenoid bone.
• Medial Wall: The thinnest, most fragile wall (the ethmoid portion is called the lamina papyracea or "paper sheet"). Composed of four bones: frontal process of maxilla, lacrimal bone, orbital plate of the ethmoid bone, and a small part of the sphenoid bone (body). The medial walls of the two orbits run parallel to each other.
• Floor (Inferior Wall): Primarily the orbital surface of the maxilla. Anterolaterally, the zygomatic bone. Posteriorly, the orbital process of the palatine bone. (Clinical Note: This is a common site for "Blowout fractures").
• Lateral Wall: The thickest wall. Anteriorly, the zygomatic bone. Posteriorly, the greater wing of the sphenoid bone.

3. Orbital Fissures, Foramina, and their Contents

These openings serve as crucial passageways for nerves, vessels, and other structures entering or leaving the eye socket.

---

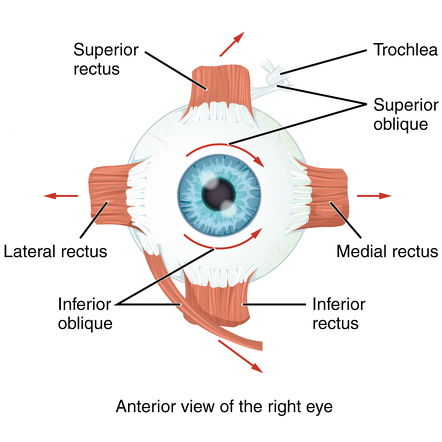

4. Extrinsic (Extraocular) Muscles of the Eye

These specialized muscles precisely control the movement of the eyeball. They act in perfect coordination and are primarily innervated by Cranial Nerves III, IV, and VI. (Mnemonic: LR6-SO4-Rest3 -> Lateral Rectus=CN VI, Superior Oblique=CN IV, Rest=CN III).

1. Origin and Insertion

• Common Origin: All extrinsic muscles (with the strict exception of the inferior oblique) arise from a tough, common tendinous ring called the Annulus of Zinn, which firmly surrounds the optic canal and part of the superior orbital fissure at the apex.
• Inferior Oblique Origin: This unique muscle originates anteriorly from the orbital surface of the maxilla, right near the inferior orbital rim.
• Insertions: They all insert onto the tough sclera of the eyeball.
  • The Recti muscles insert anterior to the equator (the middle line) of the eyeball, pulling the eye toward them.
  • The Oblique muscles insert posterior to the equator, acting from behind to rotate the eye.

2. Muscle Actions and Innervation

The 'primary action' is the most effective movement produced when the eye starts in the primary (straight-ahead) position.

Key Considerations for Muscle Actions

• Recti Muscles: All recti muscles physically pull the eye towards their origin at the apex of the orbit. Because they originate medially to the sagittal axis of the eyeball, all recti (except the pure lateral rectus) have a natural adduction component.
• Oblique Muscles: Because they insert posterior to the equator, they pull from the back.
  • The Superior Oblique passes through a cartilaginous pulley (the trochlea) before inserting. When it pulls, it depresses and intorts the eye (most effective when the eye is adducted).
  • The Inferior Oblique elevates and extorts when the eye is adducted.

3. Laws of Ocular Innervation

• Hering's Law of Equal Innervation: States that synergistic muscles (muscles that work together in both eyes to produce a specific gaze direction) receive exactly equal and simultaneous innervation. Example: When you look to the right, your brain fires an identical, equal electrical signal to both the right lateral rectus and the left medial rectus.
• Sherrington's Law of Reciprocal Innervation: States that when an agonist muscle actively contracts, its opposing antagonist muscle must simultaneously relax. Example: When the medial rectus contracts to turn the eye inward, the brain actively shuts off signals to the lateral rectus so it relaxes and doesn't fight the movement.

---

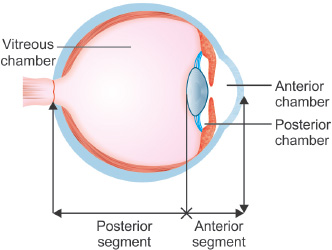

5. Anterior & Posterior Chambers of the Eye

These fluid-filled spaces are crucially important for maintaining intraocular pressure (giving the eye its firm shape) and nourishing the avascular (bloodless) lens and cornea.

1. Aqueous Humor

• Production: Continuously produced by the ciliary processes (specifically the non-pigmented epithelium) of the ciliary body.
• Circulation Pathway:
  1. From the ciliary processes, it is secreted into the posterior chamber (the tiny space between the back of the iris and the front of the lens).
  2. It then flows forward, passing directly through the pupil into the anterior chamber (the larger space between the back of the cornea and the front of the iris).
  3. It circulates here to provide nutrients, then drains into the spongy trabecular meshwork, located deep in the angle between the iris and cornea.
  4. From the trabecular meshwork, it is filtered into the Canal of Schlemm (scleral venous sinus).
  5. Finally, it drains out of the eye entirely into the episcleral veins, returning to the systemic blood circulation.

---

6. Innervation of the Eye

A master summary of the complex nervous supply controlling every aspect of the eye and its associated structures.

1. Motor Innervation

• Oculomotor (CN III): Superior rectus, inferior rectus, medial rectus, inferior oblique, levator palpebrae superioris.
• Trochlear (CN IV): Superior oblique.
• Abducens (CN VI): Lateral rectus.

2. Sensory Innervation (The Trigeminal Nerve - CN V)

All sensory feedback (pain, touch, temperature) from the eye is carried by the Ophthalmic Division (CN V1), which supplies the cornea, conjunctiva, eyelids, forehead, and nasal bridge.

• Lacrimal Nerve: Sensory to the lacrimal gland, upper eyelid, and conjunctiva.
• Frontal Nerve: Divides into the supraorbital and supratrochlear nerves, carrying sensation from the forehead, scalp, and upper eyelid.
• Nasociliary Nerve: The crucial nerve for eyeball sensation! Sensory to the eyeball itself (cornea, iris, ciliary body), conjunctiva, and part of the nasal mucosa. Branches include the long ciliary nerves (direct sensory wires to the iris and extremely sensitive cornea) and the anterior/posterior ethmoidal nerves.

3. Autonomic Innervation

---

7. Arterial Supply and Venous Drainage of the Orbit

1. Arterial Supply

The entire eye and orbit survive on blood delivered by the Ophthalmic artery, a major direct branch of the internal carotid artery.

Key Branches of the Ophthalmic Artery:

• Central Retinal Artery: The most critical branch. It pierces the dura and enters the optic nerve itself, running down its center to exclusively supply the inner layers of the retina. (If this blocks, the retina dies instantly).
• Lacrimal Artery: Supplies the massive lacrimal gland, outer eyelids, and conjunctiva. It also gives off tiny zygomatic branches.
• Posterior Ciliary Arteries (long and short): Supply the choroid (the main vascular bed), ciliary body, and iris. The short posterior ciliary arteries are numerous and supply the choroid directly. The long posterior ciliary arteries run far forward to supply the ciliary body and the iris.
• Anterior & Posterior Ethmoidal Arteries: Pierce the medial wall to supply the ethmoidal air cells and the deep nasal cavity.
• Supraorbital & Supratrochlear Arteries: Exit the orbit anteriorly to supply the skin and muscles of the forehead and scalp.

2. Venous Drainage

Venous blood leaves the eye through valveless veins, which poses a unique infection risk.

• Superior Ophthalmic Vein: Drains backward directly into the massive cavernous sinus located inside the skull. Critically, it communicates anteriorly with the facial vein.
• Inferior Ophthalmic Vein: Drains backward into the cavernous sinus and/or down into the pterygoid venous plexus. It also communicates with the facial vein.

---

8. Other Important Structures: The Lacrimal Apparatus

1. The Lacrimal Gland

• Function: Continuously produces the watery (aqueous) component of tears, vital for washing away debris, providing oxygen to the cornea, and delivering antimicrobial enzymes (lysozyme).
• Location: Tucked safely in the superolateral part of the orbit, within the distinct lacrimal fossa of the frontal bone.

The Complex Innervation of the Lacrimal Gland

The lacrimal gland requires complex "hitchhiking" of nerves to function. It receives sensory, secretomotor (parasympathetic), and sympathetic components.

A. Sensory Innervation (Feeling pain/dryness)

• Pathway: Sensory information from the lacrimal gland (irritation, burning, pain) travels back to the CNS via the lacrimal nerve, which is a branch of the ophthalmic division (V1) of the trigeminal nerve (CN V).

B. Secretomotor (Parasympathetic) Innervation (Making you cry)

This is the primary pathway that stimulates massive fluid secretion (tear production).

1. Origin: Preganglionic parasympathetic neurons originate deep in the superior salivatory nucleus in the pons of the brainstem.
2. Facial Nerve (CN VII): These fibers exit the brainstem traveling inside the facial nerve (CN VII).
3. Greater Petrosal Nerve: They soon branch off from the facial nerve as the greater petrosal nerve.
4. Nerve of the Pterygoid Canal (Vidian Nerve): The greater petrosal nerve joins forces with the deep petrosal nerve (which carries sympathetic fibers) to form a combined cable called the nerve of the pterygoid canal.
5. Pterygopalatine Ganglion: This combined nerve passes into the pterygopalatine ganglion (located in the pterygopalatine fossa). Here, the preganglionic parasympathetic fibers finally synapse with postganglionic parasympathetic neurons.
6. Maxillary Nerve (V2) Hitchhike: The newly formed postganglionic parasympathetic fibers do not stay in the ganglion. Instead, they "hitchhike" by jumping onto the maxillary division (V2) of the trigeminal nerve.
7. Zygomatic Nerve: They travel with the maxillary nerve until they branch off onto the zygomatic nerve.
8. Zygomaticotemporal Nerve: Within the orbit, the zygomatic nerve gives off the zygomaticotemporal nerve.
9. Communicating Branch: A tiny communicating branch from the zygomaticotemporal nerve (carrying the precious postganglionic parasympathetic fibers) jumps over and joins the lacrimal nerve.
10. Lacrimal Gland: Finally, the fibers travel down the lacrimal nerve, reach the lacrimal gland, and trigger a flood of tears.

C. Sympathetic Innervation

• Function: Its exact role in tear production is debated. It primarily constricts blood vessels to the gland and may slightly inhibit watery secretion or stimulate mucous secretion.
• Pathway: Originates in the upper thoracic spinal cord (T1-T2) -> ascends to synapse in the Superior Cervical Ganglion -> postganglionic fibers wrap around the internal carotid artery -> branch off as the Deep Petrosal Nerve -> joins the greater petrosal nerve to form the Nerve of the Pterygoid Canal -> passes straight through the pterygopalatine ganglion (NO synapse!) -> hitchhikes along the exact same V2 -> Zygomatic -> Zygomaticotemporal -> Lacrimal nerve route to reach the gland.

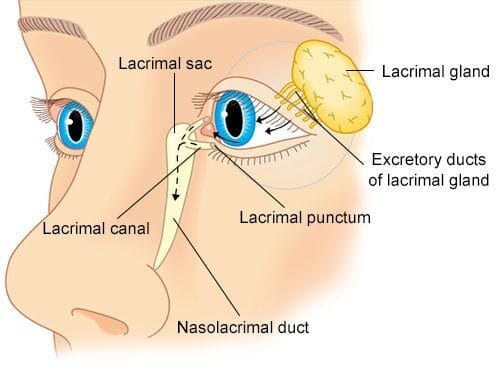

2. The Lacrimal Drainage Apparatus

Tears must be constantly drained to prevent blurry vision and overflow.

• Lacrimal Puncta and Canaliculi: Tiny holes on the inner corner of your eyelids (puncta) suck up tears like a vacuum into small tubes (canaliculi).
• Lacrimal Sac: The tubes dump the tears into a holding tank called the lacrimal sac.
• Nasolacrimal Duct: A large pipe that drains tears from the lacrimal sac straight down through the bone, emptying into the inferior meatus of the nasal cavity inside your nose.

3. The Eyelids (Palpebrae)

• Orbicularis Oculi Muscle: The sphincter muscle that violently closes the eyelids (squinting/blinking). Innervated by the facial nerve (CN VII). (Damage causes Bell's Palsy, meaning the patient cannot close their eye, risking severe corneal ulcers).
• Levator Palpebrae Superioris: The primary muscle that elevates the upper eyelid. Innervated by CN III.
• Müller's Muscle (Superior Tarsal Muscle): A secondary smooth muscle that provides the extra "lift" to widen the palpebral fissure. Innervated by sympathetic fibers.
• Meibomian Glands (Tarsal Glands): Modified sebaceous (oil) glands hidden deep within the tough tarsal plates of the eyelids. They secrete the vital lipid (oil) component of the tear film. This oil layer coats the watery tears, acting as a shield to prevent the tears from evaporating into the air. (Dysfunction causes severe Dry Eye Syndrome).

---

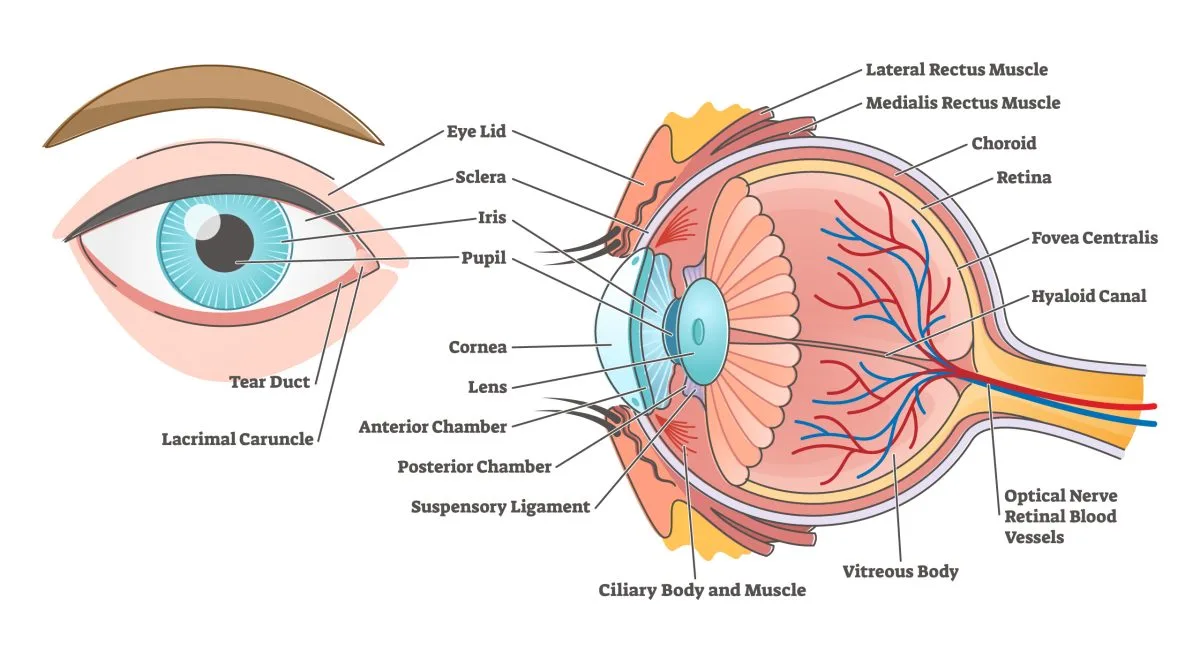

9. The Eye (Structure of the Eyeball)

The eye is an extraordinary sensory organ responsible for capturing photons of light and converting them into electrical thought. It is constructed of three main concentric coats (tunics) and a fluid-filled interior.

A. The Fibrous Coat (Outer Layer)

This is the tough, outermost protective shell. It acts like the steel chassis of a car, providing shape, structural integrity, and resistance to internal pressure.

• Sclera (The White of the Eye):
  • The posterior, highly opaque, and incredibly tough part of the fibrous coat (covers 5/6th of the eye).
  • Composed of densely woven, irregular connective tissue (collagen and elastin).
  • It is continuous posteriorly with the tough dura mater sheath protecting the optic nerve.
  • Lamina Cribrosa: A specialized, sieve-like area of the posterior sclera that is perforated with tiny holes. The delicate axons of the retinal ganglion cells (which form the optic nerve) and central retinal vessels pass through these holes. Clinical Note: Because it is full of holes, the lamina cribrosa is the weakest point of the entire scleral shell. In Glaucoma, high pressure pushes on this weak point, bowing it backward (cupping) and crushing the nerve fibers passing through it.
  • Clinical Note - Staphylomas: These are pathological, localized bulges of a dangerously thinned sclera, often appearing blue because the dark choroid underneath is showing through.
• Cornea (The Clear Window):
  • The anterior, perfectly transparent, and completely avascular (no blood vessels) part of the fibrous coat.
  • Because it is curved, it acts as the primary lens of the eye, refracting (bending) incoming light and contributing the vast majority of the eye's total focusing power.
  • It relies entirely on the aqueous humor behind it and tears in front of it for oxygen and nutrients.
  • It is densely packed with highly sensitive naked nerve endings (from CN V1), making it one of the most pain-sensitive tissues in the entire human body.

B. The Vascular Coat (Uvea - Middle Layer)

The Uveal tract is the dark, incredibly blood-rich, and heavily pigmented middle layer of the eye. Its job is nourishment and light absorption.

• Choroid:
  • The highly vascular, dark brown layer sandwiched between the retina and the sclera.
  • It consists of an outer pigmented layer (to absorb scattered light and prevent glare/reflections inside the eyeball) and a massive inner vascular network.
  • Its primary, critical function is to pump blood to nourish the highly demanding outer layers of the retina (especially the photoreceptors).
• Ciliary Body:
  • A muscular ring located anterior to the choroid, extending from the ora serrata (the jagged edge of the retina) up to the iris.
  • Ciliary Ring: The flat, posterior part.
  • Ciliary Processes: Highly folded, glandular structures that actively filter blood to produce the aqueous humor.
  • Ciliary Muscle: A ring of smooth muscle. Its contraction and relaxation control the tension on the suspensory ligaments holding the lens, completely controlling the process of accommodation (focusing for near vision).
• Iris:
  • The pigmented, contractile diaphragm that forms the beautiful colored part of the eye (blue, brown, green).
  • Contains a central, adjustable hole called the pupil.
  • Regulates the exact amount of light striking the retina via two competing smooth muscles:
    • Sphincter Pupillae: Circular fibers that constrict the pupil like a drawstring bag (miosis) under parasympathetic control.
    • Dilator Pupillae: Radial fibers pulling outward to dilate the pupil (mydriasis) under sympathetic control.

C. The Nervous Coat (Retina - Inner Layer)

This is the delicate, light-sensitive layer where the actual magic of vision happens. It is basically an extension of the brain.

• Anterior Edge: Forms the ora serrata, the jagged anterior margin where the complex nervous retina suddenly ends. The anterior ¼ of the retina past this point is entirely non-receptive (blind) and simply forms a two-layered cellular lining covering the back of the ciliary body and iris.
• Posterior ¾ (Pars Optica Retinae): The active receptor organ. It is loaded with photoreceptors (rods and cones).
• Macula Lutea: A highly specialized, yellow-pigmented oval area near the exact center of the retina. It is responsible for your sharpest, high-definition central vision.
• Fovea Centralis: A tiny, microscopic pit located dead-center within the macula. It contains only cones (no rods whatsoever) and the inner retinal layers are physically pushed aside to allow light a direct path to the cones. This pit provides the absolute highest visual acuity (sharpness) in the eye.
• Optic Disc (The Blind Spot): The bright circular area where all the retinal nerve fibers gather to exit the eyeball as the Optic Nerve (CN II), and where the central retinal artery and vein punch through to enter the eye. Because there is a massive bundle of cables here, there is absolutely no room for photoreceptors. Hence, any light falling on the optic disc is invisible to you—creating a natural "blind spot" in your visual field.

D. Internal Contents of the Eyeball

• Aqueous Humor: A clear, watery fluid that fills the anterior and posterior chambers, maintaining pressure and nourishing the cornea/lens.
• Lens: A highly organized, transparent, biconvex, and elastic crystal structure located directly behind the iris. Its sole purpose is to dynamically change shape (accommodation) to precisely focus incoming light rays exactly onto the fovea. (As we age, the lens loses its elasticity, causing Presbyopia—the inability to focus on near objects, requiring reading glasses).
• Vitreous Humor: A massive, clear, gelatinous mass (like thick Jell-O) that fills the huge vitreous chamber (the entire space posterior to the lens). It maintains the rigid spherical shape of the eyeball and exerts pressure backward, acting like biological glue to hold the fragile retina flat against the choroid.

---

---

Blood Supply and Innervation of the Eyeball

While the orbit has a broader supply, the eyeball itself relies on a highly specific and delicate network of vessels and nerves.

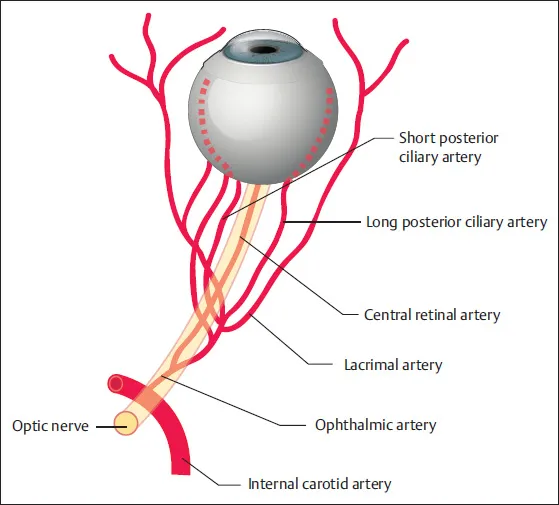

1. Blood Supply of the Eyeball

The primary arterial supply to the eyeball is derived exclusively from the ophthalmic artery, a major branch of the internal carotid artery.

2. Innervation of the Eyeball

The eyeball receives a highly complex triad of sensory, parasympathetic, and sympathetic innervation.

10. The Physiology of Vision

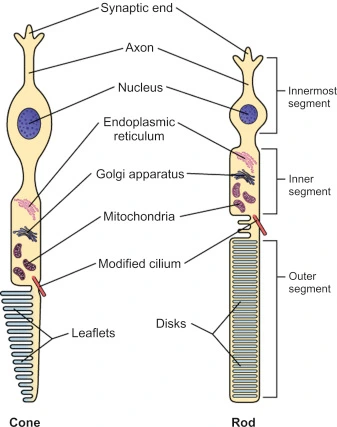

1. What is a Rod / a Cone?

These are the highly specialized photoreceptor cells living in layer 2 of the retina. They act as biological solar panels, capturing light photons and converting them into electrical brain signals.

2. The Visual Pathway

The incredibly complex neurological route light takes from your eye to the back of your brain where you actually "see."

1. Photoreceptors: In the retina, light smashes into rhodopsin/photopsin, activating the rods and cones.
2. Bipolar Neurons: Photoreceptors fire an electrical synapse to the bipolar neurons.
3. Ganglion Cells: Bipolar neurons synapse with the retinal ganglion cells. The long, trailing axons of these ganglion cells gather together, leave the retina, and bundle into the massive Optic Nerve (CN II).
4. Optic Chiasm: The optic nerves from both the left and right eyes travel backward and converge at the optic chiasm.
   • The Decussation Rule: Fibers from the nasal (medial) half of each retina physically cross over (decussate) to the opposite side of the brain. Fibers from the temporal (lateral) half of each retina stay on the same side (uncrossed).
   • The Result: This brilliant arrangement ensures that everything you see in the left half of your visual field (captured by both eyes) is sent exclusively to the right side of the brain, and vice-versa.
   • Clinical Correlate: A large pituitary tumor pressing up on the optic chiasm will crush the crossing nasal fibers, causing "Bitemporal Hemianopsia" (the patient goes completely blind in their outer peripheral vision on both sides, giving them tunnel vision).
5. Optic Tract: After leaving the chiasm, the newly sorted bundles of fibers are called the optic tracts. Each tract now contains complete information corresponding to the contralateral (opposite) visual field.
6. Lateral Geniculate Nucleus (LGN): Located in the Thalamus. Most fibers in the optic tracts synapse here. The LGN acts as a heavy-duty relay station, sorting and organizing visual data before sending it to the cortex.
7. Optic Radiations (Geniculocalcarine Tract): From the LGN, fibers fan out massively deep inside the brain, forming the optic radiations, which project backward toward the occipital lobe.
8. Primary Visual Cortex: The radiations terminate in the primary visual cortex (Brodmann area 17) located at the very back of the skull in the occipital lobes. This is where the electrical signals are finally decoded, consciously perceived, and assembled into a recognized image.

3. Accommodation (Focusing the Lens)

Accommodation is the dynamic process by which the eye physically changes the optical power (thickness) of its lens to maintain a sharply focused image as an object moves closer or farther away.

4. How the Light and Blink Reflexes Work

---

11. Clinical Correlates and Ophthalmic Emergencies

A deep dive into severe pathological conditions affecting the eye, their mechanisms, and clinical presentations.

---

References
