Organs of Special Senses

Nursing Lecture Notes - Organs of Special Senses (Comprehensive)

Organs of Special Senses

The special senses are how our body perceives specific types of information from the external environment. Each special sense has specialised sensory receptors that detect a particular type of stimulus (like light, sound waves, chemicals) and convert it into nerve impulses that are sent to the brain for interpretation.

Our ability to perceive the world around us is made possible by our sensory systems. These systems can be divided into two main categories:

  • General Senses: Have receptors that are widely distributed throughout the body (in the skin, muscles, joints, and organs). They include touch, pressure, pain, temperature, and proprioception (sense of body position).
  • Special Senses: Have complex sensory organs and receptors that are localized in the head. They are vision, hearing, equilibrium (balance), taste (gustation), and smell (olfaction).

All senses rely on sensory receptors to detect a specific stimulus (e.g., light, sound, chemicals). This stimulus is then converted into a nerve impulse through a process called transduction. This nerve impulse is transmitted via cranial nerves to specific areas of the brain, where the information is integrated, coordinated, and ultimately interpreted, allowing for perception.

Learning Objectives

Upon completion of this lecture, students will be able to:

  • Differentiate between special senses and general senses.
  • Describe the anatomy of the outer, middle, and inner ear.
  • Explain the complete physiological pathway of hearing, from sound wave to perception.
  • Describe the roles of the vestibule and semicircular canals in maintaining both static and dynamic equilibrium.
  • Identify the structures of the eye, including its three layers, internal chambers, and accessory organs.
  • Explain the physiology of vision, including light refraction, accommodation, and the neural pathway to the brain.
  • Describe the anatomy of the gustatory and olfactory receptors.
  • Explain the physiology of taste (gustation) and smell (olfaction) and describe their interrelationship.
  • Briefly describe the role of the skin as a major sensory organ for general senses.
  • Identify common disorders and age-related changes affecting the special senses.

The Ear: Hearing and Equilibrium

The ear is a complex organ responsible for two distinct but related special senses: hearing and balance. The receptors for both senses are located deep within the inner ear and are supplied by the vestibulocochlear nerve (Cranial Nerve VIII). All structures of the ear, except the external auricle, are housed within the petrous part of the temporal bone for protection.

The ear is the organ of hearing, and it also plays a vital role in balance.

Main Parts:

The ear has three main parts:

  • The outer ear – collects sound waves.
  • The middle ear – transmits sound vibrations.
  • The inner ear – converts sound vibrations into nerve impulses (for hearing) and detects movement and position (for balance).

Anatomy of the Ear

The ear is divided into three distinct parts: the outer ear, middle ear, and inner ear.

Part 1: The Outer Ear

The outer ear collects sound waves and channels them inward. It consists of:

  • Auricle (or Pinna): The visible, shell-shaped part of the ear on the outside of the head. It is composed of elastic cartilage covered with skin. Its function is to funnel sound waves into the ear canal.
  • External Acoustic Meatus (Auditory Canal): A slightly S-shaped tube (~2.5 cm long) that extends from the auricle to the eardrum. It is lined with skin containing hair follicles and ceruminous glands. These modified sweat glands secrete cerumen (earwax), a sticky substance that helps trap foreign materials like dust and insects and contains protective substances like lysozyme to prevent microbial growth.

    • Function: To collect sound waves and channel them down the auditory canal to the eardrum. It also provides basic protection.

Part 2: The Middle Ear (Tympanic Cavity)

The middle ear is a small, air-filled cavity within the temporal bone. Its function is to transmit and amplify sound vibrations from the outer ear to the inner ear.

Location: An air-filled space inside the temporal bone, between the outer ear and the inner ear.

Main Parts:

  • Tympanic Membrane (Eardrum): A thin, translucent membrane stretched across the end of the auditory canal. It vibrates when sound waves strike it.
  • Auditory Ossicles: The three smallest bones in the body, which form a chain across the middle ear. They are, from outer to inner:
    • Malleus (Hammer): Its "handle" is attached to the tympanic membrane.
    • Incus (Anvil): The middle bone, which articulates with the malleus and stapes.
    • Stapes (Stirrup): Its footplate fits into the oval window, a membrane-covered opening that leads to the inner ear.
  • Pharyngotympanic Tube or Auditory (Eustachian) Tube: A tube that connects the middle ear to the nasopharynx. Its function is to equalize the air pressure on both sides of the tympanic membrane, allowing it to vibrate freely. Swallowing or yawning opens this tube, which is why your ears may "pop" during changes in altitude.

Functions:

  • Transmit and Amplify Sound: The auditory ossicles transmit the vibrations from the eardrum across the middle ear to the inner ear. They also amplify (increase the strength of) the vibrations, helping to move the fluid in the inner ear.
  • Equalize Pressure: The pharyngotympanic tube opens (e.g., when swallowing or yawning) to allow air to enter or leave the middle ear, equalizing the air pressure on both sides of the eardrum. This is important for the eardrum to vibrate properly. If the pressure is unequal (e.g., during rapid changes in altitude like in a plane or on a mountain), your ears might feel "blocked" until the tube opens.

Clinical Correlation: In children, the auditory tube is shorter and more horizontal, which can allow bacteria from a throat infection to travel easily to the middle ear, causing a middle ear infection (otitis media).

Part 3: The Inner Ear (Labyrinth)

The inner ear houses the complex mechanoreceptors for hearing and equilibrium. It consists of two main parts:

  • Bony Labyrinth: A system of twisting channels and cavities within the temporal bone. It is filled with a fluid called perilymph.
  • Membranous Labyrinth: A series of membranous sacs and ducts suspended within the perilymph of the bony labyrinth. It is filled with a different fluid called endolymph.

The bony labyrinth is subdivided into three regions:

  • The Cochlea: A snail-shaped, coiled bony chamber responsible for hearing. Internally, it is divided into three fluid-filled channels. The central channel, the cochlear duct, contains the spiral organ (organ of Corti), which houses the receptors for hearing—the hair cells.
  • The Vestibule: The central egg-shaped cavity of the bony labyrinth. It contains two membranous sacs, the saccule and the utricle, which house the receptors for static equilibrium (responding to gravity and linear acceleration).
  • The Semicircular Canals: Three bony canals oriented in the three planes of space (anterior, posterior, and lateral). They house the receptors for dynamic equilibrium (responding to rotational or angular movements of the head).

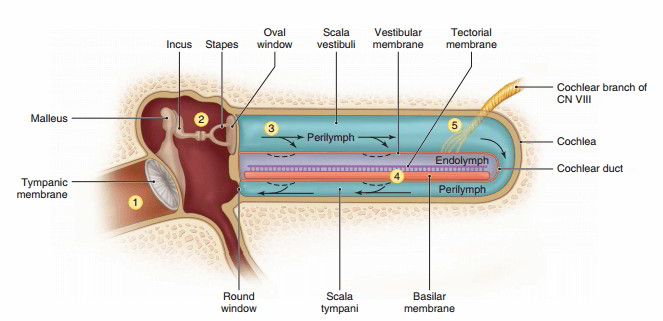

The Physiology of Hearing

Hearing is the process of converting sound waves in the air into nerve impulses that the brain can interpret.

The Pathway of Sound:

  1. Collection: Sound waves are collected by the auricle and funneled into the external auditory canal.
  2. Vibration of Eardrum: The sound waves cause the tympanic membrane to vibrate at the same frequency.
  3. Amplification by Ossicles: The vibration is transferred to the malleus, then the incus, and finally the stapes. The lever-like action of the ossicles amplifies the pressure of the vibration by about 20 times.
  4. Pressure Wave in Inner Ear: The stapes footplate pushes on the oval window, creating pressure waves in the perilymph of the cochlea.
  5. Stimulation of Hair Cells: The pressure waves travel through the perilymph, causing the basilar membrane within the cochlea to vibrate. This vibration pushes the delicate hair cells of the spiral organ against the overlying tectorial membrane, causing their stereocilia (hairs) to bend.
  6. Transduction: The bending of the stereocilia opens mechanically-gated ion channels, leading to the generation of a nerve impulse.
  7. Neural Pathway: The nerve impulse is transmitted along the cochlear branch of the vestibulocochlear nerve (CN VIII) to the auditory cortex in the temporal lobe of the brain, where the sound is perceived.
  8. Pressure Relief: The pressure waves are dissipated at the round window, a membrane at the end of the cochlea, which prevents the waves from echoing back and causing damage.

Physiology of Hearing (How We Hear):

  1. Sound Waves Collected: The auricle collects sound waves and directs them into the auditory canal.
  2. Eardrum Vibrates: Sound waves strike the tympanic membrane, causing it to vibrate.
  3. Vibrations Transmitted: The vibrating eardrum moves the malleus, which moves the incus, which moves the stapes. The stapes footplate vibrates in the oval window of the inner ear.
  4. Fluid Waves Created: The vibration of the stapes in the oval window creates waves in the fluid (perilymph and endolymph) inside the cochlea.
  5. Hair Cells Stimulated: These fluid waves cause movement of the basilar membrane and bend the hair cells in the spiral organ. The hair cells are the sensory receptors for hearing.
  6. Nerve Impulses Generated: When the hair cells bend, they generate nerve impulses.
  7. Signals to the Brain: These nerve impulses travel along the cochlear nerve (part of the vestibulocochlear nerve, cranial nerve VIII) to the brainstem and then to the auditory area in the temporal lobe of the cerebral cortex.
  8. Sound Perceived: The brain interprets these nerve impulses as sound. Different pitches of sound stimulate different hair cells in the cochlea, and the loudness depends on the strength of the vibrations.

The Physiology of Equilibrium (Balance)

Equilibrium is the sense that allows us to monitor the position and movement of our head in space.

Static Equilibrium (Sensing Gravity and Linear Motion):

  • Receptors are located in the maculae of the utricle and saccule.
  • These receptors contain hair cells whose stereocilia are embedded in a jelly-like membrane containing tiny calcium carbonate crystals called otoliths ("ear stones").
  • When the head tilts, gravity pulls on the otoliths, which in turn bend the hair cells. This generates a nerve impulse that informs the brain about the position of the head relative to gravity. This also detects straight-line acceleration and deceleration.

Dynamic Equilibrium (Sensing Rotation):

  • Receptors are located in the crista ampullaris within the enlarged base (ampulla) of each semicircular canal.
  • The hair cells in the crista have their stereocilia embedded in a gelatinous cap called the cupula.
  • When the head rotates, the endolymph fluid inside the membranous ducts lags behind due to inertia. This fluid movement pushes against the cupula, bending the hair cells and generating a nerve impulse.
  • Because the three canals are in different planes, the brain can detect rotational movement in any direction.

Neural Pathway: Impulses from both static and dynamic equilibrium receptors travel along the vestibular branch of the vestibulocochlear nerve (CN VIII) to the brainstem and cerebellum. The cerebellum coordinates this information with input from the eyes and stretch receptors in muscles and joints to maintain balance and body position.

Physiology of Balance (How We Balance):

The vestibule and semicircular canals work together to detect movement and position.

  • Vestibule (Utricle and Saccule): These sacs contain hair cells embedded in a gel-like material with tiny calcium carbonate crystals (otoliths). When you move your head in a straight line (like accelerating in a car) or change the position of your head relative to gravity (like tilting your head), the otoliths shift, bending the hair cells.
  • Semicircular Canals: The loops contain fluid (endolymph) and hair cells in enlarged areas called ampullae. When you rotate your head (like spinning), the fluid in the canals moves, bending the hair cells in the ampullae.
  • Nerve Impulses Generated: Bending of the hair cells in the vestibule and semicircular canals generates nerve impulses.
  • Signals to the Brain: These impulses travel along the vestibular nerve (part of the vestibulocochlear nerve, cranial nerve VIII) to the brainstem and then mainly to the cerebellum.
  • Balance Maintained: The brain (cerebellum) receives information about movement and position from the ears, eyes, and stretch receptors in muscles and joints. It uses this information to adjust muscle activity and maintain balance and posture.

The Chemical Senses: Taste and Smell

Taste (gustation) and smell (olfaction) are chemical senses because their receptors are chemoreceptors that respond to chemicals dissolved in an aqueous solution (saliva for taste, mucus for smell). These two senses are closely linked.

Sense of Taste (Gustation)

The tongue is the main organ for the sense of taste, also called gustation.

Location: The sensory receptors for taste are called taste buds. Most taste buds are located on tiny bumps on the tongue's surface called papillae. Some are also found in the lining of the mouth and pharynx.

Physiology of Taste:

  1. Chemicals Enter Mouth: Chemicals from food and drink enter the mouth.
  2. Chemicals Dissolve: These chemicals must dissolve in saliva to be tasted.
  3. Taste Buds Stimulated: Dissolved chemicals stimulate the taste buds (chemoreceptors).
  4. Nerve Impulses Generated: Stimulation of the taste buds generates nerves impulses.
  5. Signals to the Brain: These impulses travel along nerves (facial, glossopharyngeal, and vagus nerves - cranial nerves VII, IX, X) to the brainstem and then to the taste area in the cerebral cortex.
  6. Taste Perceived: The brain interprets these impulses as different tastes. There are traditionally considered to be four basic tastes: sweet, sour, salty, and bitter, although others like umami (savoury) are also recognized. Taste is strongly influenced by smell.

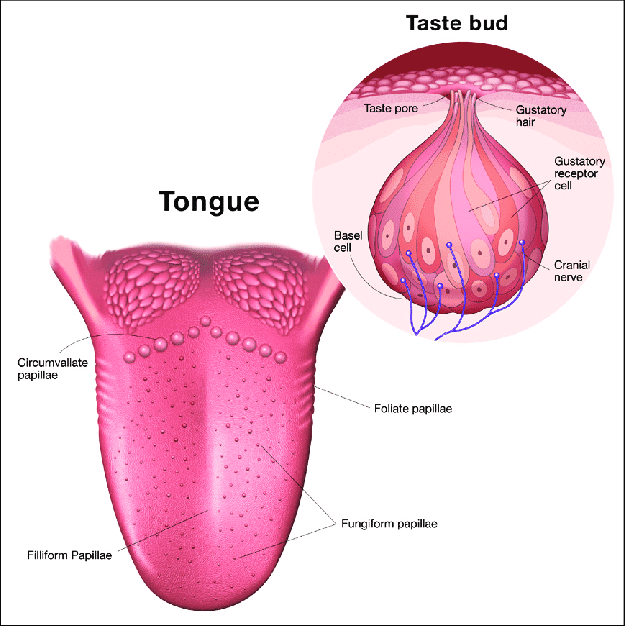

Taste Buds: The sensory organs for taste are the taste buds, most of which are located on the tongue in peg-like projections of the mucosa called papillae.

Types of Papillae:

  • Vallate (Circumvallate) Papillae: Large papillae arranged in a V-shape at the back of the tongue.
  • Fungiform Papillae: Mushroom-shaped papillae scattered over the entire tongue surface.
  • Filiform Papillae: The smallest and most numerous; they provide friction to help grip food but do not contain taste buds.

Five Basic Taste Sensations: Humans can distinguish five basic tastes: sweet (sugars), sour (acids), salty (metal ions like Na⁺), bitter (alkaloids), and umami (the "savory" taste from amino acids like glutamate). All other "flavors" are a combination of these tastes, plus input from olfactory receptors.

Neural Pathway: Impulses are transmitted by three cranial nerves: the facial nerve (VII) from the anterior two-thirds of the tongue, the glossopharyngeal nerve (IX) from the posterior third, and the vagus nerve (X) from the epiglottis and pharynx. These impulses are relayed through the medulla and thalamus to the gustatory cortex in the parietal lobe.

Sense of Smell (Olfaction)

The nose is the organ for the sense of smell, also called olfaction.

Location: The sensory receptors for smell are special nerve endings (chemoreceptors) located in the mucous membrane at the very top of the nasal cavity (near the cribriform plate of the ethmoid bone).

Physiology of Smell:

  1. Odour Molecules Enter: When you inhale air, small molecules that carry smells (odour molecules) enter the nasal cavity.
  2. Molecules Dissolve: These odour molecules dissolve in the mucus covering the lining at the top of the nasal cavity.
  3. Chemoreceptors Stimulated: The dissolved odour molecules stimulate the chemoreceptors (olfactory nerve endings).
  4. Nerve Impulses Generated: Stimulation of the chemoreceptors generates nerve impulses.
  5. Signals to the Brain: These impulses travel along the olfactory nerves (cranial nerve I) directly to the brain (olfactory bulb and then to the olfactory area in the temporal lobe of the cerebral cortex).
  6. Smell Perceived: The brain interprets these nerve impulses as different smells. The sense of smell is closely linked to the sense of taste.

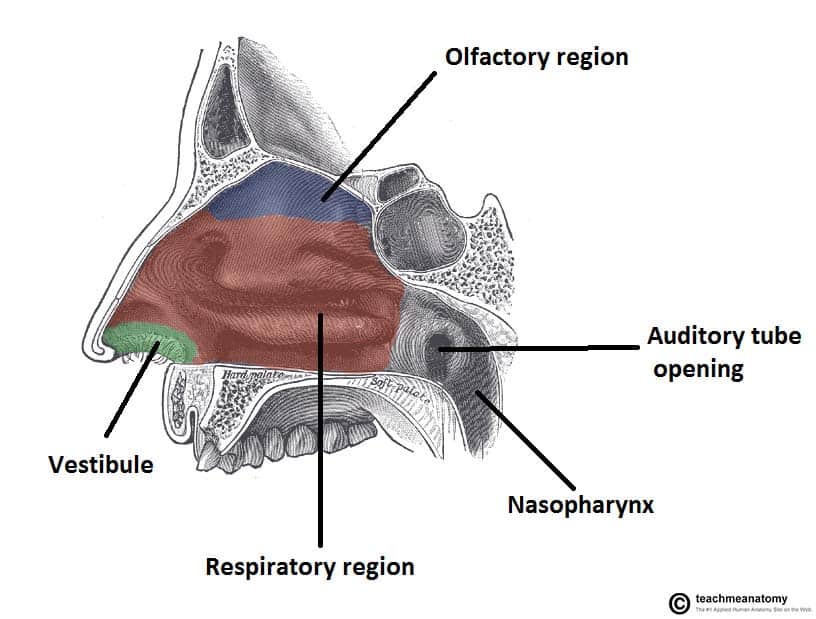

Olfactory Epithelium: The sensory organ for smell is the olfactory epithelium, located in the roof of the nasal cavity. It contains millions of olfactory sensory neurons (chemoreceptors).

Neural Pathway: The axons of the olfactory sensory neurons form the filaments of the olfactory nerve (CN I). They pass through the cribriform plate of the ethmoid bone to synapse in the olfactory bulb. From there, impulses are sent via the olfactory tract to the olfactory cortex in the temporal lobe.

Adaptation: The olfactory system adapts quickly. When continuously exposed to an odor, perception of that odor decreases and can stop within a few minutes.

Anosmia: The loss of the sense of smell, often due to inflammation of the nasal mucosa from a cold, allergies, or head trauma.

The Eye and the Sense of Vision

The eye is the organ of sight, containing photoreceptors that respond to light.

Anatomy of the Eye

Part 1: Accessory Structures of the Eye

These structures protect the eye and aid in its function.

  • Eyebrows and Eyelids (Palpebrae): Protect the eye from foreign objects, perspiration, and excessive light.
  • Eyelashes: Trigger reflex blinking when touched.
  • Conjunctiva: A transparent mucous membrane that lines the eyelids and covers the anterior surface of the eyeball (over the white of the eye). It produces lubricating mucus.
  • Lacrimal Apparatus: Produces and drains tears.
    • Lacrimal Glands: Located above the outer part of the eye. Produce tears.
    • Lacrimal Ducts: Carry tears across the eye surface.
    • Lacrimal Sac and Nasolacrimal Duct: Collect tears near the inner corner of the eye and drain them into the nasal cavity.

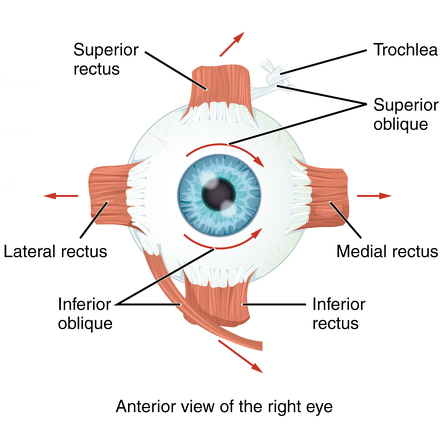

  • Extrinsic Eye Muscles: Six strap-like muscles that control the movement of the eyeball, allowing us to scan our environment. They are innervated by the Oculomotor (III), Trochlear (IV), and Abducens (VI) cranial nerves.

    • Part 2: Structure of the Eyeball

    The eyeball itself is a slightly irregular sphere composed of three layers or tunics.

  • Outer layer (Fibrous Layer): Tough and protective. Made of two parts:
    • Sclera: The white part of the eye. It's a strong fibrous membrane that maintains the eye's shape and provides attachment for eye muscles.
    • Cornea: The clear, front part of the eye, like a transparent window. Light enters the eye through the cornea. The cornea is curved and helps bend (refract) light rays. It has no blood vessels but is rich in nerve endings (very sensitive).
  • Middle layer (Vascular Layer or Uvea): Contains many blood vessels and pigment cells. Made of three parts:
    • Choroid: The layer behind the retina. It contains many blood vessels that supply nutrients and oxygen to the retina. Its dark pigment absorbs scattered light inside the eye.
    • Ciliary Body: Located at the front of the choroid. Contains the ciliary muscle (a smooth muscle that changes the shape of the lens) and produces the fluid that fills the front of the eye.
    • Iris: The colored part of the eye around the pupil. It's a muscular structure that controls the size of the pupil, regulating how much light enters the eye. It has circular muscles (that constrict the pupil) and radiating muscles (that dilate the pupil).
  • Inner layer (Nervous Layer): The retina.
    • Retina: The light-sensitive lining at the back of the eye. It contains the photoreceptor cells (rods and cones) that detect light. Rods work in dim light (black and white vision), and cones work in bright light (color vision and sharp detail). Nerve fibres from the photoreceptors gather to form the optic nerve.
    • Optic Disc (Blind Spot): The area where the optic nerve leaves the eye. It has no photoreceptors, so you cannot see light that falls on this spot.
    • Macula Lutea: A small yellowish area in the retina responsible for sharp central vision. The central part of the macula, the fovea centralis, has the highest concentration of cones and provides the sharpest vision.

    • Part 3: Internal Chambers and Fluids

    • Lens: A biconvex, transparent, flexible structure that can change shape to precisely focus light on the retina.
    • Anterior Segment: The space in front of the lens, filled with a clear fluid called aqueous humor.
    • Posterior Segment: The space behind the lens, filled with a gel-like substance called vitreous humor.

    Physiology of Vision

    Vision requires the focusing of light onto the retina and the subsequent conversion of that light energy into nerve impulses.

    1. Refraction and Focusing of Light:

  • Light rays are bent, or refracted, as they pass through the cornea, aqueous humor, lens, and vitreous humor.
  • The lens fine-tunes the focus by changing its shape, a process called accommodation.
    • Distant Vision (>6 meters): The ciliary muscle is relaxed, and the lens is flattened by tension in the suspensory ligaments.
    • Near Vision (<6 meters): To focus on a close object, the eye makes three adjustments (the accommodation reflex):
      • Accommodation of the Lens: The ciliary muscle contracts, which slackens the suspensory ligaments, allowing the elastic lens to bulge and become more convex, increasing its refractive power.
      • Constriction of the Pupils: The iris constricts the pupil to prevent divergent light rays from entering the eye.
      • Convergence of the Eyeballs: The extrinsic muscles rotate the eyeballs medially to keep the object focused on the fovea of both eyes.

    2. Phototransduction:

    • When light hits the retina, it stimulates the photoreceptors (rods and cones).
    • The light energy causes a chemical change in light-sensitive pigments within these cells (e.g., rhodopsin in rods).
    • This chemical change triggers a series of reactions that ultimately generate a nerve impulse.

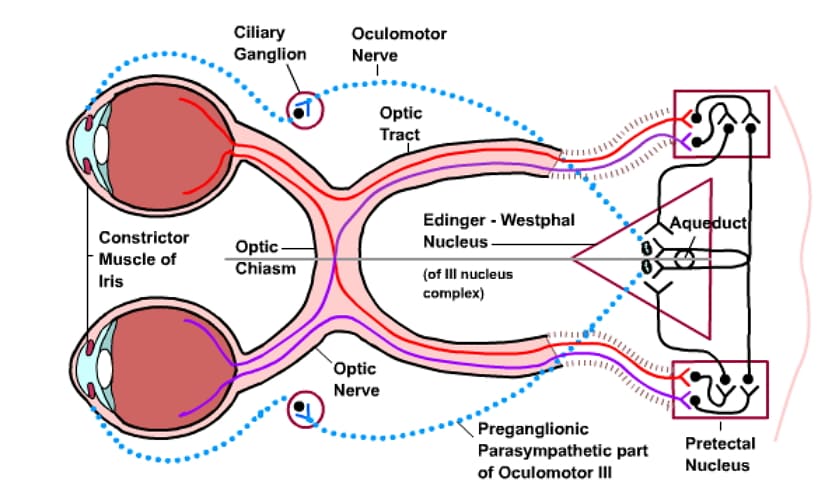

    3. Neural Pathway of Vision:

    • Impulses from the photoreceptors are passed to bipolar cells and then to ganglion cells.
    • The axons of the ganglion cells converge to form the optic nerve (CN II).
    • At the optic chiasma, fibers from the medial aspect of each eye cross over to the opposite side.
    • The fibers continue as the optic tracts to the thalamus, and finally to the primary visual cortex in the occipital lobe of the brain, where the visual information is interpreted.

    Physiology of Sight (How We See):

    1. Light Enters the Eye: Light rays from objects enter the eye through the cornea.
    2. Light is Bent (Refracted): The cornea and the lens bend the light rays to focus them onto the retina. The amount of bending by the lens is adjusted (accommodation) to focus on objects at different distances.
    3. Pupil Size Adjusted: The iris controls the size of the pupil (the opening), regulating how much light enters the eye. In bright light, the pupil constricts (gets smaller); in dim light, it dilates (gets larger). This protects the retina and helps vision in different light levels.
    4. Light Hits the Retina: The focused light falls on the photoreceptor cells (rods and cones) in the retina.
    5. Chemicals Change: Light causes chemical changes in the pigments within the rods and cones.
    6. Nerve Impulses Generated: These chemical changes trigger the photoreceptors to generate nerve impulses.
    7. Signals to the Brain: The nerve impulses travel along the nerve fibres from the retina, which gather to form the optic nerve (cranial nerve II). The optic nerves from both eyes meet at the optic chiasm, where some fibres cross over. The signals then continue along the optic tracts to the brain.
    8. Vision Perceived: The nerve impulses reach the visual area in the occipital lobe of the cerebral cortex, where they are interpreted as a visual image. The brain also receives information from both eyes (binocular vision) to perceive depth and distance.

    • The Skin: The Organ of Touch (A General Sense)

    While not a "special sense," the skin (integumentary system) is the body's largest sensory organ and is crucial for our interaction with the environment. It contains a wide variety of receptors for the general senses.

    Structure: Consists of two main layers: the outer epidermis and the inner dermis. The dermis is rich with sensory nerve endings.

    Sensory Receptors in the Dermis:

    • Receptors for touch (e.g., Meissner's corpuscles).
    • Receptors for pressure (e.g., Pacinian corpuscles).
    • Receptors for temperature (thermoreceptors).
    • Receptors for pain (nociceptors).

    Function: Nerve impulses generated by these receptors are transmitted via spinal and cranial nerves to the brain's somatosensory cortex (in the parietal lobe) for interpretation.

    Common Disorders and Age-Related Changes

    Hearing & Balance:

  • Hearing: Presbycusis (age-related hearing loss) is common. It usually involves damage to the sensory hair cells in the cochlea. This makes it harder to hear, especially high-pitched sounds and to understand speech in noisy environments. Earwax may also become harder to clear.
    • Otitis Media: Middle ear infection.
    • Tinnitus: A ringing or clicking sound in the ears in the absence of auditory stimuli.
    • Presbycusis: Age-related hearing loss, particularly for high-pitched sounds.

    Vision:

    • Refractive Errors:
      • Myopia (Nearsightedness): Distant objects are blurred because the eyeball is too long or the lens is too strong. Corrected with a concave lens.
      • Hyperopia (Farsightedness): Near objects are blurred because the eyeball is too short or the lens is too weak. Corrected with a convex lens.
    • Glaucoma: A condition where the drainage of aqueous humor is blocked, causing a dangerous increase in intraocular pressure that can damage the optic nerve.
    • Cataract: A clouding of the lens, which leads to blurred vision.
    • Presbyopia: Age-related loss of accommodation, making it difficult to focus on near objects.
    • Color Blindness: A genetic condition, more common in males, due to a deficiency in one or more types of cone pigments.
    • Strabismus: "Crossed eyes," resulting from weakness or improper coordination of the extrinsic eye muscles.
  • Sight:
    • The lens becomes less elastic and stiffer, making it harder to focus on near objects (presbyopia). Reading glasses are often needed.
    • The lens can become cloudy (cataract), making vision blurred and less clear, especially in dim light.
    • Changes in the retina (like in macular degeneration or diabetic retinopathy if diabetes is present) can affect sharp vision.
    • The iris may become less efficient at controlling pupil size, making it harder to adjust to changes in light.
    • Glaucoma (increased pressure inside the eye) is more common with age and can damage the optic nerve, leading to vision loss.

    • Smell & Taste:

    The number of chemoreceptors declines with age, leading to a diminished sense of both smell and taste.

  • The number of sensory receptors for smell and taste may decrease with age. This can lead to a reduced ability to smell and taste, making food seem less flavourful. This can affect appetite and nutrition.

    • Common Deviations from Normal Structure and Function (Disorders)

    Problems in the organs of special senses can significantly impact a person's quality of life. Deviations from normal structure and function lead to specific disorders:

    Ear Disorders (Affecting Hearing and Balance):

  • Conductive Hearing Loss: Problems in the outer or middle ear that prevent sound waves from reaching the inner ear effectively.
    • Causes: Blockage of the auditory canal (earwax, foreign body, infection - external otitis), problems with the eardrum (perforation), problems with the ossicles (otosclerosis - abnormal bone growth fixing the stapes), fluid in the middle ear ("glue ear").
  • Sensorineural Hearing Loss: Problems in the inner ear (cochlea) or the nerve pathway to the brain.
    • Causes: Damage to the hair cells in the cochlea (ageing - presbycusis, exposure to loud noise, certain medications), viral infections (mumps, measles), Ménière's disease (affects fluid in inner ear, causes vertigo and hearing loss), damage to the vestibulocochlear nerve or auditory area in the brain.
  • Infections:
    • External Otitis: Infection of the auditory canal ("swimmer's ear").
    • Acute Otitis Media: Infection of the middle ear, often spreading from a throat infection. Causes earache and can sometimes cause the eardrum to rupture.
    • Chronic Otitis Media: Long-term middle ear infection, often with a perforated eardrum and discharge. Can lead to hearing loss and spread of infection.
  • Labyrinthitis: Inflammation of the inner ear structures (cochlea and vestibule), often caused by infection. Can cause hearing loss and severe dizziness/vertigo.
  • Balance Disorders: Problems with the vestibule, semicircular canals, vestibular nerve, or parts of the brain involved in balance.
    • Causes: Labyrinthitis, Ménière's disease, certain head injuries, nerve problems, stroke, some medications.
    • Symptoms: Vertigo (feeling of spinning), dizziness, nausea, loss of balance.
  • Barotrauma: Damage to the eardrum or middle ear caused by pressure differences between the middle ear and the outside (e.g., during air travel or diving) if the pharyngotympanic tube doesn't equalize pressure properly.
  • Tumours: Growths in the ear or related structures, can affect hearing, balance, or nerve function.

    • Eye Disorders (Affecting Sight):

  • Refractive Errors: Problems with how the eye bends (refracts) light, so that light is not focused sharply on the retina.
    • Myopia (Nearsightedness): Light is focused in front of the retina, making distant objects blurry. Corrected with concave lenses (glasses/contacts).
    • Hyperopia (Farsightedness): Light is focused behind the retina, making near objects blurry. Corrected with convex lenses.
    • Astigmatism: Uneven curvature of the cornea or lens, causing blurred vision at all distances. Corrected with cylindrical lenses.
    • Presbyopia: Age-related loss of the lens's ability to change shape for focusing on near objects. Corrected with reading glasses.
  • Cataract: Clouding of the lens, which blocks light from reaching the retina. Causes blurred vision, especially in dim light. Often age-related.
  • Glaucoma: Increased pressure inside the eyeball, usually due to problems with the drainage of aqueous fluid. High pressure can damage the optic nerve, leading to progressive loss of vision (often peripheral vision first).
  • Retinopathies: Damage to the retina, often affecting the blood vessels.
    • Diabetic Retinopathy: Caused by diabetes, damaging retinal blood vessels and leading to vision loss.
    • Hypertensive Retinopathy: Caused by high blood pressure, damaging retinal blood vessels.
    • Retinopathy of Prematurity (ROP): Abnormal blood vessel development in the retina of premature babies, can lead to vision loss.
    • Vascular Occlusions: Blockage of retinal arteries or veins, causing sudden vision loss.
  • Retinal Detachment: The retina separates from the underlying choroid. This can cause sudden loss of vision (like a curtain coming down).
  • Inflammatory Conditions:
    • Conjunctivitis: Inflammation of the conjunctiva (lining of eyelids and eyeball), often called "pink eye". Can be caused by infection, allergies, or irritants.
    • Keratitis/Corneal Ulcer: Inflammation or open sore on the cornea, often due to infection or injury. Can be very painful and affect vision.
    • Blepharitis: Inflammation of the eyelid margins.
  • Infections: Viral (herpes simplex), bacterial, fungal, or parasitic.
  • Strabismus (Squint or Cross-eye): Occurs when the eyes are not aligned and look in different directions. Caused by weakness or nerve problems affecting the eye muscles. Can lead to double vision or the brain ignoring input from one eye.
  • Tumours: Growths in the eye or related structures, can affect vision. Retinoblastoma is a rare malignant tumour in children. Malignant melanoma can occur in the choroid in adults.

    • Understanding these special senses and their potential deviations from normal is essential for recognizing and addressing problems related to a person's ability to interact with and understand their environment.

    Revision Questions for Page 8 (Special Senses):

    1. What are the five traditional special senses?
    2. Name the three main parts of the ear.
    3. Describe the journey of a sound wave from the auricle to the inner ear, mentioning the structures involved.
    4. What is the function of the auditory ossicles?
    5. How does the pharyngotympanic tube help maintain hearing?
    6. Which part of the inner ear is responsible for hearing? Which parts are responsible for balance?
    7. How do the vestibule and semicircular canals work with the brain (cerebellum) to maintain balance?
    8. Name the three layers of the eyeball wall.
    9. What are the functions of the cornea and the lens?
    10. Explain the process of accommodation.
    11. How does the iris control the amount of light entering the eye?
    12. Describe the role of rods and cones in vision.
    13. What are the functions of the lacrimal apparatus?
    14. Explain the difference between myopia and hyperopia. How are they corrected?
    15. What is a cataract?
    16. What is glaucoma and how does it affect vision?
    17. Briefly describe how the sense of smell works, mentioning the chemoreceptors and olfactory nerves.
    18. Briefly describe how the sense of taste works, mentioning the taste buds and saliva.
    19. List two specific ways hearing can change with age.
    20. List two specific ways sight can change with age.
    21. Mention one common infection of the ear and one common infection of the eye.

    References:

    • Cohen, JB and Hull, L.K (2016) Memmlers – The Human body in Health and diseases 13th Edition, Wolters, Kluwer.
    • Scott, N.W. (2011) Anatomy and Physiology made incredibly easy. 1st Edition. Wolters Kluwers, Lippincotts Williams and Wilkins.
    • Moore, L. K, Agur, M.R.A and Dailey, F.A. (2015) Essential Clinical Anatomy.15th Edition. Wolters Kluwer.
    • Cohen, J.B and Hull, L.K (2016) Memmler's Structure and Function of the Human Body. 11th Edition. Wolters Kluwer, China
    • Snell, S. R. (2012) Clinical Anatomy by Regions. 9th Edition. Wolters Kluwer, Lippincott Williams and Wilkins, China
    • Wingerd, B, (2014) The Human Body-Concepts of Anatomy and Physiology. 3rd Edition Lippincott Williams and Wilkins and Wolters Kluwer.
    • Rohen, Y.H-Orecoll. (2015) Anatomy.A Photographic Atlas 8th Edition. Lippincott Williams & Wilkins.
    • Waugh, A., & Grant, A. (2014). Ross and Wilson Anatomy & Physiology in Health and Illness (12th ed.). Churchill Livingstone Elsevier.

    Notes prepared by: Nurses Revision

    Organs of Special Senses Read More »

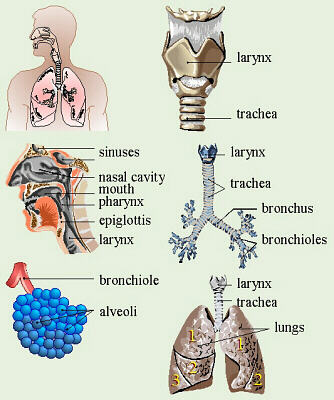

    The Respiratory System

    The Respiratory System

    Nursing Lecture Notes - The Respiratory System (Complete)

    The Respiratory System

    Learning Objectives

    Upon completion of this lecture, students will be able to:

    • Identify the organs of the upper and lower respiratory tracts.
    • Describe the detailed anatomy of the nasal cavity, pharynx, larynx, trachea, bronchial tree, and lungs.
    • List and explain the multiple functions of the respiratory system, including gas exchange, air conditioning, and sound production.
    • Explain the process of pulmonary ventilation (breathing), including the roles of the respiratory muscles.
    • Define and differentiate between the various lung volumes and capacities.
    • Describe the mechanisms of external and internal respiration, explaining the role of partial pressure gradients.
    • Outline how oxygen and carbon dioxide are transported in the bloodstream.
    • Explain the neural and chemical mechanisms that control the rate and depth of breathing.
    • Identify common deviations from the normal structure and function of the respiratory system.

    Introduction to the Respiratory System

    The respiratory system is a group of organs and tissues responsible for breathing. Its primary role is to provide a continuous supply of oxygen from the atmospheric air to the body's cells and to remove the waste product, carbon dioxide. This process is essential for cellular respiration, the metabolic process that generates ATP (energy) for all cellular activities.

    The respiratory system is responsible for breathing (moving air in and out of the lungs) and exchanging gases (oxygen and carbon dioxide).

    Function: To bring oxygen from the air into the body and remove carbon dioxide from the body. This gas exchange happens at the lungs and in the body tissues.

    Main Parts: The system includes the passages that carry air and the organs where gas exchange takes place:

    • The air passages (nose, pharynx, larynx, trachea, bronchi, bronchioles) – these are like the tubes air travels through.
    • The lungs – where the important gas exchange happens.
    • The pleura – the membranes covering the lungs.
    • The muscles of breathing (diaphragm and intercostal muscles) – which help move air in and out.

    Air Conditioning: The air we breathe from the environment can be cold, dry, dirty, or have different temperatures. As air travels through the air passages to the lungs, it is warmed or cooled to body temperature, moistened (saturated with water vapour), and filtered (cleaned) of dust, microbes, and other particles. This prepares the air before it reaches the delicate lungs.

    Key Processes of Respiration:

    The overall process of respiration involves four distinct events:

    1. Pulmonary Ventilation (Breathing): The mechanical process of moving air into and out of the lungs.
    2. External Respiration: The exchange of gases (oxygen and carbon dioxide) between the air in the alveoli of the lungs and the blood in the pulmonary capillaries.
    3. Transport of Respiratory Gases: The cardiovascular system transports oxygen from the lungs to the body tissues and carbon dioxide from the tissues back to the lungs.
    4. Internal Respiration: The exchange of gases between the blood in the systemic capillaries and the body's tissue cells.

    Anatomy of the Respiratory System

    The organs of the respiratory system are commonly divided into two tracts:

    • Upper Respiratory Tract: Includes the nose, nasal cavity, pharynx, and associated structures.
    • Lower Respiratory Tract: Includes the larynx, trachea, bronchi, and lungs.

    The Nose and Nasal Cavity

    The nose is the main route for air entry into the respiratory system.

    Location: The nose is on the face, and the nasal cavity is a large space behind the nose, divided into two sides by a wall called the septum.

    Structure: The nasal cavity is a large, irregular space divided into two equal passages by the nasal septum.

    • Septum: The anterior part is made of hyaline cartilage, while the posterior bony part is formed by the vomer and the perpendicular plate of the ethmoid bone.
    • Roof: Formed by the cribriform plate of the ethmoid bone and parts of the sphenoid, frontal, and nasal bones.
    • Floor: Formed by the hard palate (composed of the maxilla and palatine bones) and the muscular soft palate.
    • Walls: The lateral walls are formed by the maxilla, ethmoid bone, and the inferior nasal conchae. The medial wall is the septum.
    • Conchae (or Turbinates): Three bony projections (superior, middle, and inferior) on each lateral wall that greatly increase the surface area and create turbulence in the inhaled air.

    Functions of the Nose and Nasal Cavity:

    • Warming: The nasal cavity is lined with a mucous membrane that has an immense blood supply (high vascularity). As air flows past, it is rapidly warmed. This high vascularity is also why nosebleeds (epistaxis) can result in significant blood loss.
    • Filtering and Cleaning: Coarse hairs in the nostrils (anterior nares) trap larger particles. Smaller particles like dust and bacteria are trapped in the sticky mucus.
    • Humidification: As air travels over the moist mucosal surface, it becomes saturated with water vapor, preventing the delicate lung tissues from drying out.
    • Olfaction (Sense of Smell): The roof of the nasal cavity contains the olfactory epithelium, where receptors for the sense of smell are located.
    • Protective Reflex: Irritation of the nasal mucosa triggers the sneeze reflex, a forceful expulsion of air to clear the passages of irritants.
    • Passageway for air: Air enters through the nostrils (anterior nares) and passes through the nasal cavity to the back of the throat (pharynx).

    The Pharynx (Throat)

    The pharynx is a muscular tube, approximately 12-14 cm long, that serves as a passageway for both air and food. It extends from the base of the skull to the level of the 6th cervical vertebra.

    Location: The tube at the back of the mouth and nasal cavity, extending down to the oesophagus and larynx.

    Structure: Divided into three parts (nasopharynx, oropharynx, laryngopharynx). It has a lining that changes from ciliated (in the nasopharynx, continuous with the nose) to stratified squamous epithelium (in the oropharynx and laryngopharynx, continuous with the mouth) for protection from food. It contains muscle in its walls.

    Divisions of the Pharynx:

    • Nasopharynx: The superior portion, located directly behind the nasal cavity. It is an air-only passageway. The pharyngeal tonsils (adenoids) and the openings of the auditory (Eustachian) tubes are located here.
    • Oropharynx: The middle portion, located behind the oral cavity. It is a common passageway for both food and air. The palatine tonsils are found on its lateral walls.
    • Laryngopharynx: The inferior portion, extending from the epiglottis to the larynx. It is also a common passageway for food and air, and it is where the respiratory and digestive pathways diverge.

    Functions of the Pharynx:

    • Passageway for Air and Food: Directs air towards the larynx and food towards the esophagus.
    • Warming and Humidifying: Continues the process started in the nasal cavity.
    • Hearing: The auditory tubes open into the nasopharynx, allowing pressure to be equalized between the middle ear and the atmosphere, which is crucial for protecting the eardrum.
    • Protection: The tonsils (lymphoid tissue) provide immune surveillance against inhaled or ingested pathogens.
    • Speech: The pharynx acts as a resonating chamber, helping to give the voice its unique characteristics.

    The Larynx (Voice Box)

    The larynx is a complex cartilaginous structure that connects the pharynx to the trachea.

    Location: Situated at the top of the trachea, in front of the pharynx.

    Structure: Made up of several irregularly shaped cartilages joined by ligaments and membranes. The main cartilages are the thyroid cartilage (forms the Adam's apple, more prominent in males), cricoid cartilage, and arytenoid cartilages. A leaf-shaped cartilage called the epiglottis sits at the top. The inside is lined with ciliated columnar epithelium (except on the vocal cords).

    • Thyroid Cartilage: The largest cartilage, made of hyaline cartilage. Its anterior projection forms the laryngeal prominence, commonly known as the Adam's apple, which is more prominent in males after puberty.
    • Cricoid Cartilage: A ring-shaped hyaline cartilage located below the thyroid cartilage. It is the only complete ring of cartilage in the airway.
    • Arytenoid Cartilages: Paired, pyramid-shaped hyaline cartilages that anchor the vocal cords.
    • Epiglottis: A leaf-shaped elastic cartilage. During swallowing, the larynx moves superiorly, and the epiglottis tips down to cover the laryngeal opening, preventing food and drink from entering the trachea.

    Vocal Cords:

    The larynx contains two pairs of mucosal folds:

    • True Vocal Cords (Vocal Folds): Vibrate as air is expelled from the lungs, producing sound.
    • False Vocal Cords (Vestibular Folds): Superior to the true vocal cords; they do not produce sound but help close the glottis during swallowing.

    Functions of the Larynx:

    • Production of Sound (Phonation): Sound is produced when the true vocal cords vibrate. Pitch is controlled by the length and tension of the cords; volume is determined by the force of air passing over them; resonance is created by the pharynx, mouth, nasal cavity, and paranasal sinuses.
    • Protection of the Lower Respiratory Tract: The epiglottis acts as a switching mechanism to route food and air into their proper channels.
    • Passageway for Air: Provides an open (patent) airway between the pharynx and trachea.
    • Air Conditioning: Continues to warm, filter, and humidify inspired air.

    The Trachea (Windpipe)

    The trachea is a flexible tube, about 10-12 cm long, that extends from the larynx into the mediastinum, where it divides into the two primary bronchi.

    Structure: The wall of the trachea is composed of three layers and is supported by 16-20 C-shaped rings of hyaline cartilage.

    • The cartilage rings are incomplete posteriorly, where the trachea lies against the esophagus. This allows the esophagus to expand as food is swallowed.
    • The open posterior part is spanned by the trachealis muscle (smooth muscle) and connective tissue.
    • Mucociliary Escalator: The inner lining of the trachea is ciliated columnar epithelium containing mucus-secreting goblet cells. The cilia beat continuously in an upward direction, propelling mucus loaded with debris toward the pharynx, where it can be swallowed or coughed out.

    Functions of the Trachea:

    • Support and Patency: The cartilage rings keep the trachea permanently open to allow the free passage of air.
    • Mucociliary Escalator: Traps and removes particles from the airway.
    • Cough Reflex: Nerve endings in the trachea are sensitive to irritation and can trigger a powerful cough to expel irritants.
    • Air Conditioning: Continues warming, filtering, and humidifying air.

      • Functions related to respiration:

      • Passageway for air: Carries air from the larynx to the bronchi.
      • Support and Patency: The cartilage rings ensure the airway stays open.
      • Mucociliary Escalator: The ciliated lining and mucus trap particles and sweep them upwards towards the larynx, where they are swallowed or coughed up. This is a very important cleaning mechanism.
      • Cough Reflex: If the lining is irritated, it triggers a cough, which forcefully expels air and irritants from the airway.
      • Warming, humidifying, and filtering: Continues air conditioning.

    The Bronchi and the Bronchial Tree

    The trachea divides at a point called the carina into the right and left primary bronchi.

    Location: The trachea splits into two main tubes called primary bronchi (one to each lung). These then branch repeatedly into smaller and smaller tubes within the lungs, like branches of a tree.

    Structure: As the airways branch and get smaller, their structure changes:

    • The cartilage rings become smaller plates and eventually disappear in the smallest airways (bronchioles). Without cartilage, these smaller airways can change diameter.
    • The amount of smooth muscle in the walls increases as cartilage decreases.
    • The lining changes from ciliated columnar epithelium to non-ciliated epithelium in the smallest bronchioles.

    Functions related to respiration:

    • Passageway for air: Carry air from the trachea deep into the lungs.
    • Control of Air Entry: The smooth muscle in the walls can contract (narrowing - bronchoconstriction) or relax (widening - bronchodilation), controlling how much air flows into the lungs. This is controlled by the nervous system.
    • Protection: Mucociliary escalator (in larger bronchi) continues cleaning.

    Primary Bronchi:

    • Right Primary Bronchus: Wider, shorter, and more vertical than the left. As a result, inhaled foreign objects are more likely to become lodged in the right bronchus.
    • Left Primary Bronchus: Longer, narrower, and more horizontal.

    Respiratory Bronchioles and Alveoli:

    Location: The smallest bronchioles lead to even tinier tubes called respiratory bronchioles, which end in clusters of air sacs called alveoli (singular: alveolus). These are the very small, delicate parts of the lungs.

    Structure:

    • Alveoli: Tiny, thin-walled sacs (like tiny balloons) where gas exchange happens. An adult lung has about 150 million alveoli, providing a huge surface area for gas exchange.
    • Respiratory Membrane: The thin barrier between the air in the alveoli and the blood in the capillaries. It's made of the single cell layer of the alveolar wall and the single cell layer of the capillary wall, fused together. This very thin barrier (about 0.5 µm thick) is essential for quick gas diffusion.
    • Surfactant: The lining of the alveoli is covered with a watery film. Special cells in the alveoli (septal cells) produce a substance called surfactant, which is a fat-protein mixture. Surfactant reduces the surface tension of the watery film, preventing the alveoli from collapsing completely between breaths and making it easier to inflate the lungs.
    • Capillary Network: Each alveolus is surrounded by a dense network of tiny blood vessels called capillaries.

    The Respiratory Zone: Alveoli

    The respiratory zone is where gas exchange occurs. It consists of respiratory bronchioles, alveolar ducts, and alveoli (air sacs).

    Alveoli: The primary sites of gas exchange. There are millions of alveoli in the lungs, providing an enormous surface area. They are surrounded by a dense network of pulmonary capillaries.

    The Respiratory Membrane: A very thin (~0.5 µm) membrane that gases diffuse across. It consists of:

    • The simple squamous epithelium of the alveolar wall (Type I pneumocytes).
    • The fused basement membranes of the alveolar and capillary walls.
    • The simple squamous endothelium of the capillary wall.

    Surfactant: A detergent-like fluid secreted by Type II pneumocytes in the alveoli. It reduces the surface tension of the alveolar fluid, which is crucial for preventing the alveoli from collapsing during expiration.

    The Bronchial Tree:

    Upon entering the lungs at the hilum, the primary bronchi subdivide into a branching network of airways.

    Primary Bronchi → Secondary (Lobar) Bronchi → Tertiary (Segmental) Bronchi → Bronchioles → Terminal Bronchioles.

    Structural Changes Down the Tree:

    • Cartilage: The amount of cartilage decreases, transitioning from rings to irregular plates, and is absent in the bronchioles.
    • Smooth Muscle: The amount of smooth muscle increases relative to the diameter of the airway. This allows for the regulation of airflow (bronchodilation and bronchoconstriction).
    • Epithelium: The lining changes from ciliated columnar to cuboidal epithelium, and goblet cells disappear in the smaller airways.

    The Lungs and Pleura

    The lungs are paired, cone-shaped organs that occupy most of the thoracic cavity.

    Location: There are two lungs, one on each side of the chest, filling most of the thoracic cavity.

    Structure: Each lung is divided into lobes (right lung has 3, left lung has 2). The lungs are made up of the air passages (bronchioles, respiratory bronchioles), alveoli, blood vessels, nerves, and connective tissue, all organised into small units called lobules.

    Pleura: Each lung is enclosed by a double-layered membrane called the pleura. One layer sticks to the lung (visceral pleura), and the other layer sticks to the chest wall (parietal pleura). A small space between the layers (pleural cavity) contains pleural fluid. This fluid acts as a lubricant, allowing the lungs to glide smoothly against the chest wall during breathing. The fluid also helps keep the lung expanded by creating a negative pressure between the layers.

    Pulmonary Blood Supply: The lungs receive blood from the heart through the pulmonary artery (carrying deoxygenated blood from the right ventricle). This artery branches extensively within the lungs, forming the capillary networks around the alveoli. Oxygenated blood returns to the heart through the pulmonary veins (entering the left atrium).

    Gross Anatomy:

    • Apex: The superior tip of the lung.
    • Base: The inferior surface that rests on the diaphragm.
    • Lobes: The right lung is larger and is divided into three lobes (superior, middle, inferior). The left lung is smaller to accommodate the heart (cardiac notch) and has only two lobes (superior, inferior).
    • Hilum: An indentation on the medial surface where the primary bronchi, pulmonary blood vessels, lymphatic vessels, and nerves enter and leave the lung.

    The Pleura:

    The lungs are enclosed by a double-layered serous membrane called the pleura.

    • Parietal Pleura: Lines the thoracic wall and the superior surface of the diaphragm.
    • Visceral Pleura: Covers the external surface of the lungs.
    • Pleural Cavity: A potential space between the two layers containing a thin film of pleural fluid. This fluid acts as a lubricant, allowing the lungs to glide smoothly during breathing, and creates surface tension that helps keep the lungs inflated.

    Physiology of Respiration

    Breathing (Pulmonary Ventilation):

    The process of moving air into the lungs (inspiration) and out of the lungs (expiration). This happens because of changes in the volume and pressure inside the chest cavity, driven by the muscles of breathing. Air always flows from an area of higher pressure to an area of lower pressure.

    Inspiration (Breathing In): This is an active process requiring muscle contraction. The main muscles are the diaphragm (a dome-shaped muscle below the lungs) and the external intercostal muscles (between the ribs).

    • When the diaphragm contracts, it flattens and moves downwards.
    • When the external intercostal muscles contract, they pull the rib cage upwards and outwards.
    • These actions increase the volume of the chest cavity.
    • Increasing the volume decreases the pressure inside the lungs (making it lower than the outside air pressure).
    • Air flows into the lungs from the outside until the pressure equalizes.

    Expiration (Breathing Out): In normal, quiet breathing, this is a passive process requiring muscle relaxation.

    • The diaphragm and external intercostal muscles relax.
    • The rib cage moves downwards and inwards, and the diaphragm moves upwards.
    • This decreases the volume of the chest cavity.
    • Decreasing the volume increases the pressure inside the lungs (making it higher than the outside air pressure).
    • Air flows out of the lungs until the pressure equalizes.

    Forced Breathing: During exercise or difficulty breathing, other muscles (accessory muscles) help increase the chest volume during inspiration and actively push air out during expiration (using internal intercostal and abdominal muscles).

    Muscles of Respiration:

  • Diaphragm: A dome-shaped muscle that forms the floor of the thoracic cavity. It is the primary muscle of inspiration.
  • Intercostal Muscles: Muscles located between the ribs.
    • External Intercostals: Elevate the rib cage during inspiration.
    • Internal Intercostals: Depress the rib cage during forced expiration.

    • The Breathing Cycle:

    • Inspiration (Inhalation): An active process. The diaphragm contracts and flattens, and the external intercostal muscles contract, lifting the rib cage up and out. This increases the volume of the thoracic cavity, which decreases the pressure inside the lungs. Air flows into the lungs, down its pressure gradient.
    • Expiration (Exhalation): A passive process during quiet breathing. The diaphragm and external intercostals relax. The natural elasticity of the lungs causes them to recoil, decreasing the thoracic volume and increasing the pressure inside. Air flows out of the lungs. Forced expiration is an active process involving the internal intercostals and abdominal muscles.

    Lung Volumes and Capacities

    • Tidal Volume (TV): The amount of air inhaled or exhaled with each normal breath at rest (~500 mL).
    • Inspiratory Reserve Volume (IRV): The extra volume of air that can be forcibly inhaled after a normal tidal inspiration.
    • Expiratory Reserve Volume (ERV): The extra volume of air that can be forcibly exhaled after a normal tidal expiration.
    • Residual Volume (RV): The volume of air that remains in the lungs even after a maximal exhalation. This keeps the alveoli open.
    • Vital Capacity (VC): The maximum amount of air that can be exhaled after a maximal inhalation (VC = TV + IRV + ERV).
    • Total Lung Capacity (TLC): The maximum amount of air the lungs can hold (TLC = VC + RV).
    • Anatomical Dead Space: The volume of air that remains in the conducting airways (trachea, bronchi) and does not participate in gas exchange (~150 mL).

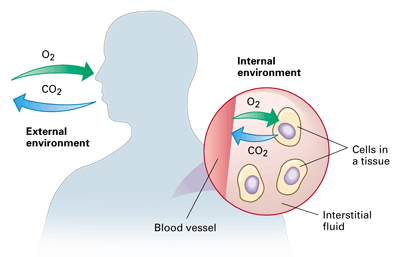

    Gas Exchange (External and Internal Respiration)

    This happens in two places:

    External Respiration (at the Lungs): Exchange of gases between the air in the alveoli and the blood in the pulmonary capillaries.

    • The partial pressure of oxygen (PO₂) in the alveoli is high, while in the deoxygenated blood arriving at the lungs, it is low. Therefore, oxygen diffuses from the alveoli into the blood.
    • The partial pressure of carbon dioxide (PCO₂) in the deoxygenated blood is high, while in the alveoli, it is low. Therefore, carbon dioxide diffuses from the blood into the alveoli to be exhaled.

    Simply

    • Blood arriving at the lungs is low in oxygen and high in carbon dioxide.
    • Oxygen moves from the air in the alveoli (where oxygen concentration is high) into the blood in the capillaries (where it's low) by diffusion.
    • Carbon dioxide moves from the blood in the capillaries (where carbon dioxide concentration is high) into the air in the alveoli (where it's low) by diffusion.
    • This exchange happens quickly across the very thin respiratory membrane.

    Internal Respiration (at the Tissues): Exchange of gases between the blood in the systemic capillaries and the body tissues/cells.

    • The PO₂ in the oxygenated blood arriving at the tissues is high, while in the tissue cells (which are using oxygen), it is low. Oxygen diffuses from the blood into the tissues.
    • The PCO₂ in the tissue cells (where it is produced) is high, while in the blood, it is low. Carbon dioxide diffuses from the tissues into the blood.

    Simply

    • Blood arriving at the tissues is high in oxygen and low in carbon dioxide.
    • Oxygen moves from the blood in the capillaries (where oxygen concentration is high) into the body tissues (where it's low) by diffusion.
    • Carbon dioxide (a waste product of cell activity) moves from the body tissues (where carbon dioxide concentration is high) into the blood in the capillaries (where it's low) by diffusion.

    Gas Transport in Blood (Transport of Gases in the Bloodstream)

    • Oxygen: Mostly carried bound to haemoglobin inside red blood cells. A small amount is dissolved in plasma. Haemoglobin picks up oxygen in the lungs and releases it in the tissues where it is needed.
    • Carbon Dioxide: Carried in the blood in three ways: mostly as bicarbonate ions in the plasma, some bound to haemoglobin, and a small amount dissolved in plasma. Carbon dioxide is picked up in the tissues and transported to the lungs to be breathed out.

    Oxygen Transport:

    • 98.5% is bound to hemoglobin (Hb) in red blood cells, forming oxyhemoglobin (HbO₂).
    • 1.5% is dissolved in the plasma.
    • The binding of oxygen to hemoglobin is reversible. Factors that promote the release (dissociation) of oxygen at the tissues include: low PO₂, high PCO₂, low pH (acidity), and high temperature.

    Carbon Dioxide Transport:

    • 70% is transported as bicarbonate ions (HCO₃⁻) in the plasma. This is the most important mechanism and plays a crucial role in buffering blood pH.
    • 23% is bound to hemoglobin, forming carbaminohemoglobin.
    • 7% is dissolved in the plasma.

    Control of Respiration

    Breathing is largely an involuntary process controlled by respiratory centers in the brainstem.

    Neural Control:

    • Medulla Oblongata: Contains the primary respiratory rhythmicity center that sets the basic pace and rhythm of breathing.
    • Pons: Contains centers (pneumotaxic and apneustic) that modify and fine-tune the breathing rhythm.

    Chemical Control (Chemoreceptors):

    These receptors monitor chemical changes in the blood and cerebrospinal fluid (CSF) and send signals to the respiratory centers.

    • Central Chemoreceptors: Located in the medulla, they are highly sensitive to changes in PCO₂ (and thus pH) of the CSF. An increase in PCO₂ is the most powerful stimulus for increasing the rate and depth of breathing.
    • Peripheral Chemoreceptors: Located in the aortic arch and carotid arteries. They are sensitive to changes in blood PCO₂, pH, and, to a lesser extent, PO₂.

    Regulation of Breathing(Control of Respiration)

    Beyond the main neural centers and chemoreceptors, several other factors can influence the rate and depth of breathing.

    Breathing is mostly an involuntary process controlled by the brain, but you can consciously control it sometimes (e.g., when speaking).

    • The main control center is in the brainstem (medulla and pons), called the respiratory centre. It sends signals to the breathing muscles.
    • Chemoreceptors in the brain and large arteries (aorta and carotid arteries) sense the levels of oxygen and carbon dioxide in the blood.
    • If carbon dioxide levels rise or oxygen levels fall, these chemoreceptors send signals to the respiratory centre, telling it to increase the rate and depth of breathing to correct the levels. The body is very sensitive to changes in carbon dioxide levels.

    Factors Influencing Respiration:

  • Exercise: During physical activity, the body's demand for oxygen increases, and the production of carbon dioxide by exercising muscles rises significantly. This increased PCO₂ is a powerful stimulus for both central and peripheral chemoreceptors, leading to an increase in both the rate and depth of respiration to meet the metabolic needs of the muscles.
  • Higher Brain Centers: Although breathing is largely involuntary, we have conscious control over it through the cerebral cortex. This allows for activities like:
    • Speech and Singing: We intentionally manipulate our breathing patterns to produce sound.
    • Emotional Displays: Strong emotions like crying, laughing, fear, or anxiety can significantly alter the breathing pattern via the limbic system and hypothalamus.
  • Drugs: Certain substances can affect the respiratory centers. Sedatives, alcohol, and opioids (like morphine) can depress the respiratory center, leading to slower, shallower breathing.
  • Body Temperature: The metabolic rate of the body is linked to temperature.
    • In a fever (hyperthermia), metabolic rate increases, leading to increased respiration.
    • In low body temperature (hypothermia), metabolic and respiratory rates are depressed.
  • Other Reflexes: Activities like swallowing, sneezing, and coughing cause temporary changes in the respiratory pattern to protect the airways.

    • Consequences of Ageing on the Respiratory System:

    • The elasticity of the lungs decreases, reducing their ability to recoil passively during expiration.
    • The chest wall becomes more rigid, and respiratory muscles weaken, which can decrease the vital capacity.
    • The sensitivity of chemoreceptors may decline.
    • There is a higher risk of respiratory infections like pneumonia due to a less efficient mucociliary escalator and a decline in immune function.

    Physiological Variables Affecting Breathing

    For pulmonary ventilation to be effective, three key physical factors must be considered. These factors determine the effort required to breathe.Elasticity: This is the natural ability of the lung tissue to recoil, or return to its normal shape, after being stretched during inspiration. The elastic fibers in the lung's connective tissue are responsible for this property. Elastic recoil is the primary driving force behind quiet, passive expiration.

    Clinical Correlation: In diseases like emphysema, the elastic tissue is destroyed, leading to a loss of elasticity. This makes expiration difficult and requires muscular effort (forced expiration).

  • Compliance: This is a measure of the "stretchability" of the lungs, or the ease with which the lungs and thoracic wall can be expanded. It describes the effort required to inflate the alveoli.
    • High Compliance: Means the lungs stretch easily (like a well-used balloon).
    • Low Compliance: Means the lungs resist expansion and require more effort to inflate (like a new, stiff balloon). Compliance can be decreased by conditions that make the lungs stiffer, such as pulmonary fibrosis (scarring) or a lack of surfactant.
  • Airway Resistance: This is the friction or drag that air encounters as it flows through the respiratory passages. The diameter of the airways is the most important factor determining resistance.
    • Bronchodilation: An increase in the diameter of the bronchioles (caused by sympathetic stimulation) decreases resistance and allows for greater airflow.
    • Bronchoconstriction: A decrease in the diameter of the bronchioles (caused by parasympathetic stimulation, histamine, or irritants) increases resistance and makes breathing more difficult.

    Clinical Correlation: In asthma, inflammation and bronchoconstriction dramatically increase airway resistance, leading to wheezing and difficulty breathing.

    • Ageing and the Respiratory System

    As people get older, changes naturally occur in the respiratory system:

    • The lungs become less elastic, making it harder to breathe out effectively. This can cause smaller airways to collapse.
    • The rib cage becomes stiffer, and the breathing muscles may become weaker, reducing the amount of air that can be moved in and out of the lungs.
    • The mucus production may decrease, and the cilia may become less effective at clearing mucus and particles, increasing the risk of infections.
    • The reflexes (like coughing) may become less sensitive.
    • The body's response to low oxygen or high carbon dioxide may become less efficient.

    These changes can make older adults more prone to breathing problems and infections.

    Common Deviations from Normal Structure and Function (Disorders)

    When parts of the respiratory system are not working normally, it leads to symptoms like coughing, difficulty breathing (dyspnoea), wheezing, chest pain, and fever. Disorders can affect different parts of the system:

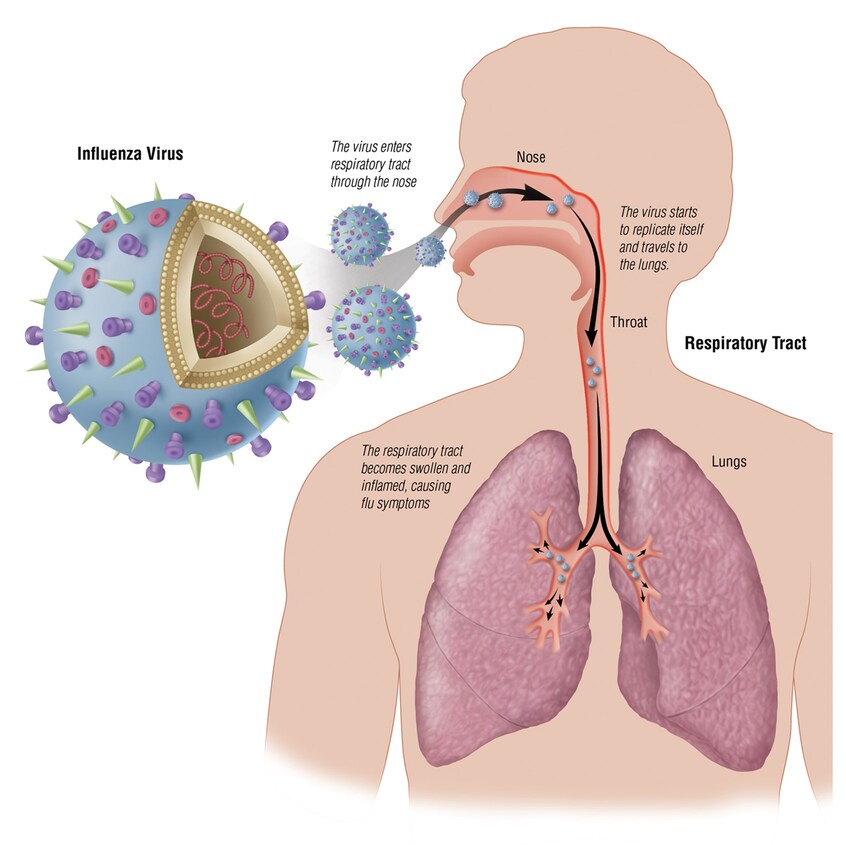

    • Upper Respiratory Tract Infections: Common infections like the common cold (usually viral, causes runny nose, sore throat) and influenza (viral, more severe symptoms like fever, muscle pain). Can also include sinusitis (inflammation of sinuses) and tonsillitis (inflammation of tonsils).
    • Laryngitis: Inflammation of the larynx, often causing hoarseness or loss of voice.
    • Bronchitis: Inflammation of the bronchi. Can be acute (often follows a cold, with cough) or chronic (long-term, with persistent cough and mucus, often due to smoking). Chronic bronchitis involves increased mucus and narrowing airways.
    • Emphysema: Damage to the walls of the alveoli, causing them to lose elasticity and break down. This reduces the surface area for gas exchange and makes it hard to breathe out, trapping air in the lungs. Often linked to smoking.
    • Asthma: A condition where the airways (bronchioles) become inflamed and narrow temporarily (bronchoconstriction) in response to certain triggers (like allergens or cold air). This makes it difficult to breathe, causing wheezing and shortness of breath. It involves inflammation, increased mucus, and muscle tightening in the airways.
    • Pneumonia: An infection of the alveoli in the lungs, where air sacs fill with fluid and pus, making gas exchange difficult. It can be caused by bacteria, viruses, or fungi.
    • Tuberculosis (TB): A serious bacterial infection of the lungs (though it can affect other body parts). It is caused by Mycobacterium tuberculosis and leads to inflammation and damage in the lung tissue.
    • Lung Collapse (Atelectasis): Occurs when a part of the lung (or the whole lung) deflates or collapses. Can be caused by a blockage in an airway (preventing air from reaching that part) or by air or fluid building up in the space outside the lung (pleural cavity), pushing on the lung.
    • Pneumothorax: Air in the pleural cavity, causing the lung to collapse. Can happen spontaneously or due to injury.
    • Pleural Effusion: Excess fluid in the pleural cavity, causing the lung to collapse. Can be due to heart failure, infection, or other conditions.
    • Pneumoconioses: Lung diseases caused by inhaling dusts (like coal dust - coal worker's pneumoconiosis, or silica dust - silicosis) over a long time. Leads to inflammation and fibrosis (scarring) in the lungs, making them stiff and reducing lung function.
    • Lung Tumours: Abnormal growths in the lung tissue. Can be benign (non-cancerous) or malignant (cancerous). Lung cancer is often linked to smoking and can grow locally or spread to other parts of the body.

    These are just some examples of how the normal structure and function of the respiratory system can be affected, leading to different illnesses. Understanding the normal state helps us recognize when things deviate and a person needs care.

    Deviations and Disorders of the Respiratory System

    Deviations from the normal structure and function of the respiratory system can lead to a variety of diseases and disorders.

    • Asthma: A chronic inflammatory disease of the airways characterized by episodes of wheezing, breathlessness, chest tightness, and coughing. These episodes are caused by bronchospasm (sudden constriction of smooth muscle in the airways), inflammation, and excessive mucus production, all of which increase airway resistance.
    • Chronic Obstructive Pulmonary Disease (COPD): A progressive disease that makes it hard to breathe, characterized by irreversible airflow limitation. It is most commonly caused by long-term exposure to irritants like tobacco smoke. COPD includes two main conditions:
      • Chronic Bronchitis: Characterized by long-term inflammation of the bronchi, leading to excessive mucus production and a chronic cough.
      • Emphysema: Characterized by the destruction of the alveolar walls, which reduces the surface area available for gas exchange and causes a loss of lung elasticity, trapping air in the lungs.
    • Pneumonia: An infection that inflames the alveoli in one or both lungs. The alveoli may fill with fluid or pus, causing cough, fever, chills, and difficulty breathing. It can be caused by bacteria, viruses, or fungi.
    • Tuberculosis (TB): An infectious disease caused by the bacterium Mycobacterium tuberculosis. It typically affects the lungs, where the immune system forms fibrous nodules (tubercles) around the bacteria. This can lead to lung tissue damage and respiratory failure.
    • Lung Cancer: Uncontrolled growth of abnormal cells in the lung tissue. It is the leading cause of cancer death worldwide, strongly associated with smoking.
    • Acute Respiratory Distress Syndrome (ARDS): A life-threatening lung condition that prevents enough oxygen from getting to the lungs and into the blood. It is often caused by severe illness, trauma, or infection, and leads to widespread inflammation and fluid leakage into the alveoli, often coupled with a breakdown of surfactant.

    Summary and Revision Questions

    The respiratory system is a marvel of biological engineering, precisely designed to facilitate the vital exchange of gases between the body and the environment. Its anatomy, from the large airways to the microscopic alveoli, is perfectly suited for its functions of ventilation, gas exchange, and protection. The physiological processes of breathing, gas transport, and neural control work in a coordinated manner to maintain stable levels of oxygen and carbon dioxide in the blood, adapting constantly to the body's changing metabolic demands.

    To consolidate your understanding of this system, please review the following key areas:

    Anatomy:

    • State the organs of the upper and lower respiratory systems.
    • Describe the location and detailed structure of the nasal cavity.
    • Describe the location and structure of the pharynx, including its three divisions.
    • Describe the structure of the larynx and outline the functions of its different cartilages.
    • Describe the gross structure of the lungs, including their lobes, surfaces, and pleura.
    • Trace the pathway of air through the entire bronchial tree, from the primary bronchus to the alveoli.
    • Explain the structural changes that occur in the airways as they become progressively smaller.
    • Write short notes on the pleura and identify its main functions.
    • What is surfactant, where is it produced, and what are its functions?
    • Outline the five main differences between the right and left lung/bronchus.

    Physiology:

    • Outline the main functions of the nose, pharynx, larynx, and trachea.
    • State the primary muscles involved in quiet and forced respiration.
    • Explain the mechanical events that occur during one cycle of inspiration and expiration.
    • Define the following terms: compliance, elasticity, and airway resistance. How do they affect breathing?
    • Explain the principal lung volumes and capacities (TV, IRV, ERV, RV, VC, TLC).
    • Define and compare the processes of internal and external respiration, using the concept of partial pressure gradients.
    • Describe the main ways that oxygen and carbon dioxide are transported in the blood. What factors promote the release of oxygen from hemoglobin?
    • Explain the main mechanisms by which respiration is controlled, including the roles of the medulla, pons, and chemoreceptors.

    More Questions

    1. What are the main functions of the respiratory system?
    2. List the major parts of the air passages in order from the nose to the alveoli.
    3. Describe how the nasal cavity conditions the air you breathe in.
    4. Explain the role of the epiglottis during swallowing.
    5. What keeps the trachea from collapsing?
    6. What is the function of the smooth muscle in the walls of the bronchioles?
    7. Where does gas exchange take place in the lungs?
    8. Describe the respiratory membrane and explain why it is important for gas exchange.
    9. What is the function of surfactant in the lungs?
    10. Explain how inspiration and expiration occur, mentioning the muscles involved.
    11. What is the difference between external respiration and internal respiration?
    12. How is oxygen transported in the blood? How is carbon dioxide transported?
    13. How does the brainstem control breathing? What role do chemoreceptors play?
    14. List three ways the respiratory system changes as a person gets older.
    15. Briefly describe how inflammation affects the airways in conditions like bronchitis or asthma.
    16. What happens to the alveoli in emphysema? How does this affect breathing?
    17. What is pneumonia?

    References:

    • Cohen, JB and Hull, L.K (2016) Memmlers – The Human body in Health and diseases 13th Edition, Wolters, Kluwer.
    • Scott, N.W. (2011) Anatomy and Physiology made incredibly easy. 1st Edition. Wolwers Kluwers, Lippincotts Williams and Wilkins.
    • Moore, L. K, Agur, M.R.A and Dailey, F.A. (2015) Essential Clinical Anatomy.15th Edition. Wolters Kluwer.
    • Cohen, J.B and Hull, L.K (2016) Memmler's Structure and Function of the Human Body. 11th Edition. Wolters Kluwer, China
    • Snell, S. R. (2012) Clinical Anatomy by Regions. 9th Edition. Wolters Kluwer, Lippincott Williams and Wilkins, China
    • Wingerd, B, (2014) The Human Body-Concepts of Anatomy and Physiology. 3rd Edition Lippincott Williams and Wilkins and Wolters Kluwer.
    • Rohen, Y.H-Orecoll. (2015) Anatomy.A Photographic Atlas 8th Edition. Lippincott Williams & Wilkins.
    • Waugh, A., & Grant, A. (2014). Ross and Wilson Anatomy & Physiology in Health and Illness (12th ed.). Churchill Livingstone Elsevier.

    The Respiratory System Read More »

    Sanitation

    Sanitation

    Nursing Lecture Notes - Sanitation

    Sanitation

    Sanitation is the proper disposal of refuse and excreta.

    AIMS
    • It prevents breeding of flies
    • It prevents breeding of mosquitoes and other insects.
    • Prevents contamination of food, water, air.

    DISPOSAL OF REFUSE

    Refuse are present both in towns and rural areas and they should be disposed of in a proper way.

    IN TOWNS

    The household refuse is disposed of in refuse bins.

    Then the local authority collects the refuse once or twice a week in a closed vehicle where it is disposed of outside the town or city.

    METHODS OF DISPOSAL
    • Burying
    • Incineration
    • Others like papers and rags reused for other purposes.
    • Others are reused for feeding animals.
    IN RURAL AREAS

    In rural settings, refuse not deposed as in town. Here each household is responsible for disposal depending on the type of refuse.

    • Burning is the most hygienic method of disposal, waste like papers, magazine, etc. And there should be a specific place for it.
    • Burying waste such as broken glasses, bottles, empty tins, etc, a piece of land should be for that.
    • Compositing. Fruits, vegetables can be poured into a pit and used later for manure.
    • Waste food. Used for feeding animals or emptied into pit for manure.
    • Waste water. Watering plants or allowed to soak away into soak pit.
    IN HOSPITAL
    • Wasted food from infectious patients must be burnt
    • Dirty dressings, swabs and bandage are put in a well-covered container, collected and taken be burnt in an incinerator.
    • Placenta is disposed of by burying, burning or throwing into a placenta pit.
    • Refuse bins are made of galvanized iron or strong plastic and are round in shape so that they can be easily washed out. They should have a handle on each side for easy lifting and have well-fitting lids to keep out rats, cats. Mice and insects. The bins should never over fill. It should be washed daily and disinfected weekly.
    EFFECTS OF IMPROPER DISPOSAL OF REFUSE.
    1. Contamination
      -It contaminates/ pollutes air giving bad smell, and also water supply as industrial waste is disposed into
    2. Spread of diseases
      -Can spread water borne diseases like typhoid, dysentery, hepatitis, cholera, and poliomyelitis.
    3. Attraction of insects and flies.
      -Due to bad smell, flies can get attracted and breeds there.
    4. Home accidents
      -Broken tins, glasses can cause injury
    5. Dirty home
      -Rubbish left any how gives the home an uncared for appearance.
    6. Poor soils
      -Makes soil infertile. Eg pill bag, sacks.

    PROPER METHODS OF DISPOSING EXCRETA

    METHODS
    • Pit latrines
    • The flush lavatory

    NB. Other type of toilets like dry may be risky and needs excreta attention.

    A PIT LATRINE.

    Is a pit [hole] dug to receive human excreta?

    Good pit latrine should be the following;

    • Dug more than 25-30 meters deep to prevent breeding of flies.
    • Soil should be permeable to allow liquid part to drain away.
    • 30 meters away from house.
    • 50-150 meters away from water supply.
    • Should have shelter for privacy with door and ventilators and ventilators covered with wire gauze.
    • Should have roof made of thatched or iron.
    • Floor if possible should be cemented
    • There should be well fitting lid to cover hole with handle.
    CARE OF A PIT LATRINE
    • Cemented floor to be washed daily with disinfectant
    • Floor should not have cracks
    • Wall washed once a while, no cobwebs.
    • Hole covered if not on use.
    • Door kept closed or locked if not in use.
    UN-CEMENTED FLOOR
    • Swept daily.
    • Smear once in a while.
    • Walls have no cracks.
    • Other care as above.
    ADVANTAGES OF A PIT LATRINE
    • Cheap and easy to build.
    • No special knowledge needs for building as simple explanation can do.
    • When used properly is effective in disposal of excreta.
    • When full, another can be made cheaply
    • A filled up latrine can be used as manure
    DISADVANTAGES OF SHALLOW PIT LATRINE
    • Fills up quickly.
    • Over flow during rainy season [contamination].
    • Flies breeds in them.
    • Children may fall in it as not well protected

    THE WATER CARRIAGE SYSTEM

    Definition

    The water carriage system is a process by which the sewage is taken away by means of water through pipes to the sewage disposal works for treatment and disposal.

    COMPOSITION

    The sewage consists of the following;

    • Excreta from lavatory pans.
    • Waste water from sinks, hand basins and baths.
    • Surface water like rain water.

    The water carriage system is consisting of the following parts;

    • Collecting places
    • Drain pipes.
    • Sewer.
    • Sewage disposal works.
    a. COLLECTING PLACES.

    These are places like sinks, hand basins, baths for waste water and flushes lavatory pads for urine and feaces. The water from the collecting places passes from down into the draining pipes.

    Feaces and urine are passed into the lavatory pans and is washed away by flushing the water. The water then enters the pans from around the rim and washed down at the same time, leaving from clean water in the trap. Traps are found under all collecting places that are a bend in the pipes and containing water called water seal. This prevents smell from decomposing sewages passing into the house.

    b. DRAIN PIPES.

    These are pipes that carry water away from collecting places up to sewage works. Rain water pipes carry rain water of gutters of roof while Soil pipes carry excreta from lavatory pans. These pipes enter the ground and empty contents into house drain. House drains Underground pipes that slope down wards to inspection chamber. Inspection chamber is where house drain empties. It passes in channel to enter another pipe a continuation of house drain. The chamber is for inspection, clearage of blockage and disinfection. Each building has own house drain and all the house drains empty into the sewer. The sewer is a very large pipe underground set in cement and slopes down ward to sewage works.

    C. SEWAGE WORKS

    From the sewer the sewage enters iron grid which holds back large objects like papers, rags. They are removed and burnt. Sewage passes into sediment tanks which is a large sloping tank for storage of sewage for 24hrs for solid to settle. This solid is called sludge and liquid part is called effluent while in sediment tank bacteria works on it making it harmless and eventually used as manure. Effluent passes through filter bed made of stones on which green gelatinous layer forms on top. The green layer filters 90% of bacteria. The effluent purified is then poured into sea, rivers, and lakes but in hospital, effluent drains a way in soak pit. Soak pit is a large hole dug in the ground filled with stones where effluent part is carried by pipes and drains a way into the ground. A soak pit is also used for draining waste water from sinks, baths, etc.

    INSECTS AND PARASITES

    COMMON INSECTS THAT CAUSE DISEASES
    • Houseflies
    • Tsetse flies
    • Tumbu flies
    • The rat flea
    • Cockroaches
    HOUSE FLIES

    They are common flies we see around.

    DISEASES TRANSMITTED BY FLIES
    • Diarrhea
    • Amoebic and bacterial dysentery
    • Typhoid and paratyphoid
    • Cholera
    • Gastro enteritis
    • Eye and skin infection
    • Thoughts to transmit yaws as they are attracted by sores.
    THE LIFE CYCLE

    The house fly feeds and breeds on feaces, decaying matters. E.g. animals, vegetable. The female lays eggs and hatch into larva in 1-3 weeks according to climate. After about one week, the larva forms the pupae and the adult fly emerges from pupae after about 3 days, one week after emerging from pupae, the female lays her first batch of eggs in a batch. The house fly leaves about 4 weeks during that time, the female lay about 6 batches of eggs so that each female fly lays about 1000 eggs in her life time. The flies are active by day and rest at night. The bodies and legs covered with hairs. When flies land on feaces or decayed matter sores wounds, the germs become to the hairs on their bodies and legs and then carry these germs onto human food, skin and eyes when they land on them.

    PREVENTIONS
    • Breeding should always be eliminated by proper building, use and care of latrine.
    • Refuse bins should not be overfilled and always kept covered.
    • To avoid attracting flies, home should be kept clean and well ventilated.
    • Food should be kept covered and waste food placed in covered container until disposal.
    • Wounds and sores should be covered with clean bandage
    • To avoid flies spreading diseases, exposed utensil should be turned upside down and food kept covered.
    • Babies and young children should be protected using mosquito net when sleeping.
    • Health education to public on breeding and feeding habits of flies, their dangers and prevention.
    TSETSE FLY

    This is the type of fly that lives and breeds in bushes along rivers and streams.

    DISEASES TRANSMITTED BY TSETSE FLY.

    Sleeping sickness [Trypanosomiasis]

    LIFE CYCLE

    The tsetse fly breeds and lives in the bushes. The female lays a single larva at a time and lay about 12 larvae in a life time. She lays the larva in a worm shady place on the ground usually in swampy areas or vegetable growing along the banks of rivers and lakes. The larva develops into pupa and after about 3 weeks, the pupa becomes an adult fly. The adult fly lives for about 3 months. The tsetse fly both male and female carries the protozoon of sleeping sickness, the trypanosome. The flies bit both man and animals and always attack by and only bit in open. They do not enter the house or other places inhabited by man. The fly has to bit an infected animal or person and suck up infected blood in order to become infected fly bits a victim the trypanosome. When the infected fly bits a victim the trypanosome is injected into the body, enters the blood Stream and starts to reproduce.

    PREVENTION
    • Vegetation near bank of rivers and lakes should be cleared.
    • Turning bush land in to agricultural land.
    • Proper treatment of infected person.
    • To prevent sleeping sickness, areas where the tsetse fly is known to be should be avoided if possible.
    • The body should be protected by wearing adequate clothing.
    • The public should be educated about the breeding habits of the flies, the dangers and prevention.
    THE TUMBU FLY

    The tumbu fly is a large yellow fly.

    DISEASES SPREAD BY TUMBU FLIES.

    -Painful swelling on the skin containing pus.

    LIFE CYCLE

    The female lays eggs on dry soil, sand and Eggs hatch into larva in 2 days and larva develops into adult.

    TREATING INFECTED PART.

    Open the entrance made by the larva and squeeze it out and apply antiseptic to the wound.

    PREVENTION
    • Avoid hanging clothes on the ground.
    • Proper ironing clothes.

    The Four F's of Disease Transmission (in Sanitation)

    The "Four F's" refer to common pathways through which fecal-oral diseases can spread, especially in environments with poor sanitation. Understanding these pathways is crucial for effective prevention.

    • Feces: This is the primary source of the pathogens (bacteria, viruses, parasites) that cause many diseases. Proper disposal and management of human and animal waste is the first line of defense.
    • Fluids: Contaminated water (drinking water, water used for washing food or hands) and other liquids (like contaminated milk) can act as vehicles for pathogens from feces.
    • Fingers: Unwashed or contaminated hands can easily transfer pathogens from feces to the mouth, either directly or by contaminating food, water, or surfaces. This highlights the importance of handwashing.
    • Flies: Flies and other insects can pick up pathogens from feces and transfer them to food, water, or surfaces, thus acting as vectors for disease transmission.

    Effective sanitation strategies aim to break the chain of transmission at each of these "F's" through measures such as:

    • Safe disposal of human and animal excreta.
    • Ensuring access to clean and safe drinking water.
    • Promoting proper hand hygiene, especially after defecation and before eating or preparing food.
    • Controlling fly populations and protecting food from contamination.

    Revision Questions:

    1. What is the primary difference between refuse disposal methods in urban versus rural areas?
    2. List five key characteristics of a good pit latrine.
    3. Explain the purpose of a "water seal" or "trap" in a water carriage system.
    4. Describe the life cycle of a housefly and explain how it transmits diseases.
    5. What are two key preventive measures against Tsetse fly-borne diseases?

    Sanitation Read More »

    Food Hygiene and Control

    Food Hygiene and Control

    Nursing Lecture Notes - Food Hygiene

    Food Hygiene and Control

    Food hygiene refers to all the conditions and measures necessary to ensure the safety and suitability of food at all stages of the food chain. Poor food hygiene is a major cause of foodborne illnesses, which can range from mild gastroenteritis to life-threatening infections.

    Introduction to Food Hygiene

    • Food is a potential source of infection and is liable to contamination by microbes at any point during its journey from the producer to the consumer.
    • Food hygiene may be defined as the sanitary science which aims to produce food which is safe for the consumer and of good keeping quality.
    • It covers a wide field and includes the rearing, feeding, marketing and slaughter of animals as well as the sanitation procedures designed to prevent bacteria of human origin reaching food stuff.
    • Food hygiene in its widest sense, implies hygiene in the production, handling, distribution and serving.
    • WHO (1984) has defined food hygiene as all conditions and measures that are necessary during production, processing, storage, distribution and preparation of food to ensure that it is safe, wholesome and fit for human consumption.
    • The primary aim of food hygiene is to prevent food poisoning and other food borne illness.

    Care of Food and Milk in the Home

    Proper handling and storage of food at home is the first line of defense against foodborne diseases.

  • Hand Washing: Always wash hands with soap and water before handling food and after using the toilet, handling raw meat, or touching pets.
  • Separate Raw and Cooked Foods: Use separate utensils, cutting boards, and plates for raw meat, poultry, and seafood to prevent cross-contamination.
  • Cook Thoroughly: Cook food to the proper internal temperature to kill harmful bacteria like Salmonella and E. coli.
  • Proper Storage:
    • Refrigerate perishable foods promptly.
    • Keep food covered to protect it from flies, dust, and other contaminants.
    • Store food in clean, pest-proof containers.
  • Care of Milk: Milk is an excellent medium for bacterial growth.
    • It should be stored in a cool place, preferably a refrigerator.
    • It must be kept covered at all times.
    • Pasteurization (heating to a specific temperature for a set period) is the most common method to kill harmful bacteria in milk without significantly affecting its nutritional value. Boiling milk at home serves a similar purpose.
  • Cleanliness of Kitchen: Keep all kitchen surfaces, utensils, and dishcloths clean.

    • Hospital Food Hygiene Regulation

    Food hygiene in a hospital setting is of utmost importance, as patients are often more susceptible to infection. Regulations include:

    • Designated Kitchen Area: A well-ventilated, well-lit kitchen that is easy to clean and separate from patient care areas.
    • Food Handler Health: All kitchen staff must be medically cleared, free from communicable diseases, and practice excellent personal hygiene. They should be screened regularly.
    • Strict Handling Protocols: Adherence to all principles of food safety, including temperature control, prevention of cross-contamination, and proper storage.
    • Special Diets: Proper procedures for preparing therapeutic diets for patients with specific needs.
    • Waste Disposal: An effective system for disposing of food waste to prevent attracting pests.

    Control of Purity and Quality of Food

    Ensuring food is pure and of good quality involves several layers of control, from government regulation to individual responsibility.

    • Government Regulation: Health authorities inspect food production facilities, markets, and restaurants to ensure they comply with safety standards.
    • Food Sourcing: Purchase food from reputable sources. Avoid food with damaged packaging, signs of spoilage (bad smell, discoloration), or food sold in unsanitary conditions.
    • Control of Adulteration: Adulteration is the act of intentionally adding cheaper, non-nutritious, or harmful substances to food to increase quantity. This is illegal and controlled through inspection and laboratory testing.
    • Proper Labeling: Food labels should provide accurate information about ingredients, nutritional content, and expiration dates.

    Food Control

    The objective of control has three aspects:

    1. Economic
    2. Aesthetic
    3. Public health

    Different Branches of Food Hygiene

    Different branches of food hygiene include:

    • Milk hygiene
    • Meat hygiene
    • Fish hygiene
    • Egg hygiene
    • Hygiene of vegetables and fruits
    • Food handlers hygiene
    • Sanitation of eating place.

    Milk Hygiene

    • Milk is an efficient vehicle for a great variety of disease agents.
    • Milk get contaminated by various sources like udder, utensils, personal hygiene of the handlers, storage environment, water etc.
    Milk Borne Diseases

    A joint FAO/WHO expert committee (1970) on milk hygiene classified milk borne disease as under:

    Infections of animals that can be transmitted to man:
    • Tuberculosis
    • Streptococcal infections
    • Anthrax
    Diseases Spread by Milk

    Unpasteurized or contaminated milk can be a vehicle for many serious diseases:

    • Tuberculosis (Bovine TB): From infected cows.
    • Brucellosis (Undulant Fever): From infected cows or goats.
    • Typhoid and Paratyphoid Fever: From contamination by human carriers.
    • Diphtheria and Scarlet Fever: From contamination by human carriers.
    • Q Fever: A rickettsial disease.
    • Gastroenteritis: From various bacteria like Salmonella or E. coli.

    Pasteurization and boiling are the primary methods for making milk safe.

    Clean and Safe Milk

    To ensure milk is clean and safe, the following principles must be followed:

    • First essential is a healthy and clean animal.
    • Secondly, the premises where the animal is housed and milked should be sanitary.
    • Milk vessels must be sterile and kept covered.
    • Water supply should be bacteriologically safe.
    • Milk handlers must be free from communicable diseases.
    • Milk should be cooled immediately to 10°c after it is drawn to retard bacterial growth.
    Methylene Blue Reduction Test
    • It is indirect method for detection of microorganisms in milk.
    • Test is carried out on the milk accepted for pasteurization.
    • Definite quantity of methylene blue is added to 10 ml of milk and sample is held at a uniform temperature of 37 deg.c until the blue colour is disappeared.
    • This test serves as confirmation of heavy contamination and compared with direct counts of bacteria, it saves time and money.
    Methods of Pasteurization
    • Holder (VAT) method - in this process milk is kept at 63-66°c for at least 30 min and cooled to 5°c.
    • HTST (High-Temperature Short-Time) method - milk is rapidly heated to a temperature of nearly 72°c is held at that temperature for not less than 15 sec and is then rapidly cooled to 4°c.

    Meat Hygiene

    The diseases which may be transmitted by eating unwholesome meat are:

    • Tapeworm infestations
    • Tinea saginata
    • Trichinella spiralis
    • Fasciola hepatica
    Microbial infections:
    • Actinomycosis
    • Tuberculosis
    • Food poisoning
    Meat Inspection
    • Animal intended for slaughter are subjected to proper ante mortem and post mortem inspection by qualified veterinary staff.
    • Meat inspection is a very important process before being accepted or rejected.
    Ante Mortem Inspection

    The term ante-mortem means "before death". Is the inspection of live animals and birds prior to being slaughtered.

    OBJECTIVES:
    • To screen all animals destined to slaughter.
    • To ensure that animals are properly rested and that proper clinical information, which will assist in the disease diagnosis and judgement is obtained.
    • To identify sick animals.
    Principle causes for antemortem rejection - it is based on:
    • Exhaustion
    • Emaciation
    • Pregnancy
    • Sheep pox
    • Brucellosis
    • Diarrhoea
    Postmortem Inspection
    • Routine postmortem examination of a carcass should be carried out as soon as possible after the completion of dressing.
    • It helps to detect abnormalities, so that products only conditionally fit for human consumption are passed as food.
    Signs of generalized disease are:
    • Inflammation of joints
    • Lesions in different organs
    Postmortem rejection - it is based on:
    • Cysticercus bovis, liver fluke, abscesses, Sarcocystis sps, hydatidosis, septicaemia, parasitic and nodular infections of liver and lungs, tuberculosis, Cysticercus cellulosae.
    Good Meat Qualities
    • It should be neither pale pink nor a deep purple tint.
    • Firm
    • Elastic to touch
    • Should not be slimy
    • Have an agreeable odour.

    Slaughter House Hygiene

    • Hygiene of slaughter house is important to prevent contamination of meat during the process of dressing.
    • There is a model public health act (1955) in India, which standardizes on the location, structure, disposal of wastes, water supply, examination of animals, storage of meat, transportation of meat and miscellaneous other activities connected with meat processing.
    Slaughter Houses
    • Location: Preferably away from residential areas.
    • Structure: Floors and walls up to 3 feet should be impervious and easy to clean.
    • Disposal of wastes: Blood, offal, etc... should not be discharged into public sewers but should be collected separately.
    • Water Supply: should be independent, adequate and continuous.
    • Examination of animals: Antemortem and postmortem examination to be arranged. Animals or meat found unfit for human consumption should be destroyed or denatured.
    • Miscellaneous: animals other than those to be slaughtered should not be allowed inside the shed.
    • Storage of meat: Meat should be stored in fly-proof and rat-proof rooms; for overnight storage, the temperature of the room shall be maintained below 5°C.
    • Transportation of meat: Meat shall be transported in fly-proof covered vans.

    Fish Hygiene

    • Fish deteriorates or loses its freshness because of autolysis which sets in after death and because of the bacteria with which they become infected.
    • Stale fish should be condemned.
    • The signs of fresh fish:
      1. It is in a state of stiffness or rigor mortis
      2. The gills are a bright red
      3. The eyes are clear and prominent
    Tinned Fish Hygiene

    Inspection of tinned fish-

    • The tin must be new and clean without leakages or rusting.
    • There should be no evidence of having been tampered with such as sealed openings.
    • On opening the tin, the contents should not blown out which indicates decomposition.

    Egg Hygiene

    • Although the majority of freshly laid eggs are sterile inside, the shells become contaminated by faecal matter from the hen.
    • Microorganisms including pathogenic Salmonella can penetrate a cracked shell and enter the egg yolk leading to spoilage.
    • Eggs can also be pasteurized to increase the shelf life.

    Fruits and Vegetables Hygiene

    • Vegetables & fruits host many pathogens like bacteria, fungal, protozoan which can enter the plant material during or after harvesting.
    • Generally proper washing and sanitization are employed to increase shelf life and product safety.
    • Freshly harvested products are routinely washed to remove soils, pesticide residues, insects, plant debris, and microbes.

    Hygiene for Food Handlers

    • Food sanitation rests directly upon the state of personal hygiene and habits of the person working in food industries.
    • The infections which are likely to be transmitted by the food handlers are diarrhoea, dysenteries, typhoid and para-typhoid fevers, entero-viruses, viral hepatitis, protozoa cysts, eggs of helminthes, streptococcal and staphylococcal infections and salmonellosis.
    The WHO Five Keys to Safer Food

    Food safety principles that all food handlers should follow:

    1. KEEP CLEAN - Wash your hands and all surfaces that come into contact with food.
    2. SEPARATE RAW AND COOKED FOOD - Keep raw meat, poultry and seafood separate from other foods.
    3. COOK FOOD THOROUGHLY - Cook food to 70°C to kill most microorganisms.
    4. KEEP FOOD AT SAFE TEMPERATURES - Avoid storing food between 5 and 60°C, especially at room temperature.
    5. USE SAFE WATER AND RAW MATERIALS - Wash fruits and vegetables with safe water.
    Rules for Food Handling
    • Medical examination carried out of all food handlers at the time of employment. Any person with a history of typhoid fever, diphtheria, chronic dysentery, tuberculosis or any other communicable disease should not be employed.
    • Persons with wounds, skin infections should not be permitted to handle food or utensils.
    • The day to day health appraisal of the food handlers is also equally important; those who are ill should be excluded from food handling.
    • Any illness which occurs in a food handler's family should at once be notified.
    • Education of food handlers in matters of personal hygiene, food handling, utensils, dishwashing, and insect and rodent control is the best means of promoting food hygiene.
    Personnel Hygiene to be Promoted:
    • (a) Hands: The hands should be clean at all times. scrubbed and washed with soap and water immediately after visiting a lavatory. nails to be kept trimmed and free from dirt.
    • (b) Hair - to provide covering to the head.
    • (c) Overalls: Clean white overalls to be worn by all food handlers.
    • (d) Habits: Coughing and sneezing in the vicinity of food, licking the fingers before picking up an article of food, smoking on food premises are to be avoided.

    Sanitation of Eating Places

    • It is a challenging problem in India.
    • There some minimum standards suggested for restaurants and eating places in India under the MODEL PUBLIC HEALTH ACT, govt.of India(1955).
    • Location: Shall not be near filth or open drain, stable, manure pit and other sources of nuisances.
    • Floors: To be higher than the adjoining land, made with impervious material and easy to keep clean.
    • Rooms:
      • (a) Rooms where meals are served shall not be less than 100 sq. feet and shall provide accommodation for a maximum of 10 persons.
      • (b) Walls up to 3 feet should be smooth, corners to be rounded; should be impervious and easily washable.
    • c) Lighting and ventilation - ample natural lighting facilities aided by artificial lighting with good circulation of air are necessary.
    • (4) Kitchen: It should be ample floor space, window opening, proper flooring and ventilation.
    • (5) Storage of cooked food: Separate room to be provided. For long storage, control of temperature is necessary.
    • (6) Storage of uncooked foodstuffs. Perishable and non-perishable articles to be kept separately in rat-proof and vermin-proof space; for storage of perishable articles temperature control should be adopted.
    • Furniture: Should be reasonably strong and easy to keep clean and dry.
    • (8) Disposal of refuse: To be collected in covered, impervious bins and disposed of twice a day.
    • (9) Water supply: To be an independent source, adequate, continuous and safe.
    • (10) Washing facilities: To be provided. Cleaning of utensils and crockery to be done in hot water and followed by disinfection.

    Foodborne Poisoning and Infections

    Foodborne illnesses are caused by consuming contaminated food or beverages.

    Foodborne Infections vs. Food Poisoning (Intoxication)
    • Foodborne Infection: Caused by ingesting food containing live bacteria, viruses, or parasites which then grow in the human body and cause illness. Examples include Salmonella, E. coli, and Hepatitis A.
    • Food Poisoning (Intoxication): Caused by ingesting food that contains toxins produced by bacteria (e.g., Staphylococcus aureus, Clostridium botulinum). The illness is caused by the toxin itself, not a live infection. Symptoms often appear more rapidly than with infections.

    HACCP

    • Hazard Analysis and Critical Control Points
    • The HACCP system, which is science based and systematic, identifies specific hazards and measures for their control to ensure the safety of food.
    • HACCP is a tool to assess hazards and establish control systems that focus on prevention rather than relying mainly on end-product testing.
    • Any HACCP system is capable of accommodating change, such as advances in equipment design, processing procedures or technological developments.
    • The successful application of HACCP requires the full commitment and involvement of management and the work force.
    • It also requires a multidisciplinary approach; this multidisciplinary approach should include, when appropriate, expertise in agronomy, veterinary health, production, microbiology, medicine, public health, food technology, environmental health, chemistry and engineering, according to the particular study.
    • The application of HACCP is compatible with the implementation of quality management systems, such as the ISO 9000 series, and is the system of choice in the management of food safety within such systems.
    HACCP'S Seven Principles for Food Safety
    1. Analyze Hazards
    2. Identify Critical Control Points
    3. Establish Critical Limits for each Critical Control Point
    4. Establish Monitoring Procedures
    5. Establish Corrective Actions
    6. Establish Verification Activities
    7. Establish Records and Documentation

    Revision Questions:

    1. What is cross-contamination, and what is one practical way to prevent it in a home kitchen?
    2. Why is milk considered a particularly high-risk food? Name two diseases that can be transmitted through contaminated milk.
    3. Explain the difference between a foodborne infection and food poisoning (intoxication).
    4. List four key principles of food hygiene that should be practiced in the home.
    5. Why are food hygiene standards especially critical in a hospital setting?

    Food Hygiene and Control Read More »

    Safe water supply

    Safe water supply

    Nursing Lecture Notes - Safe Water Supply

    Water

    Water is the liquid that forms the rivers, lakes, swamps, rain etc. and is the basis of fluids of living organisms, it is essential for life and forms 60% of body weight.

    COMPOSITION OF WATER

    Composition: Water is composed of two parts hydrogen and one part oxygen (H₂O).

    • Physical Properties: It is colorless, odorless, and tasteless. Its boiling point is 100°C, and it has a specific gravity of 1.0.
    • Chemical Properties: It is neutral to litmus paper, acts as a universal solvent, and reacts with certain chemicals to form acids or salts.
    PROPERTIES OF WATER/CHARACTERISTICS

    Water has two main properties:

    1. PHYSICAL PROPERTY
      -It is colorless, odorless, and stainless and its boiling point is 100 degree centigrade. It assumes the shape of the container, has a specific gravity of 1.0.
    2. CHEMICAL PROPERTY
      -Neutral to litmus paper, is a universal solvent, reacts with hydroxide to form salt, and reacts with nonmetal to form acid.
    CAUSES OF WATER LOSS FROM THE BODY
    • Severe vomiting.
    • Severe diarrhea, cholera
    • Severe sweating.
    • Severe burns.
    • Poly-urea following diabetic disease.
    • Inadequate intake of water.
    • Prolonged heating by hot sun shine.
    ROUTES THROUGH WHICH WATER MAY GET LOST
    • Through the lungs during expiration of carbon-dioxide from the lungs.
    • Through the kidney in form urine, in situations where over activation of kidney is involved either by an infection or anti-diuretic drugs.
    • Through the skin as in severe burns, severe sweating while working under hot sunshine or room even in diseases which results into sweating.
    • Through the gastro intestinal tract, i.e. through vomiting or diarrhea where by the intestinal lining is not in position of absorbing the required amount of water.

    USES OF WATER

    NB. The body requires an average amount of water of (1½-2) liters a day to replace the lost amount and this maintains good health and functioning of the body.

    USES IN THE BODY
    • It is needed for building all body tissues and is the basis for all body fluids and secretions such as blood, lymph, urine, gastric juices and respiration.
    • Provides some mineral salts.
    • Helps to prevent constipation.
    • Regulates the body temperature.
    • Helps in the execration of waste products from the body.
    • Replaces fluids lost from the body.
    OTHER DOMESTIC USES MAY BE
    • Washing the body, Utensils, Vehicles.
    • Cooking and cleaning vegetables.
    • Watering gardens, plants and fruits.
    • Used in water carriage systems.
    • Drinking for animals and humans.
    • Recreation like swimming, and industrial use.
    • Agricultural purposes.
    • Tourist attraction.
    • Means of transport.
    • Construction purposes.

    FACTORS THAT INFLUENCE AMOUNT OF WATER TO BE USED

    • Availability of water – People tend to misuse water when there is much supply and economize when there is scarcity.
    • Climatic factor. People use water during hot condition more often for bathing and drinking.
    • Distance – Fetching water from far distance is hard and therefore people tend to economize water.
    • Activities – Grinding mills and irrigation takes a lot of water.
    • Standard of living - people of advanced standard of living use a lot of water.

    NB. Drinking water should be pure, colorless with no smell.

    THE WATER CYCLE

    This is a circulation process of water in different stages.

    A DIAGRAM SHOWING THE WATER CYCLE
    • Water goes in a cycle, it falls as rain and fall into the ground and some runs off as stream and gradually much of it collects into the rivers and sea.
    • From the sea, lakes, rivers, streams and any wet surfaces like forests, plants and respirations of man and animals. The water vapor rises into the land and as it cools, it condenses and forms clouds and later falls as rain.

    SOURCES OF WATER

    Rain, Ocean, Sea, Lakes, Rivers, Swamps, springs, Wells, Glaciers {on top of the mountains}.

    RAIN WATER

    Is a source of water for many people. It may be collected from the roofs by means of gutters and pipes. Rain water is pure but becomes contaminated as it falls through the atmosphere and collecting places. It should be purified before drinking.

    ADVANTAGES
    • It is pure.
    • Soft, does not waste soap.
    • Does not coat saucepan.
    • It is cheap.
    DISADVANTAGES
    • Can be contaminated as it falls from the atmosphere.
    • Needs purification before use.
    • Difficult to collect when using a grass thatched house.
    • Rain water may fall concurrently with strong wind, ice, thunder strike which may become destructive to crops, houses and human life.
    • Gutters and large tanks are required {expensive}
    • The water is soft and does not contain any essential salt.
    • May not taste good.
    SURFACE WATER

    This comes from rain water and they are – the most common source of water for most people and also most polluted or contaminated by animals’ droppings, defecations, urinations by man, washing of clothes, swimming, children playing in it, leakage from latrines built too near.

    Examples of surface water are:

    • Rivers.
    • Lakes.
    • Springs.
    • Dams.
    ADVANTAGES
    • Easily accessible and can be obtained by hands or simple pimping,
    • It’s permanent, e.g. Rivers, Lakes etc.
    • It is large and can be adequate for other uses.
    DISADVANTAGES
    • Highly contaminated.
    • Chemicals from industries are deposited in it which can be harmful.
    • Needs purification before use {expensive.}
    • Source may be dangerous.
    UNDER GROUND WATER

    This water is formed from sinking water when rain falls. It can be in form of spring or well.

    1. Spring water.
      This where the underground water comes to the surface, it may be shallow or deep.
      • a. Shallow spring.
        Is where the rain water is arrested in the first impermeable layer of the soil and comes out as spring where this layer reaches the surfaces.
      • b. Deep spring.
        This is where rain water has passed through at least one impermeable layer of soil and comes out as a spring where deep layer reaches surfaces.
    2. Wells.
      This is where a hole is dug and water is brought to the surface. It may be shallow or deep well.
      • a. Shallow well.
        Here the hole is dug and water is brought to the surface from the first impermeable layer of soil.
      • b. Deep well.
        This is where the hole is dug through one or more impermeable layers of soil.

    Water from shallow springs and wells is usually soft but contaminated; the floor may not be constant during dry season. This water needs purification before use.

    Water from deep springs and wells is soft and pure but may be contaminated if the spring or well is not protected. The quantity is good and not affected by dry season.

    DISADVANTAGES OF DEEP SPRING AND WELL WATER
    • Hard water due to dissolved mineral salt.
    • Expensive to dig.
    • Water from the first impermeable layer may contaminate.
    • Water area needs proper protection.

    NB. Water from the springs or well may be hard or soft.

    HARD WATER

    This contains excessive mineral salts such as calcium and magnesium, it is usually found in deep wells and springs, if the well or spring is well protected is safe for drinking.

    DISADVANTAGES OF HARD WATER
    • Difficult to form leather and waste soap.
    • Takes longer to boil, wasting fuel.
    • Impairs the texture and color of materials, not good for cleaning the skin hair.
    • It hardens the outside of meat and vegetables and germs and ova of hook worms not killed.
    • Not goods for cooking and making tea.
    • It leaves ring of scum on bath and skin needing extra cleaning.
    • On boiling, hard water deposits fur which spoils pots and kettle.
    SOFT WATER

    Is water that contains little or no mineral salts eg rain water, lakes, shallow wells, springs, rivers etc.

    ADVANTAGES
    • Good for cooking, washing, cleaning utensils.
    • Easily forms lather hence does not waste soap.
    DISADVANTAGES
    • Usually highly contaminated.
    • Needs purification all the time/expensive.
    • Not good for drinking, unpleasant taste.
    • Have no or very little minerals.
    • It dissolves lead which causes poisoning.
    DIAGRAM SHOWING SPRING WATERS

    SOURCES OF CONTAMINATION OF WATER

    • By humans - By dirty habits in or near water supply such as urinating, disposing refuse, bathing or washing clothes, swimming or playing and Seepage from latrines built too near to the water supply.
    • Animals - Grazing, defecating, urinating or washing in water.
    AT HOMES
    • Dirty storage tanks or ports or leaving the pot uncovered.
    • Dirty containers user for collecting water or leaving the water uncovered.
    • Putting arms or cups into the water, a floater should be used leaving the water standing on the floor.
    • Using containers made from lead for collecting and storing the water, it can get spoiled if stored for long.
    INDUSTRIES

    -Depositing of rubbish or chemical in the water.

    METALS

    Such as lead pipes or lead container dissolved in water

    DANGERS OF CONTAMINATED WATER

    • It spreads diseases Typhoid and Paratyphoid, Dysentery, Diarrhea Hepatitis.
    • Poliomyelitis.
    • Guinea worms.
    • Bilharzias.
    INTESTINAL PARASITES SPREAD BY DRINKING CONTAMINATED WATER
    • Hook worms, roundworms, pinworm, bilharzias.
    DISEASES SPREAD BY OR BY WASHING OR BATHING IN CONTAMINATED WATER.
    • Eye and ear infections.
    • Skin diseases.
    • Bilharzias.

    NB. Mosquitoes breed in stagnant water and spread the organism of malaria, yellow fever, Dengue fever and filariasis, small black water flies. Which leaves in water may spread the micro-organisms causing river blindness {onchocerciasis}

    PREVENTION OF CONTAMINATION OF WATER

    1. PROPER PROTECTION OF WATER SUPPLY.
    • The water supply must be protected from children playing and animals defecating, urinating, disposing of refuse, bathing, washing clothes, swimming should not be allowed in or near water supply.
    • Parts of rivers and lakes used for domestic purposes and spring should be protected and fenced around. Wells should be dug deep and cemented or bricks to the first impermeable soil to prevent shallow and deep water mixing. If possible a pump should be fitted as a use of buckets may contaminate the water.
    • If a pump is not possible, a wall should be built around the well and have a good fitting lid/cover, Ion pipes should be used not lead. Pipes and pumps should be kept in good condition.
    • The ground around the well should be cemented with a drain to lead away wasted water.
    • Latrines, septic tanks or soak pits should be at least 50 meters from the water source.
    2. PROTECTION OF WATER IN THE HOME
    • The water should be kept in clean containers kept covered and raised off the ground.
    • Hands should be washed before handling containers.
    • A dipper should be used for removing the water and left floating and dipper not used for other purposes.
    • Hands should not be dipped in water.
    • Children should not be allowed near the water places.

    STORAGE OF WATER

    In homes, water may be kept in clean pots or galvanized irons or cement tanks at the side of the house.

    1. WATER POTS.
      Water pots must be kept clean, covered raised off the ground, no hand dipping in a pot.
    2. TANKS.
      Made either by galvanized iron or concrete and built at the side of the house. Water is collected off the roofs by means of gutters and pipes leading to the tank. The tanks should be made in so that a person can enter in it and clean, but to have a tightly fitting lid to keep out insects and impurities. The openings where the water runs in should be covered with wire gauze to keep out mosquitoes and refuse. The tap for drawing off water should be at least 12 cm from the bottom of a tank to avoid drawing off the sediment from the tank. There should be a drain around the tank to carry away waste water. Arrangement should be made to reject the first rain water as it is highly contaminated.
    3. AT WATER WORKS.
      Water is stored at large scale and in a large covered ventilated tanks and pumped the towns, buildings and houses through pipes.

    PURIFICATION OF WATER

    Water can be purified in two ways.

    1. NATURAL PURIFICATION.
    • When water is moving slowly, solid matter such as mud, sand settle at the bottom.
    • Water plants absorb carbon dioxide and give out oxygen.
    • Sun light and oxygen kills many germs and prevent growth of others.
    • Some germs are eaten by the protozoa; protozoa are eaten by the insects and insects eaten by the fish with their larva.
    2. ARTIFICIALLY PURIFIED
    HOME PURIFICATION METHODS
    1. Boiling.
      Kills many germs and destroy in organic impurities. The water is allowed to boil for five minutes, it is then poured into a clean covered container and allowed to cool.
    2. Homemade filter. This consist of two clean water pots, some holes are drilled into the bottom of one pot and wire gauze is placed on top the holes and then stones. Gravels and sand in layers and impure water is poured on top, this pot is placed on top of another clean pot which is raised off the ground. The water filters through the, stones, gravel and sand into clean water pot underneath.
      DIAGRAM SHOWING HOME MADE FILTER.
    3. Chlorinating.
      ¼ or four drops of chlorine or lime is added to 16 liters of water and left for ½ an hour, the water is then safe for drinking.
    4. Candle filter
      This consists of two containers; the top container has one or two candle filters. The impure water is then poured into this container and then placed on top of the bottom containers. This filter through the candle filters into the bottom container. There is a tap at the bottom side for withdrawing the clean water.
    5. Use of aqua tablets.
      One tablet of aqua is dropped into 20 liters of impure water and left for 30 minutes and after that the water is safe for drinking.
    Large scale purification of water work.

    Water from the river and lakes passes into the sedimentation tank, large open tanks and stay for three or more weeks where natural purification takes place by the following process.

    • a) Sedimentation
      This is where matter settles at the bottom.
    • b) Sunlight.
      Kill bacteria and prevent growth of others.
    • c) Oxygen.
      Acts on some impurities and makes them harmless.
    • d) Natural death of germs as they do not survive for three weeks then water passes for filtration process.

    The water passes through a filter bed made up of:

    • At the bottom are stones.
    • Above this layer of gravel.
    • A layer of sand.
    • A green gelatinous layer of algae made of minute pants forms of top.

    This green layer is the real bacterial filter and filters 90% the bacteria in the water. When this layer becomes too thick, it is removed and a new layer is allowed to form. This takes about two days.

    Chlorinating

    Next the water is piped to the chlorinating house where chlorine gas is added, this kills germs and sterilizes the water.

    Storage tanks

    The purified water is piped to large, covered ventilated tanks and from there the water is piped to towns and buildings through iron pipes.

    Revision Questions:

    1. List three sources of water and provide one major advantage and disadvantage for each.
    2. What is the difference between hard water and soft water?
    3. Name three diseases that can be spread by contaminated water.
    4. Describe the three-pot system for home water filtration. What is the purpose of each layer?
    5. What are the four main steps in the large-scale purification of water?

    Safe water supply Read More »

    Housing, Ventilation and Lighting

    Housing, Ventilation and Lighting

    Nursing Lecture Notes - Housing, Ventilation & Lighting

    Housing, Ventilation and Lighting

    Housing is a critical component of the physical environment. Good housing protects against the elements, reduces the risk of disease transmission, and promotes physical, mental, and social well-being.

    Housing in Relation to Health

    The quality of housing has a direct impact on health. Poor housing conditions can lead to a range of health problems.

    • Overcrowding: Facilitates the rapid spread of airborne infectious diseases like tuberculosis, influenza, and measles.
    • Poor Ventilation & Dampness: Damp housing can lead to the growth of mold, which can trigger respiratory problems, allergies, and asthma. It is also linked to an increase in rheumatic conditions.
    • Lack of Safety: Poorly constructed or maintained homes increase the risk of home accidents (e.g., falls, fires).
    • Pest Infestation: Inadequate housing often harbors vermin like rats, cockroaches, and insects, which can spread diseases.
    • Mental Health Impact: Small, dark, and overcrowded housing can negatively affect mental health, hinder children's development and study, and limit opportunities for recreation and hobbies.

    COMPONENTS OF AN IDEAL HOME

    IN RURAL SETTING
    • Main hut.
    • Children’s hut, boys and girls separately.
    • Visitors hut.
    • Food store.
    • Kitchen with raised fire place.
    • Rest /relaxation hut.
    • Animal’s hut/birds hut.
    • A large enough compound.
    • A ventilated pit latrine
    • A bath shelter.
    • A drying rack.
    • A drying wire.
    • A rubbish pit,
    • Trees for shade wind breaking.
    • A nearby water source.
    • A flower garden.
    • A wide road from the main road to the home.
    IN URBAN SETTING
    • Main house with master bedroom with water carriage toilet system and a bathroom, sitting room, dinning, kitchen, three other bedrooms for boys, girls and visitors with another toileting system, a store, garage if necessary.
    • Animals/birds shade or house.
    • A wide compound.
    • A drying line.
    • A drying rack.
    • Source of light.
    • Water source, commonly tap water.
    • A rubbish pit or dustbin.
    • Compound trees and flower garden.

    HOUSING

    To protect the health of the community, every country has its laws about housing constructions and other buildings, and also laws regarding the sites on which the house should be built, its height, ventilation and sanitation and the building materials used.

    SITE

    Is the area of land on which the house is built?

    FACTORS TO CONSIDER WHEN SELECTING A BUILDING SITE
    • The place should not be near a swamp because mosquitoes and other insects breed in swampy places.
    • The site should be slightly raised.
    • Soil should be porous like gravel and chalk.
    • There should be no overcrowding to provide enough space for free air circulation.
    • Some big trees within the site are recommended for the provision of resting shade in hot winter and also act as wind break.
    • There should be enough space for cultivation.
    • The site should be near essential services such as school, Hospital, Market, clean water source, policing outposts.
    • There should be a road within walk able distance from the site but not too near to the home to prevent home accidents.
    • The attitude of the community in such area should be good.
    • The security in such an area is important.
    • The government’s policy concerning the area.
    • A clean water source for domestic use.

    BUILDING A HOUSE

    The house should have a good foundation, the depth depending on the type of soil and the size of the house, there should be a separate place for cooking, eating, sitting/living and sleeping, arrangements for the toilets being water carriage system or pit or dry toilets made.

    REQUIREMENTS FOR STARTING A BUILDING
    • Enough capital.
    • Specious land with good quality soil.
    • Slightly raised surface not sloppy.
    • Nearby source of water for building and other domestic uses.
    • Adequate man power.
    • Accessible road for the vehicle which collects the building materials.
    • The availability of the building materials.
    • The location of electricity lines in rural areas.
    • The governments consent to ensure that the land is not affected by future road plans in urban areas.
    • The security of the place because the building may stop so prematurely.

    Minimum Requirements for Healthy Housing

    A healthy home should meet several basic requirements to protect and promote the health of its occupants.

    1. The Site

    The location of the house is fundamental.

    • Should be on slightly raised ground to ensure good drainage and avoid being near swamps where mosquitoes breed.
    • The soil should be dry and porous (e.g., gravel).
    • Should be near essential services (school, market, clean water source) but not so close to busy roads as to pose an accident risk.
    • There should be adequate space for air circulation, cultivation, and to prevent overcrowding.
    2. Structure and Materials
    • Foundation: Must be solid and appropriate for the soil type.
    • Walls: Can be made of various materials. Concrete is durable and pest-resistant but expensive. Mud bricks are cheaper but require protection from termites and moisture.
    • Floors: Must be kept in good condition, free from cracks that can harbor pests and germs. Cement or tile floors are easier to clean than mud floors.
    • Roof: Should be sound and protect the interior from rain, wind, and sun. A ceiling with air space provides insulation, keeping the house cooler.
    3. Internal Environment
    • Rooms: Should be high, airy, and well-lit. Each room needs adequate window space and air outlets for good ventilation. Windows should be screened to protect against insects.
    • Kitchen: Must be well-ventilated to remove smoke, easy to clean, have a safe fireplace, and a clean water supply. There should be proper surfaces for food preparation and cupboards for safe food storage.
    • Care of the Home: The house and furniture should be kept clean and in good repair. Bed linens should be washed frequently. Overcrowding should be avoided.
    4. Household Pests and Vermin

    A healthy home must be free of pests that can transmit disease.

    • Insects: Flies, mosquitoes, and cockroaches can be controlled by keeping the house and compound clean, disposing of refuse properly, and eliminating stagnant water.
    • Rodents: Rats and mice are controlled by proper food storage and maintaining a clean environment.
    • Creeping Plants: While plants and trees provide shade, they should be managed to not overshadow the house (making it damp) or provide a haven for snakes and other pests.
    ROOF

    Should be a sound one and projected over the walls to protect the house from rain and wind and to shade the interior from sun rays. The roof may be made of corrugated iron sheets or thatch, the thatch is good in that it is cheapest and coolest but it harbors mites, ticks, rats and other insects. Corrugated iron sheets make the house hot and there should be a ceiling between the roof and the room, there should be air space between the ceiling and the roof protected against bats and the rats by the wire netting.

    THE ROOMS

    Rooms should be high and airy and well lit with plenty of window space and air outlets to ensure good ventilation. The windows and outlets should be protected from thieves, mosquitoes and other insects. Each room should have adequate sun light but not over heated. The wall may be concrete, concrete or blocks, mud or mud bricks. Mud walls harbors mites and other insects but they are cheap and should be protected from white ants and kept in good condition. Concrete walls are expensive but last longer.

    THE FLOORS

    The floor may be made of cement, tiles or mud, mud floor are cheapest. They must be kept in good condition e.g. Cracks harbors mites, ticks and other insects; they should not be smeared with cow dung as it attracts flies and breeds germs.

    THE KITCHEN

    The kitchen should be well ventilated and lightened and easy to clean. Fire place should be raised of the ground and have chimney to take away smoke. The kitchen should have adequate clean water, a covered pail for holding waste, there should be table for preparing food and adequate cupboard for food and cooking utensils, food cupboard must have a door and be well ventilated.

    THE VERANDA

    This is formed by the roof projecting over the walls of the house. This keeps the house cool and shades the rooms, it also provides sitting out place in the evening.

    HYGIENE OF THE HOME

    • The house should be kept clean and regularly repaired.
    • Furniture dusted daily and they should be adequate according to the family’s need.
    • Table, chairs, cupboards, beds, can be made cheaply from home.
    • Windows kept clean, they should be open and should be having curtains.
    • Bed linens washed frequently and ironed.
    • Overcrowding should be avoided.
    THE COMPOUND

    A compound is the area around the house.

    • It should be kept clean and tidy to prevent attracting flies.
    • Flowers and some compound grass should be planted at the compound to make it attractive, less slippery during rainy season and also for dust strapping during windy season.
    • The compound grass should be kept short to prevent snakes and other insects.
    • Trees have to be planted to provide shade and to act as wind brakes but should not overshadow the house.

    The compound should be well planned and have:-

    • Small area for gardening.
    • Exercise and recreation.
    • Granaries for storing food and in good working condition.
    • Should have houses for animals and chicken.
    • A pit latrine, if there is no water carriage system latrine and the pit latrine should be 10 meters away from the housings.
    • A rubbish pit dug 30 meters away from the home.

    EFFECTS OF POOR HOUSING

    Small, dark, overcrowded and poorly ventilated housing contribute to poor health in the following ways:-

    The spread of infectious diseases are more common especially the air bone diseases like Tuberculosis and influenza.

    • It makes an individual more liable to diseases and effects of illness.
    • Vermin like lice, scabies mite are more easily spread.
    • Damp housing leads to increase in rheumatic conditions.
    • Home accidents are more common in homes with poor housing.
    • Work and study for children is more difficult, this affects their development and their progress suffers.
    • Hobbies such as reading needle work and drawing cannot be satisfied, there is a higher child mortality rate.

    LIGHTING

    Good natural and artificial lighting is important in houses and working places.

    There are two types of types of lighting:-

    1. NATURAL LIGHT.
    2. ARTIFICIAL LIGHT.
    1. NATURAL LIGHT.
    • This is sun light, it’s the best kind of light and is also important for health.
    • Sunlight makes the room bright, pleasant and dry showing up dusts and dirt encourages cleanliness of the home.
    • Good natural light in a home helps reduce home accidents therefore windows should be placed in such a way as to provide maximum natural light.
    • Natural light provides warmth.
    • Sunlight acts on ergo- sterol in the skin and helps in the formation of vitamin D.
    • It gives a feeling of wellbeing and stimulates the mind and body.
    • It kills many germs and prevents the growth of others.
    • To have good natural light, the room should have sufficient window space and windows placed in such a way as to give maximum light. The window should be kept clean.
    • Walls and ceiling should be painted with light colors to allow good reflection of light.
    2. ARTIFICIAL LIGHT

    The main sources are electric light, oil lamps and candles.

    ELECTRIC LIGHT

    This is the best form of artificial light from filament lamps of fluorescent tubes. It gives a good light, it’s clean and has no naked flame, doesn’t flicker and does not use up oxygen or add carbon dioxide or water vapor to air.

    NB. All electric equipment must be switched off before cleaning. It must be kept dry and never touched with wet hands as electricity passes through water.

    OIL LAMPS

    These consist of reservoir containing paraffin so and cotton wick. The paraffin soaks up the wick and on lighting produces flame. They are portable and can be carried from one place to another.

    CANDLES

    They are made of wax with a wick in the center, they are useful in emergency. Oil lamps and candles give a poor light which is hot and constantly flickers. They are hazardous as they have naked flames, they also darken the walls and ceiling of rooms, they add impurities to the air such as carbon dioxide, moisture, heat and soot formation, they use up oxygen.

    AIR AND VENTILATION

    AIR

    Air is a mixture of gases surrounding the earth.

    COMPOSITION OF AIR
    • Oxygen 20%
    • Carbon dioxide 0.03%
    • Nitrogen 79%
    • Water vapor {in small amount but varies}
    • Others gases 1%
    OXYGEN

    Oxygen is essential for life and for all forms of combustion e.g. breathing, and burning.

    CARBON- DIOXIDE

    Carbon-dioxide is a heavy gas which is a mixture carbon and oxide.

    Carbon-dioxide is produced by:

    • -Respiration of man and animals.
    • -Burning of all fuels.
    • -Decaying organic matter, plants or animals, plants absorb it during day light, they retain the carbon and set free the oxygen.
    NITROGEN

    This gas forms the bulk of air; it has no effect on man but serves to dilute the oxygen in the atmosphere and checking the rate of combustion.

    WATER VAPOUR

    This is water in the form of gas and comes from:

    • -Expired air.
    • -Evaporation from water surfaces such as rivers and lakes and from moist surfaces such as skin, plants and wet clothes.
    THE ATMOSPHERIC PRESSURE
    • The air has a weight and volume; it can support a bird and an aero-plane.
    • Air pressure falls steadily away from the earth’s surface it is also essential lessened by the heat and moisture so that it rises until in high altitude it is cooled and descends again, thus we have a constant circulation of air causing winds.
    • The instrument for measuring air pressure is called a barometer.
    • Fresh air is cool, it moves a little and is free from harmful germs and other impurities. It allows the body to maintain its normal temperature by evaporating the sweat and it gives a feeling of wellbeing.
    AIR MAY BE CONTAMINATED BY:
    1. Respiration of animals and man
      -Where oxygen is reduced and carbon-dioxide, water vapors and germs are increased as in respiration of man and animals.
    2. Burning of fuels
      -Burning fuels such as oil lamps, candles, charcoal, and fire wood heat add impurities such as soot and smoke to the air.
    3. Industrial waste
      -Impure gases and fumes from factories far and refineries.
    4. Organic matter
      -From animals or planted such as skin feathers, skin, feathers, furs dust from dust forms, Hay or cotton.
    5. Inorganic matter
      -Inorganic matter such as lime, soot, and smoke.
    6. Decaying matter
      -Decaying matter such bad food, and vegetables excreta, which give rise to bad smell and add germs and other impurities to air.
    7. In a Hospital ward
      -Organic matter such as dirty linen sluices, specimens and other discharge from wound also contaminates air.
    NATURAL PURIFICATION OF AIR IS ACHIEVED BY.
    • RAIN- Wash away impurities.
    • SUN- Dries and warm the air, kills germs and prevent its growth.
    • WIND - Dilute and mix the atmospheric gases, impure air rises and cool, fresh air takes its place.
    • PLANTS- Absorbs carbon-dioxide during the day light and set free oxygen to air.
    • OXIDATION-Oxygen in the air neutralizes some impurities such as soot, dust, germs and makes them harmless.

    VENTILATION

    Ventilation is the maintaining of the atmospheric conditions within homes, work places and places of entertainments, so that air inside is kept as near as possible to the freshness of the outside atmosphere.

    In a well-ventilated room, the air moves gently, it is cool and free from harmful germs and other impurities.

    GOOD VENTILATION

    This is very important for health, it keeps the air fresh and supplies the oxygen needed for the body.

    It also helps to maintain normal body temperature by evaporating the sweat on the skin, it reduces the spread of infections such as common cold, influenza, bronchitis and pulmonary tuberculosis.

    TYPES OF VENTILATION
    1. Natural ventilation.
      This is used in most domestic dwellings where air enters through the windows and doors and as the air circulates and becomes contaminated, it becomes hot and then it rises and escapes through air outlets high on the walls and near the ceiling, meanwhile the fresh air from outside gain entrance into the room to replace the used up one.
    2. Artificial ventilation.
      This is achieved by mechanical means by use of fans which keeps the air moving and cool or air conditioning where fresh air is forced into the building used up air is forced out. Artificial air is commonly used in operating theatres and large buildings where many people congregate such as cinemas and theatre.
    GOOD VENTILATION IS ACHIEVED BY:
    • The air from outside must be fresh,
    • The compound must be kept clean with proper disposal of refuse and excreta.
    • Dustbins for waste must be available and kept covered.
    • The house should be surrounded by grass so that less sunlight is reflected.
    • Some shade trees help to provide shade to the house, protecting it from the sun rays and reduce the temperature of the rooms.
    • Plants, shade trees and grass also absorb carbon dioxide during day light and set free oxygen in exchange.
    • Animals should not be allowed in the house.
    • The house must be kept clean and overcrowding avoided.
    • There must be adequate window space with the windows facing each other to allow cross ventilation, air outlets should be high in the walls near the ceiling because hot stagnant air rises and is replaced by fresh air.
    • The ceilings and walls inside and outside the house should be painted with light colors so that less heat is absorbed and the rooms kept cool.
    IN A HOSPITAL WARD
    • There should be adequate space between beds to allow air to circulate.
    • Visitors should be restricted to avoid using up oxygen.
    • Proper management of dirty linen, sputum mugs, bed pans, dirty dressings and discharges.
    • Air outlets like doors, windows should be open most of the times, and must be kept open both during day and night in Tuberculosis ward.
    THE EFFECTS OF POOR VENTILATION
    • In a badly ventilated room, the air is not moving. It becomes stagnant, full of water vapor, germs and other impurities. The oxygen becomes less and carbon dioxide increases, the temperature of the air is raised and it becomes hot.
    • Normally the body is cooled by the evaporation and the body temperature increases where ventilation is poor and no evaporation is taking place. Therefore where evaporation in inhibited the impacts are great discomfort with sleeplessness, headache, faintness and nausea.
    • Respiratory infections such as common cold, influenza, bronchitis and pulmonary tuberculosis are more easily spread.
    • People living in such conditions have lowered resistance to infections; they may also suffer from fatigue and have poor health.

    Revision Questions:

    1. List three health problems associated with poor housing conditions.
    2. What are four key factors to consider when selecting a site for building a house?
    3. Explain the difference between natural and artificial ventilation and give an example of where each is used.
    4. Why is sunlight considered the best form of lighting for a home? Provide three reasons.
    5. What are two ways that air can become contaminated in a home environment?

    Housing, Ventilation and Lighting Read More »

    Introduction to environmental hygiene

    Introduction to environmental hygiene

    Nursing Lecture Notes - Environmental Hygiene Introduction

    Topic 1.16: Environmental Hygiene/Sanitation

    Introduction to Environmental Hygiene in Healthcare

    Objectives

    This module will provide the knowledge necessary to:

    • Explain why there is a need to maintain a clean environment to prevent the spread of infections.
    • Discuss cleaning and disinfection requirements for clinical settings like ambulatory surgery centers.
    • Utilize a set of tools designed to assure environmental hygiene quality.

    Definition of Terms

    Understanding the distinction between environmental hygiene and sanitation is crucial for public health.

    • Environmental Hygiene: This refers to the control of all factors in our physical surroundings that can have a harmful effect on human health and development. It's about maintaining a clean and safe environment to prevent disease.
    • Sanitation: This specifically refers to the principles and practices related to the safe collection, treatment, and disposal of human excreta and other liquid and solid wastes. Proper sanitation is a cornerstone of environmental hygiene and is critical for preventing the spread of many communicable diseases.

    The Environment in Relation to Health

    The environment is the aggregate of all external conditions that influence the life and development of an organism. It is a key component of the Epidemiological Triad, alongside the host and the agent. The environment can be broken down into three main categories:

  • 1. The Physical Environment: This includes all non-living (inanimate) things and physical forces. A healthy physical environment is essential for preventing disease. Key components include:
    • Safe Water Supply: Free from pathogens and harmful chemicals.
    • Clean Air: Unpolluted by smoke, dust, or industrial fumes.
    • Safe Housing: Structurally sound, uncrowded, and protected from the elements.
    • Waste Disposal: Proper management of refuse and sewage.
    • Climate and Geography: Temperature, humidity, and terrain can influence the types of diseases prevalent in an area.
  • 2. The Biological Environment: This includes all living things that surround us, apart from humans themselves. The biological environment comprises:
    • Flora (Plants): Can provide food and medicine but can also include poisonous plants or produce pollen that causes allergies.
    • Fauna (Animals): Includes insects, rodents, and other animals that can act as vectors (transmitting diseases, like mosquitoes carrying malaria) or reservoirs (hosting infectious agents).
    • Microorganisms: The world of bacteria, viruses, fungi, and protozoa, many of which are pathogenic.
  • 3. The Social (or Socio-cultural) Environment: This encompasses the societal and cultural factors that influence health and behavior. It includes:
    • Cultural Beliefs, Customs, and Habits: Practices related to food preparation, personal hygiene, and seeking healthcare can significantly impact health.
    • Socioeconomic Status: Poverty, education level, and employment affect access to resources like nutritious food, good housing, and healthcare.
    • Laws and Governance: Government policies on sanitation, water quality, and healthcare infrastructure are critical for public health.
    • Social Networks and Support Systems: The community and family structure can provide support that enhances health and well-being.

    • The Importance of Environmental Hygiene and Sanitation

    Maintaining a clean and safe environment is not just about aesthetics; it is a fundamental pillar of public health. A nurse must be able to present a desired attitude regarding its importance because:

    • It Prevents Disease: Proper sanitation breaks the chain of infection for many diseases like cholera, typhoid, and dysentery by preventing fecal-oral transmission.
    • It Controls Vectors: A clean environment with proper waste management reduces breeding grounds for disease-carrying vectors like mosquitoes, flies, and rats.
    • It Promotes Physical Well-being: Access to clean air, safe water, and adequate housing contributes directly to physical health and reduces respiratory and gastrointestinal illnesses.
    • It Enhances Mental and Social Well-being: Living in a clean, organized, and safe community contributes to a sense of pride, security, and overall mental wellness.
    • It Reduces Healthcare Costs: By preventing diseases, good environmental hygiene reduces the burden on the healthcare system, saving resources and costs for both individuals and the government.

    The Problem: The Contaminated Environment

    The healthcare environment is a major reservoir for pathogens. Without rigorous cleaning, surfaces can harbor and transmit dangerous microorganisms, contributing to Healthcare-Associated Infections (HAIs).

    How long do pathogens survive?

    Studies show that significant pathogens can survive on dry, inanimate surfaces for extended periods, posing an ongoing risk to patients and staff.

    Table 1: Survival of common pathogens on dry inanimate objects
    Bacterium Duration of Survival
    Methicillin-resistant S. aureus (MRSA) 7 days to 7 months
    Vancomycin-resistant Enterococcus (VRE) 5 days to 4 months
    C. difficile spores 5 months

    Source: Matlow, A. G. et al. CMAJ 2009;180:1021-1024

    Where are the pathogens?

    Pathogens are found on virtually all surfaces in a patient's room, especially high-touch surfaces.

    Contaminated Surfaces: Amount of Contamination by Pathogen (+)
    Surface VRE MRSA C. difficile
    Bed Rails ++++++ + +++
    Bed Table ++++++ +
    Door Knobs ++ ++ +
    Doors +++ +
    Call Button +++ + ++
    Chair ++ + ++
    Tray Table +++ ++
    Toilet Surface + ++++
    Sink Surface + + +++
    Bedpan Cleaner +

    Source: Phillip Carling, MD, Boston University School of Medicine

    The Role of the Environment in Transmission

    The environment is a critical link in the chain of infection. Traditional infection control has focused on isolation and hand hygiene, but without addressing the environment, a key pathway for transmission remains.

    1. The Traditional Model: An antibiotic-resistant pathogen on or in a patient can be transferred to an at-risk patient via the hands of a Healthcare Worker (HCW).
    2. Intervention 1: Isolation. Isolation procedures aim to break the link between the pathogen source and the HCW's hands.
    3. Intervention 2: Hand Hygiene. Proper hand washing aims to break the link between the HCW's hands and the at-risk patient.
    4. The Missing Link: Environmental Surfaces. Pathogens from the patient contaminate environmental surfaces. These surfaces then contaminate the HCW's hands, which can then transmit the pathogen to another patient. The environment acts as a persistent reservoir.
    5. Intervention 3: Disinfection & Cleaning. Proper environmental cleaning breaks the link between the contaminated surfaces and the HCW/patient, completing the prevention strategy.

    Conclusion: A clean and healthful environment, achieved through effective cleaning and disinfection, is a critical and non-negotiable aspect of patient care, just as important as hand hygiene and isolation.

    Principles of Effective Cleaning and Disinfection

    • EPA-Registered Disinfectant: Use disinfectants registered by the Environmental Protection Agency (EPA). These products have been tested for efficacy against specific pathogens. The product label will contain the EPA registration number.
    • Contact/Dwell Time: Disinfectant kills while it is drying. The surface must be thoroughly wet and allowed to remain wet for the time listed on the product label. Staff must be able to state this required "dry time."
    • Frictional Cleaning: Cleaning requires the use of friction ("elbow grease") to physically remove organic material and microorganisms from surfaces. Simply wetting a surface is insufficient.
    • Do Not Re-dip: Used cloths should not be re-dipped into cleaning solutions, as this contaminates the entire bucket of solution.
    • Appropriate Tools: Microfiber mops have demonstrated superior microbial removal compared to cotton string mops. Mop heads and cleaning solutions must be changed frequently, at a minimum when visibly soiled and after each procedure.
    • Dust Control: Use damp mopping or chemically treated mops to reduce airborne dust. HEPA-filtered vacuums should be used in patient care areas, and vacuuming should not be done when procedures are in progress.

    Monitoring Environmental Hygiene Quality

    Evaluating the effectiveness of cleaning practices is a key CDC guideline. This cannot be left to chance.

    • High-Touch Surfaces: Cleaning efforts and monitoring should focus on high-touch surfaces in close proximity to the patient (e.g., bed rails, light switches, call buttons, doorknobs, keyboards).
    • Monitoring Tools: Objective tools can be used to evaluate the quality of cleaning. These include:
      • Fluorescent Gel/Markers: An invisible marker is placed on a high-touch surface before cleaning. After cleaning, a UV light is used to see if the mark was removed.
      • ATP (Adenosine Triphosphate) Systems: Measures for ATP, a molecule present in all living cells, providing a rapid quantitative measure of cleanliness.
      • Swab Cultures: Culturing a surface to identify if specific pathogens are present after cleaning.
    • Feedback and Improvement: Studies show that cleaning practices significantly improve after staff education, performance feedback, and repeated measurement (remeasure). These activities should be part of a facility's Quality Assurance Performance Improvement (QAPI) program.

    Revision Questions:

    1. What is the main difference between the terms "environmental hygiene" and "sanitation"?
    2. List the three main components of the environment (physical, biological, social) and give two examples for each.
    3. Why is it important for a nurse to have a positive and proactive attitude towards environmental hygiene? List three reasons.
    4. How does the physical environment directly impact a person's health? Provide one positive and one negative example.
    5. Why is the environment considered a critical "missing link" in infection prevention, alongside hand hygiene and isolation?
    6. According to studies, for how long can MRSA and C. difficile spores survive on dry surfaces?
    7. Name five high-touch surfaces in a patient room that require diligent cleaning.
    8. What is "dwell time" and why is it important for effective disinfection?
    9. Describe one method for monitoring the quality of environmental cleaning.

    Introduction to environmental hygiene Read More »

    Introduction to personal hygiene

    Introduction to personal hygiene

    Nursing Lecture Notes - Personal & Communal Health

    Personal Hygiene

    Module Unit Description: Covers elements of personal health and principles of maintaining a healthy environment, including hygiene practices for health promotion and behavior changes for proper sanitation.

    Learning Outcomes for this Unit:

    By the end of this unit, the student shall be able to:

    • Describe the importance of personal hygiene practice in nursing.
    • Identify and break up the disease transmission cycle.
    • Conduct and promote essential environment hygiene and sanitation principles and practices.

    PERSONAL HYGIENE

    This includes;

    • Cleanliness.
    • The bowel.
    • Exercise.
    • Rest and recreation.
    • Fresh air and sun light.
    • Good diet.
    • Good habit.
    • Clothing.

    COMMUNITY OR PUBLIC HYGIENE

    These include measures taken by the government, health authority, public workers, departments, Agriculture and veterinary departments which help to improve the health of people by the control and treatment of diseases adequate food production, water supply, etc.

    PREVENTIVE MEASURES TAKEN BY THE GOVERNMENT

    • Free inoculation to prevent yellow fever, plague typhoid fever.
    • Antenatal services for pregnant mothers.
    • Post natal clinics of women after delivery.
    • Infant well fare for children under school age.
    • School clinics for school children.
    • Care of water supply.
    • Sanitation –disposal of refuse.
    • Control of pest, prevention of breeding places of mosquitoes, flies, flea, rats’ mites, etc.
    • Inspection of building, markets, shops and diary.
    • Education of people on matter of health.
    • Sick people to be treated in hospitals, dispensaries.
    • Isolation infectious cases.
    • Family planning clinics.
    • Free vaccination.

    Aims of Hygiene

    • To keep the body healthy and give one confidence
    • To prevent spread of germs to other people and prevent illness
    • To promote a good standard of living

    Cleanliness

    Skin

    This must be kept clean and healthy in order to function well, daily bath is needed to remove dirt and give feeling of well-being.

    Function of Skin
    • Regulates body temperature.
    • Protection against sun rays and germs.
    • Sensory organ of touch.
    • Produces vitamin D through its ergosterols.
    • Excretes sebum to nourish skin.
    • Excretes sweats.
    Effects of Lack of Hygiene of the Skin
    • Sebum, sweat, dead skin, cells and bacteria if not removed decomposes and produces an unpleasant smell and irritate the skin.
    • The pores become blocked and the heat of the body can’t be regulated properly.
    • Dirt favors growth and germs and parasites and may give rise to diseases.

    Hands

    • Should be washed frequently.
    • Finger nails should be kept short cut to the shape of the fingers.
    • After washing hands dry with clean materials and apply lotion to prevent roughness, cracking or soreness.

    Feet

    • Should be washed frequently to prevent smell from decomposing sweat.
    • Dry in between toes thoroughly as wet surfaces promote the growth of spore fungal infection called Tania.
    • Shoes or sandals should be worn to prevent picking hook worms and jiggers when walking bare footed.
    • Shoes should be good fitting not to cramp the feet.
    • Badly fitting shoes result in bore deformity, growth of corns or in growing toe nails.
    • Too high heeled shoes should be avoided it throw the weight backward causing backache and bad posture.
    • Toe nails should be cut short and straight across to prevent in growing toe nails.
    Abnormalities/Conditions of Wearing Badly Fitting Shoes
    1. Corns: Thick painful round overgrowth and hardening of the skin. Usually occurs at the top of or in-between the toes. May need to be surgically removed.
    2. Callosity: A local hardening of the skin caused by friction or pressure.
    3. Bromidrosis: A profuse sweating of the feet/toes and can cause foul odors and sores.
    Diseases of the Feet
    1. Athlete's Foot: caused by a fungal infection that occurs between the toes.
      • Most common in communal living spaces, i.e., Showers.
    2. Jiggers: due to poor hygiene of the feet and not wearing shoes.

    Mouth and Teeth

    • Keeping the mouth and teeth clean is important to maintain good health.
    • Teeth brushed each morning and before going to bed, nothing should again be eaten after cleaning before sleep.
    • Brush teeth in up and down movement to remove food particles and prevent decay damage to enamel.
    • Eat food containing adequate calcium such as dark green vegetables, beans, ground nuts and well water etc. and vitamin D like eggs, sun light, milk, cheese, butter, etc. These make teeth healthy.
    • Mouth should be rinsed after every meal.
    Poor Oral Hygiene Leads To:
    • Bad smelling breath.
    • Indigestion.
    • Tooth decay and dental carries and pain.
    • Abscess formation on the gum.
    • Toxins from infected teeth may enter blood stream causing illness.

    The following complications may arise if mouth/teeth are neglected:

    1. Stomatitis: inflammation of the mucus lining of the mouth.
    2. Rhinitis: inflammation of the mucus lining of the nose.
    3. Halitosis: odor/smell from the nose.
    4. Gingivitis: inflammation of the gums.

    Nose

    This is part of the respiratory system.

    Functions
    • Warms air.
    • Filter air entering respiratory tract.
    • Moisten air.

    For these reasons breathing should be done by nose not mouth. The nose should be blown at intervals using handkerchief to remove accumulated dirt and germs, handkerchief changed daily.

    Hair

    • Hair should be kept clean and tidy washed with shampoo or soap using warm water.
    • In hot climate wash hair daily, it should be brushed.
    • Well-kept hair gives a feeling of confidence and well-being.
    • Dirty hair harbors lice this may cause ill health as result of some diseases.
    • Dirty hair may allow spores of ring worms to develop.
    • The brush and the comb must be kept clean in a good condition. They should never be shared.
    Common Infections of the Scalp
  • Pediculus Capitis (Hair Lice): Common with people whose hair is not kept regularly and/or sharing brushes/combs that are infected.
    • Lice and mites infect the scalp and cause itchiness.
    • Highly contagious.
    • Treatment is available at your local pharmacy & you must clean all infected surfaces – i.e. beddings.
  • Ringworm: A fungal parasite that attacks the hair follicle and destroys the hair – causes scar patches which are usually circular or ring shaped – can be found anywhere on the body that has hair.
    • Highly infectious and it can be transmitted easily when coming in physical contact with the infection.
    • Treatment: remove all diseased hair and apply anti-fungal cream to infected area and to all/any utensils used on the infected area.

    • The Bowels

    The bowel should be opened regularly. The frequency may vary with the amount and the type of food taken but usually it is good to empty the bowels every day.

    Constipation

    This is the condition of infrequent and difficulty in evacuation of feaces.

    The longer the evacuation remains in the colon the water is absorbed and the feaces becomes harden and difficult to expel.

    Prevention of Constipation
    • Adequate roughage in the diet; this stimulates digestion.
    • Adequate fluid intake which help keeping the feaces soft.
    • Exercise to stimulate muscle tone and peristaltic movement in the intestine.
    • Forming a regular habit of opening the bowels daily. Food entering the stomach stimulates peristaltic movement in the intestine which stimulate rectum to empty.
    • This more noticeable after breakfast and is good time to form habit.
    • Taking meals at regular ensures the stomach is not over loaded and food is properly digested.
    Effects of Constipation
    • Abdominal discomfort and flatulence.
    • Tiredness.
    • Headache.
    • Poor appetite.
    • Later may result into hemorrhoids.

    Special Groups in Personal Hygiene

    While the principles of hygiene are universal, specific considerations must be made for vulnerable populations. Nurses must adapt hygiene care for:

    • Infants and Children: Who depend entirely on caregivers for their hygiene.
    • The Elderly: Who may have mobility issues, thinner skin, or cognitive impairments that make self-care difficult.
    • Ill or Bedridden Patients: Who require comprehensive assistance with all aspects of personal hygiene (bed baths, oral care, hair washing, etc.) to prevent infections and promote comfort.

    Exercise, Rest and Relaxation

    Exercise

    • Is important in maintaining the health of the body.
    • Helps all the muscles in the body to develop and improve muscle tone.
    • Keeps the joints moveable.
    • Stimulates the appetite and improve digestion.
    • Stimulates respiration, breathing is deepened and more oxygen is taken into the lungs resulting in a more efficient purification of blood.
    • It quickens the circulation of blood causing an increased flow of blood every part of the body and helps to clear a way waste product. It improves kidney function.
    • It improves bowel action by stimulating peristalsis in the intestines and helps to prevent constipation.
    • It gives a feeling of fitness and well-being.
    • The mind is relaxed and refreshed.
    • Exercise should be taken regularly and when possible in the open air. It should not be taken too soon after the meal or when tired and not for long. Clothing should be changed after exercise.

    Some good types of exercise are;

    • Walking.
    • Swimming.
    • Dancing.
    • Gardening.
    • Volleyball.
    • Netball.
    • Tennis.
    • Running/Cardio.
    • Biking.
    • Yoga/Pilates.
    • Non-recreational activities – i.e. digging.
    Regulation of Daily Life to Maintain Physical Fitness

    The activities involved are:

    1. Diet
    2. Elimination of body waste
    3. Washing of Clothes
    4. Doing Exercise
    5. Sleep & Rest
    6. Fresh air & sunlight
    Deep Breathing

    Passive and active exercises help to stimulate the circulation and improve the muscle activity. Take deep breaths in through the nose and breathe out through the mouth.

    Posture

    When Standing: feet should be a little less than shoulder width apart, back straight, and chin up.

    Results of Exercise

    Negative Outcomes:

    • Fatigue of the muscles and nerves and when not exercising properly, a person can cause harm to themselves.
    • When water is not taken a person can become dehydrated.
    • Glucose should NOT be substituted for water.

    Positive Outcomes:

    • Building/stimulating stronger muscles, stimulating the mind by increasing heart rate and blood flow.
    • Will help the mental health of a person.

    Sleep & Rest

    Sleep and rest are necessary to combat mental and physical fatigue that could lead to mental/physical breakdown if not received.

    Hours of sleep that should be received by each age group:

    • Infants: 12-14hrs
    • Children/Teenagers: 9-10hrs
    • Adults: 6-8hrs

    Regular rest is necessary for the body to repair worn out muscles and organs. Sleep is the perfect form of rest. For good health; sleep must be sufficient and regular in a comfortable and relaxed position, the body should be kept warm during sleep, a warm bath before bed helps promote good sleep. The amount of sleep required varies with age:

    • Infants sleep most of the day.
    • Children sleep ranging from 12-16 hours a day.
    • Adults need from 6-9 hours a day.

    Recreation

    This is provided by an activity which is different from one's usual work, it is a time of relaxation and should be something that is enjoyable. It is important for individuals to have some form of recreation as doing the same thing over and over again leads to depression and nervous exhaustion. Outdoor games like walking, swimming, gardening, dancing etc. provides both exercise and recreation, reading, needle work and music are also other good forms of recreation.

    Fresh Air, Sunlight and Good Nutrition

    • Fresh air provides oxygen and removes carbon dioxide.
    • Good posture helps to provide adequate oxygen.
    • Tight clothing around the chest and neck should be avoided.
    • Fresh air gives a feeling of fitness, improves the appetite and helps in the elimination of waste products.

    Sunlight

    • Is important to maintain good health.
    • Acts on ergo-sterol on the skin to produce vitamin D.
    • The ultra violet rays kill many germs.
    • It provides warmth.
    • It encourages cleanliness as sun light shows up dirt and dust in our surroundings.

    Good Diet

    Food is necessary for growth, energy, strength, warmth and body repair. The amount required for health depends on size, sex, age, climate, degree of activity and basal metabolic rate. Our diet should be well balanced one containing all the essential food nutrients that the body requires to function normally and stay healthy.

    These important nutrients or food factors are:

    • Protein - responsible for body building, needed for growth and repair.
    • Carbohydrates – Energy providing food.
    • Fats - Heat and energy supply.
    • Vitamins - Protective food which regulate normal tissue activities.
    • Mineral salts - For body building.
    • Water - Makes up 2/3 of body weight for normal body function.
    • Roughages - Prevents constipation.

    Good Habits

    Habit is something we do without thinking about it. Good health can be maintained by forming regular habit, as we continue practicing doing particular activity, it becomes a habit e.g. going to bed at 10pm; the body will be ready to sleep at that time.

    Some good habits are:

    • Regular time for sleep.
    • Daily bath.
    • Daily bowel action.
    • Regular meals.

    Clothing

    Clothing is worn for:

    • Provision of privacy.
    • Promotion of warmth.
    • Protection from sun heat.
    • Protection from wind, injuries, germs, rain.
    • Identification purposes.

    Clothing's made of different materials:

    Cotton

    • Suitable for hot climates.
    • Absorbs moisture.
    • Allow evaporation.
    • Non- irritating to the skin.
    • Can be boiled and washed well.
    • Easy to iron.
    • Long lasting material.

    Linen

    • Suitable for hot climate.
    • Light cool material.
    • Long lasting and pleasant to wear but they are expensive, not easy to iron and washing must be done carefully.

    Wool

    • This is made from the fur of animals and mainly sheep.
    • It retains heat, preferably worn in cold weather.
    • Can be irritating.
    • Expensive.
    • Needs careful washing.

    Synthetics

    E.g. Nylon, made from chemicals and used mainly for under wares and night clothes;

    • They are light.
    • Not irritating.
    • Easy to wash.
    • Do not need ironing.

    Clothes should be changed frequently and washed thoroughly in clean soft water and soap. Stagnant water may contaminate it with bacteria and spores of fungi and lead to infection and itching.

    After washing, they should be rinsed well and hanged to dry in a wire line in the fresh air and not put on the ground. When dry they should be ironed with hot iron to kill any source of infection. In damp climate, clothes should be dried to avoid/prevent moulds from growing.

    Clothes cupboard should be dry and clean; clothes should be loose and with normal fitting to allow movement and not constrict the blood vessels/circulation or breathing. In hot climate clothes should be light and of bright color as the dark colors absorbs heat, in cold weather, heavier, warmer clothing should be worn.

    Revision Questions:

    1. What are the three main aims of practicing good personal hygiene?
    2. Describe two common scalp infections and how they can be prevented.
    3. List three conditions that can result from wearing badly fitting shoes.
    4. Explain four ways to prevent constipation.
    5. Compare the properties of cotton and wool clothing and state which climate each is best suited for.
    6. Why is it important to never share personal items like combs or towels?

    References (from Curriculum for CN-1105):

    The following reference materials are recommended for this module unit.

    • Rahim, A. (2017). Principles and practices of community medicine. 2nd Edition. JAYPEE Brothers Medical Publishers Ltd. New Delhi
    • Cherie Rector, (2017), Community & Public Health Nursing: Promoting The Public's Health 9e Lippincott Williams and Wilkins
    • Gail A. Harkness, Rosanna Demarco (2016) Community and Public Health Nursing 2nd edition, Lippincott Williams and Wilkins
    • Basavanthapp, B.T and Vasundhra, M.K (2008), Community Health Nursing, 2nd edition. JAYPEE Brothers Medical Publishers Ltd. New Delhi
    • Kamalam, S. (2017), Essentails in Community Health Nursing Practice 3rd edition. JAYPEE Brothers Publishers Ltd. New Delhi
    • James F. McKenzie, PhD, et al. (2018) An Introduction to Community & Public Health, 9th edition, Jones and Bartlett Publishers.
    • Maurer, F.A, Smith, C.M (2005), Community /Public health Nursing Practice, 3rd edition ELSEVIER SAUNDERS, USA
    • МОН, (2013) Occupational Safety and Health Training Manual, 1st Edition

    Introduction to personal hygiene Read More »

    Personal and Communal Health (PCH) UHPAB

    Personal and Communal Health (PCH)

    Nursing Lecture Notes - Personal & Communal Health

    Module Unit CN-1105: Personal and Communal Health (PCH)

    Contact Hours: 45

    Module Unit Description: Covers elements of personal health and principles of maintaining a healthy environment, including hygiene practices for health promotion and behavior changes for proper sanitation.

    Learning Outcomes for this Unit:

    By the end of this unit, the student shall be able to:

    • Describe the importance of personal hygiene practice in nursing.
    • Identify and break up the disease transmission cycle.
    • Conduct and promote essential environment hygiene and sanitation principles and practices.

    Topic: Introduction to Personal and Communal Health

    This section introduces the foundational concepts and terminology essential for understanding both individual (personal) and population-level (communal) health.

    Concepts of Personal and Communal Health (Definitions)

    Understanding these key terms is the first step in studying PCH.

  • Health: This is a state of complete physical, mental, and social well-being of an individual and not merely the absence of disease or disability.
  • Hygiene: This is the practice of keeping oneself, one’s way of living and working areas clean in order to prevent disease. OR, The study of health that teaches people how to keep their bodies healthy especially through the promotion of cleanliness. OR, Is the study of health as it does concerns each individual.
  • Personal Hygiene: This deals with the health of the individuals and involves understanding and care of both the body and minds. It is a science of health that deals with those measures taken by an individual to preserve his/her health. Examples of those measures include:
    • Cleanliness
    • The bowels
    • Exercise, rest and recreation
    • Fresh air and sun light
    • Good habits
    • Good diet
    • Clothing
    Personal hygiene involves 3 major areas, i.e.,
    • Cleanliness of an individual and care of the body
    • Regulation of daily life activities to maintain physical fitness
    • Habits of mental outlook
  • Public or Societal Hygiene (or Community Health): This deals with the health of the community and is the responsibility of the community and of both central and local government. It’s an art and science of taking care of health in all its aspects of life which include:
    • Promotion
    • Preservation and prevention of diseases
  • Family[s]: Is a group of two or more people [home] who are united by blood, marriage, adoption and commitment which exist as a family and who are mixed together as a unity.
  • Community: Is a group of people who live in a specific place or locality sharing common interest and characteristics. It’s a group of living together having the same values, culture and norms with an intension or target goal.
  • Epidemiology: The study of the distribution and determinants of health-related states or events (including disease) and the study to control diseases and other health problems. OR, The study of the patterns, causes, and effects of health and disease conditions in defined populations.
  • Mortality: Mortality is used only to refer to a situation where people in a population are dying because of a disease.
  • Mortality Rate: Describes the number of people dying because of a disease in a population.
  • Morbidity: Morbidity is a state of having poor health or a disease because of any reason. Whenever a person is afflicted with a disease to a level that it affects his health, the word morbidity is used by doctors.
  • Morbidity Rate: Is referred to the rate of incidence of a disease or the prevalence of the disease in a certain population.
  • Prevalence: Refers to the number of people who already have the disease.
  • Incidence: Refers to the number of new cases of a disease that are confirmed.
  • Communal: This involves a large group of people.

    • Aims of Hygiene

    • To keep the body healthy and give one confidence
    • To prevent spread of germs to other people and prevent illness
    • To promote a good standard of living

    Personal and Communal Health (P.C.H)

    This is the health care system that concerns itself with the health of an individual and the community.

    Aims of Personal and Communal Health (P.C.H)

    • To provide, promote, preventive, curative and rehabilitative health care to individual and community as a whole, i.e., bringing them to a complete physical, mental and social well-being.
    • Provide nurses with knowledge and skills of maintaining an individual health through health education.
    • Health being a basic of human right which should be attainable at higher level. This helps nurses to work without discrimination. All should be treated equally.
    • It helps nurses to overcome the challenges that may arise during counseling or advising patients, relatives and community members.
    • Helps nurses to provide good care to patients who are unable to perform since they know the importance.

    How Can We Promote Good Health?

    • Through health education, e.g., clean water, sanitation.
    • Residing in good houses.
    • Good nutrition.
    • Immunization.
    • Having good relationship with the community.
    • Proper planning by the government [MOH].
    • Emphasis on environmental hygiene.

    Components of P.C.H

    • General health measures.
    • Food hygiene.
    • Clean water supply.
    • Environmental sanitation [waste disposal].
    • Good housing.
    • Vector control.
    • Treatment of infections and other diseases.

    P.C.H as a Subject

    This subject includes all matters which affect the health of people either an individual in their own homes or as members of the community such as villages or towns.

    This subject can be sub-divided into:

    • Personal hygiene.
    • Public or community or social hygiene.

    Dimensions of Health

    Overall health and wellness are interdependent on several dimensions. For a person to be considered truly "healthy," all these dimensions should be in balance.

    • Physical Health: The state where all body parts are anatomically intact and performing their physiological functions correctly. It implies the absence of disease or pathology and the body's ability to cope with everyday stresses.
    • Mental Health: Relates to cognitive abilities and well-being. It includes the ability to think clearly, reason, make judgments, perceive things as they are, and understand social structures.
    • Emotional Health: The ability to recognize, express, and regulate emotions appropriately in response to stimuli. It involves showing appropriate reactions and managing feelings effectively.
    • Social Health: The ability to form satisfying interpersonal relationships with others. This involves effective communication, building networks, and understanding and accepting diverse cultures.
    • Spiritual Health: Relates to a person's sense of purpose and meaning in life. It is the vital force or spirit that animates humans; an imbalance here can affect overall well-being.

    Determinants of Health

    A person's health is determined by their circumstances and environment. These factors, known as determinants, can either protect and improve health or create risks.

    • Income and Social Status: Higher income and social status are linked to better health. Greater economic stability allows for better access to nutrition, housing, and healthcare.
    • Education Level: Low education levels are often linked with poorer health, more stress, and lower self-confidence. Education equips people with the knowledge to make healthier choices and access better employment.
    • The Physical Environment: This includes the safety of water, housing conditions, air quality, and working conditions. A clean and safe physical environment reduces exposure to diseases and hazards.
    • Health Service Access: The availability and accessibility of quality health services for prevention, diagnosis, and treatment directly impact the health of individuals and communities.
    • Other determinants include: Personal health practices and coping skills, healthy child development, social support networks, and genetics.

    Health Indicators

    Health indicators, also referred to as health variables or health indices, are measurable characteristics of a population that provide insights into its health status. These indicators serve several essential roles in the realm of healthcare management, including description, prediction, explanation, system oversight, evaluation, advocacy, accountability, research, and the assessment of gender disparities.

    Types of Health Indicators

    Health indicators are typically classified into two main categories: vital indicators and behavioral indicators.

    Vital Indicators:

    These encompass a wide range of measures that provide critical information about the health of a population. Some key types of vital health indicators include:

  • Mortality Indicators: These indicators focus on data related to deaths within a population. They include statistics such as the crude death rate (the total number of deaths per 1,000 people in a given year) and specific death rates for various causes (e.g., cardiovascular disease, cancer).
  • Morbidity Indicators: Morbidity indicators provide insights into the prevalence and incidence of diseases and illnesses within a population. Examples include the prevalence of diabetes or the incidence of new cases of tuberculosis.
  • Disability Indicators: These indicators assess the prevalence of disabilities, impairments, and limitations in functioning within the population.
  • Service Indicators: Service indicators gauge the accessibility, availability, and quality of healthcare services. This category includes measures like the number of healthcare facilities per capita or the availability of essential medications.
  • Comprehensive Indicators: Comprehensive indicators offer a more holistic view of health by combining multiple aspects of well-being. They may include the Human Development Index (HDI), which factors in life expectancy, education, and income.
  • Growth Rates: These indicators track changes in population size over time, which can impact healthcare resource planning and allocation.
  • Fertility Rates: Fertility indicators, such as the total fertility rate (TFR), provide information about the average number of children born to women of childbearing age in a population.
  • Couple Protection Rates: These rates evaluate the use and effectiveness of family planning methods among couples.
  • Birth Rates: Birth rates indicate the number of live births per 1,000 people in a specific population during a given year.
    • Behavioral Health Indicators:

    In contrast to vital indicators, behavioral health indicators focus on the actions, behaviors, and attitudes of individuals and communities regarding healthcare. Some examples of behavioral health indicators include:

    • Utilization of Services: These indicators measure the extent to which healthcare services are accessed by the population, including factors like hospital admissions, doctor visits, and preventive screenings.
    • Compliance Rates: Compliance indicators assess the adherence of individuals to recommended treatments, medications, and health guidelines.
    • Population Attitudes: Behavioral indicators also encompass surveys and data related to public perceptions and attitudes regarding health and healthcare facilities.

    Revision Questions:

    1. In your own words, explain the WHO's definition of health. Why is it more than just "not being sick"?
    2. What is the difference between personal hygiene and community health?
    3. List and briefly describe the five dimensions of health.
    4. Name three determinants of health and give an example of how each one can impact an individual's well-being.
    5. What is epidemiology and why is it important in community health?

    References (from Curriculum for CN-1105):

    The following reference materials are recommended for this module unit.

    • Rahim, A. (2017). Principles and practices of community medicine. 2nd Edition. JAYPEE Brothers Medical Publishers Ltd. New Delhi
    • Cherie Rector, (2017), Community & Public Health Nursing: Promoting The Public's Health 9e Lippincott Williams and Wilkins
    • Gail A. Harkness, Rosanna Demarco (2016) Community and Public Health Nursing 2nd edition, Lippincott Williams and Wilkins
    • Basavanthapp, B.T and Vasundhra, M.K (2008), Community Health Nursing, 2nd edition. JAYPEE Brothers Medical Publishers Ltd. New Delhi
    • Kamalam, S. (2017), Essentails in Community Health Nursing Practice 3rd edition. JAYPEE Brothers Publishers Ltd. New Delhi
    • James F. McKenzie, PhD, et al. (2018) An Introduction to Community & Public Health, 9th edition, Jones and Bartlett Publishers.
    • Maurer, F.A, Smith, C.M (2005), Community /Public health Nursing Practice, 3rd edition ELSEVIER SAUNDERS, USA
    • МОН, (2013) Occupational Safety and Health Training Manual, 1st Edition

    Personal and Communal Health (PCH) Read More »

    Cold Chain

    The Vaccine Cold Chain - A Guide for Health Workers

    The Vaccine Cold Chain

    Definition and Importance

    The cold chain is a system of storing, transporting, and distributing vaccines at specified low temperatures—typically between +2°C and +8°C—from the point of manufacture to the point of administration. Its purpose is to ensure that vaccines remain in a potent state until they are given to a recipient.

    Vaccines are sensitive biological products. Unlike other medicines, their potency, once lost, can never be regained. Exposure to excessive heat, direct sunlight, or (for some vaccines) freezing temperatures will permanently damage them. Administering a damaged, non-potent vaccine is worse than not vaccinating at all, because it gives a false sense of security while leaving the person unprotected.

    The Three Pillars of the Cold Chain

    A successful cold chain is a coordinated effort consisting of three essential components:

    1. People: The trained personnel (logisticians, storekeepers, health workers) who manage, transport, and administer the vaccines.
    2. Equipment: The refrigerators, cold boxes, vaccine carriers, and monitoring devices needed to store and transport vaccines safely.
    3. Procedures: The set rules and protocols for handling vaccines, monitoring temperatures, managing stock, and maintaining equipment.

    The Cold Chain System in Uganda

    In Uganda, the cold chain is a tiered system designed to move vaccines from the national level down to the community.

    • National Level: Vaccines arrive at Entebbe airport and are stored at the Central Vaccine Store (CVS).
    • District Level: Vaccines are transported to District Vaccine Stores (DVS).
    • Sub-District Level: From the DVS, vaccines are distributed to Health Sub-District (HSD) stores.
    • Facility Level: Finally, vaccines reach the static health units (hospitals, health centers) where they are administered.

    A health worker is responsible for maintaining the cold chain at the health unit, during transport to and from outreach sites, and during the immunization session itself. Maintaining the cold chain demands constant vigilance.

    Cold Chain Equipment: Requirements and Functions

    a) Cold Rooms and Freezer Rooms

    • These are large, walk-in storage units located at the national level (Central Vaccine Store).
    • Cold Rooms: Maintain a temperature of +2°C to +8°C for storing the majority of vaccines.
    • Freezer Rooms: Maintain a temperature below -15°C for long-term storage of heat-sensitive vaccines like Oral Polio Vaccine (OPV) and for freezing large quantities of ice packs.
    • These systems are always supported by standby generators to ensure continuous power.

    b) Refrigerators

    Refrigerators are the most critical piece of equipment at the district and health facility levels.

  • Ice-Lined Refrigerators (ILR):
    • These are top-opening refrigerators with a lining of water-filled tubes. This "ice lining" freezes and holds the cold for long periods.
    • They are highly efficient because cold air is dense and does not "spill out" when the top lid is opened.
    • In case of a power outage, an ILR can maintain the correct temperature for over 72 hours, provided the lid is not opened frequently. This makes them ideal for areas with unreliable power.
  • Absorption Refrigerators:
    • These are very common at health facilities because they can operate on multiple energy sources: electricity, or heat derived from burning gas (LPG) or kerosene.
  • Solar Powered Refrigerators (Solar Direct Drive - SDD):
    • These use energy generated from solar panels, making them a sustainable option for facilities without access to the electrical grid.
    • A diagram or photo of a top-opening Ice-Lined Refrigerator (ILR), showing the ice lining and vaccine baskets inside.

    c) Cold Boxes and Vaccine Carriers

  • Cold Boxes:
    • These are large, insulated containers (5-22 liters) used for transporting vaccines from a district store to a health facility or for temporary storage during an emergency (e.g., refrigerator breakdown).
    • When lined with frozen ice packs, they can maintain the cold chain for 48 to 120 hours.
  • Vaccine Carriers:
    • These are smaller, insulated containers, much easier to carry for outreach services or to immunization sites where health workers have to walk.
    • They are lined with four conditioned ice packs and have a shorter cold life of 8 to 12 hours.
    • Each carrier is supplied with a piece of soft foam (sponge) that fits on top of the ice packs. This sponge holds opened vials during a session, keeping them cool while preventing direct contact with the ice packs.
    • A photo comparing a large cold box and a smaller, portable vaccine carrier, both with ice packs.

    d) Ice Packs and Their Preparation

  • Ice packs are flat, plastic containers filled with water and frozen to keep vaccines at the prescribed temperature. Smaller 0.3L packs are used in vaccine carriers, while larger 0.6L packs are used in cold boxes.
  • Preparing and Freezing Ice Packs:
    1. Fill clean ice packs with cool, clean water up to the marked level. Do not overfill.
    2. Tighten the cap securely to prevent leakage.
    3. Place the ice packs in the freezer compartment, preferably flat against the evaporator surface for faster freezing.
    4. Freeze until solid, which typically takes at least 48 hours.
    5. Check for any leaks and discard leaking ice packs. Keep them out of direct sunlight, which can make the plastic brittle and cause cracks.

    • e) Temperature Monitoring Tools

    • Vaccine Vial Monitor (VVM): A small, heat-sensitive label attached to a vaccine vial by the manufacturer. It has a dark outer circle and a lighter inner square. As the vial is exposed to heat over time, the inner square gradually darkens. The vaccine can be used as long as the inner square is lighter than the outer circle. If the inner square is the same color as or darker than the outer circle, the vaccine has been exposed to too much heat and must be discarded.
    • Freeze Tag or Chemical Freeze Indicator: An irreversible indicator that shows if vaccines have been exposed to freezing temperatures (below 0°C). This is crucial for protecting freeze-sensitive vaccines.
    • Fridge Tag or Thermometer: A device used to monitor the current temperature inside the refrigerator. It must be checked and recorded twice daily.
    A diagram showing the four stages of a Vaccine Vial Monitor (VVM), from Stage 1 (usable) to Stage 4 (discard).

    Practical Management of the Cold Chain at the Health Facility

    Maintaining the Vaccine Refrigerator

    Regular maintenance is essential to keep the refrigerator working efficiently and prevent vaccine loss.

    Daily Maintenance

    • Check the power source: For a gas fridge, ensure the burner flame is blue. For an electric fridge, confirm power is on. For a solar fridge, check the indicator lights.
    • Never set the thermostat to the maximum setting, as this can damage freeze-sensitive vaccines.
    • Always have a standby filled gas cylinder for a gas-operated refrigerator.
    • Clean the outside of the fridge with a damp cloth.

    Weekly Maintenance

    • Check the refrigerator to ensure it is level.
    • Check vaccine stock levels and expiry dates. Update the vaccine control book and perform physical counts.
    • Check for ice formation on the evaporator. Defrost when the ice is about 5mm thick.

    Monthly Maintenance

    • Clean the inside and outside of the refrigerator with mild soap and water.
    • Clean the rubber seal on the door/lid and check if it is closing tightly. If not, inform the District Cold Chain Technician (DCCT) or Assistant (DCCA).
    • Check the cooling unit at the back of the fridge for dirt or dust and have it cleaned by a technician if necessary.

    How to Defrost the Refrigerator

    Defrosting removes ice from the evaporator to maintain cooling efficiency. Excessive frost acts as an insulator and makes the fridge work harder. For a well-maintained fridge, this can be done once a month.

    1. First, read and record the refrigerator's temperature.
    2. Line a vaccine carrier or cold box with conditioned ice packs. (To condition an ice pack, leave a frozen pack at room temperature until you can hear water sloshing inside. This ensures its surface is at 0°C, not below freezing, which protects freeze-sensitive vaccines.)
    3. Pack the vaccines in polythene bags and place them in the carrier, arranging them by sensitivity.
    4. Place a thermometer inside the carrier to monitor its temperature. Place the foam pad on top and close the lid securely.
    5. Turn off the refrigerator's power source (disconnect gas, unplug electricity, or switch off solar).
    6. Keep the lid of the fridge open until all the ice has completely melted. Do not use sharp objects to scrape off the ice.
    7. Once melted, clean the inside of the fridge with mild soap and a damp cloth, then dry it thoroughly.
    8. Turn the refrigerator back on and place a thermometer inside.
    9. Monitor the temperature until it returns to the safe range of +2°C to +8°C.
    10. Once the temperature is stable, return the vaccines to the fridge, packing them correctly.
    11. Record the "defrosting" action on the temperature monitoring chart.

    Consequences and Management of Refrigerator Temperature

    Effects of Not Defrosting

    Failing to defrost the refrigerator regularly when ice builds up to 5mm or more can lead to several problems that compromise vaccine safety and equipment function:

    • Vials lose labels: The increased moisture inside the compartments can cause paper labels on vaccine vials to become wet and fall off, leading to medication errors.
    • Temperature fluctuates: A thick layer of ice acts as an insulator, making it harder for the refrigerator to maintain a stable, cool temperature. This can lead to temperature fluctuations that damage vaccines.
    • Fridge compartments become wet: This can damage vaccine packaging and create an unhygienic environment.
    • Increased energy consumption: The refrigerator will consume a lot more gas or electricity, or drain solar batteries faster, as it works harder to try and cool through the ice layer.
    • Reduced storage space: Ice buildup significantly reduces the available space in the freezer compartment for freezing ice packs.

    How to Monitor and Adjust the Temperature of a Refrigerator

    Monitoring the Temperature
    • To monitor the temperature of the main section of a refrigerator, you need a thermometer or a fridge tag.
    • A temperature chart should be fixed on or near the refrigerator. These charts must be filled out diligently and reviewed on a monthly basis. Completed charts should be filed and kept for at least 3 years.
    • Read the temperature on the thermometer/fridge tag every morning (e.g., 8:00 am) and every afternoon (e.g., 4:00 pm). This must be done every single day, including weekends and public holidays.
    • Record the temperature immediately on the temperature chart after each reading.
    Adjusting the Temperature of Vaccine Refrigerators

    If the temperature reading is outside the safe range of +2°C to +8°C, you must take immediate action.

  • If the temperature is ABOVE +8°C, proceed as follows:
    1. First, make sure that the refrigerator is working. Check the power source (is the gas on? is there electricity?).
    2. Check whether the door or lid of the refrigerator closes properly. The rubber seal may be broken or worn out, allowing warm air to enter.
    3. If the refrigerator is working, turn the thermostat knob so that the arrow points to a higher number from its current position. This will make the refrigerator run more and become cooler.
    4. If the refrigerator is not working at all, you must implement the emergency plan: store all vaccines in a vaccine carrier or cold box with conditioned ice packs and arrange for their immediate transfer to the nearest health facility with a working refrigerator.
  • If the temperature is BELOW +2°C, proceed as follows:
    1. Turn the thermostat knob so that the arrow points to a lower number from its current position (e.g., from position 5 to 3). This will make the refrigerator run less and become warmer.
    2. Immediately check all freeze-sensitive vaccines for signs of freezing. These include DPT-HepB-Hib, PCV, IPV, Rota, HPV, HepB, and TT. This is done by performing the Shake Test.

    • Maintaining Correct Temperature in Cold Boxes and Vaccine Carriers

    • Keep the lid tightly closed on the vaccine carrier or cold box at all times, except when removing a vial.
    • During immunization sessions, keep opened multi-dose vials in the foam pad (sponge) of the vaccine carrier. The sponge keeps the vials cool while holding them securely.
    • Do not take out all the vials and place them on a table. If you keep opening the carrier and lifting the sponge, the inside of the carrier will become warm and compromise vaccine quality.
    • Keep cold boxes and vaccine carriers in the shade. Never leave a cold box or vaccine carrier in a vehicle parked in the sun.
    • Avoid dropping or rough handling (ill treatment) of cold boxes and carriers, as this can cause cracks in the insulated walls and lids, exposing vaccines to heat.
    • Use a thermometer or electronic temperature monitoring device to check that the temperature inside the vaccine carrier is being maintained between +2°C and +8°C.
    Key Points on Managing a Vaccine Refrigerator
    • Check and record the temperature twice a day, every day, including weekends and holidays.
    • Always ensure there is a reliable power source (electricity, gas, or solar). For a gas fridge, always have a full standby gas cylinder.
    • Defrost your refrigerator regularly. A thick layer of ice does not keep a refrigerator cool; it makes it work harder and use more power.
    • The refrigerator should always be located out of direct sunshine, away from drafts of wind, and in a well-ventilated, uncongested room.
    • It is important to appoint an EPI focal person in each health center who has the main responsibility of monitoring the cold chain and taking immediate action when the temperature is too high or too low.
    Troubleshooting Frequent Defrosting

    If you need to defrost your refrigerator more than once a month, it may indicate a problem. Check if:

    • The door is being opened too often (more than 3 times daily).
    • The door is not closing properly or the rubber gasket is broken/worn out.

    If these issues persist, consult the DCCT or DCCA for assistance.

    The Reverse Cold Chain: Ensuring Sample Integrity and Vaccine Quality

    For nurses and midwives in Uganda, understanding the "reverse cold chain" is just as crucial as knowing the conventional cold chain. While the regular cold chain ensures vaccines stay potent from manufacturer to patient, the reverse cold chain deals with the critical journey of sensitive biological samples and potentially compromised vaccines from your health facility back to a specialized laboratory. This process is vital for disease surveillance, outbreak investigation, and maintaining the integrity of our immunization programs.

    Definition Elaborated:

    The Reverse Cold Chain is a meticulously managed system for transporting temperature-sensitive biological samples (like stool, blood, or viral swabs) or vaccine vials from peripheral health facilities, district hospitals, or even community outreach points back to a central, regional, or national reference laboratory. Its core principle is to maintain a continuous, controlled temperature range (typically +2°C to +8°C, or frozen for some specific samples) throughout the entire backward journey, just as we do for vaccines coming to you. This ensures the viability of pathogens in clinical samples or the stability of vaccine components for accurate testing and analysis.

    Primary Purpose (Disease Surveillance and Laboratory Confirmation):

    This is arguably the most common and vital application of the reverse cold chain for frontline healthcare workers. It is absolutely essential for robust disease surveillance programs. When you collect a sample from a patient suspected of having a specific infectious disease, the integrity of that sample is paramount for accurate diagnosis and public health action. For example:

    • Acute Flaccid Paralysis (AFP) Surveillance: Under the Polio Eradication Initiative, if you encounter a child with sudden onset of weakness or paralysis (suspected AFP), collecting two stool specimens at least 24 hours apart, but within 14 days of onset, is critical. These stool samples must be immediately placed in a cold box with ice packs and transported to the district level, and then rapidly forwarded to the Uganda Virus Research Institute (UVRI) or another designated reference laboratory. Maintaining the +2°C to +8°C range ensures that if poliovirus is present, it remains viable and can be isolated and identified in the laboratory. This is how we detect polio circulation and guide response efforts.
    • Measles/Rubella Surveillance: Similarly, blood or nasopharyngeal swab samples from suspected measles or rubella cases need cold chain transport to the lab for confirmation, genotype analysis, and outbreak management.
    • Cholera/Typhoid Outbreak Investigation: Stool or rectal swab samples from suspected cases must be kept cold to preserve the bacteria for culture and antibiotic sensitivity testing.

    Without a functional reverse cold chain, samples degrade, pathogens die, and laboratory results become unreliable, hindering timely public health responses and outbreak control.

    Secondary Purpose (Vaccine Potency Monitoring and Quality Control):

    While less frequent than sample transport, the reverse cold chain is also critical when the potency or integrity of vaccines is in question. If a batch of vaccines has been exposed to temperature excursions (e.g., a refrigerator breakdown, prolonged power outage), or if there's a suspected issue with vaccine efficacy in the field, samples of these vaccines may need to be returned to a central laboratory for re-testing. Maintaining the +2°C to +8°C range during this return journey is crucial to ensure that any degradation observed in the lab is genuinely due to the initial cold chain breach and not further damage during transport.

    OPV as a Cold Chain Indicator:

    The Oral Polio Vaccine (OPV) is renowned for its extreme sensitivity to heat. This characteristic makes it an invaluable "canary in the coal mine" for the entire cold chain system. If you find that your OPV is consistently potent (e.g., through Vaccine Vial Monitors - VVMs - showing no change, or if lab testing confirms its viability after transportation), it provides strong assurance that other, more stable vaccines (like DPT, Measles, or Hepatitis B) have also been maintained within their optimal temperature ranges. Conversely, if OPV VVMs show heat exposure or if laboratory tests indicate degradation, it's a clear signal that there's a problem with your cold chain system that needs immediate investigation and correction, impacting all vaccines.

    Scenario for Nurses and Midwives in Uganda:

    Imagine you are a midwife working at a Health Centre II in a remote part of Uganda. During your routine immunization session, you identify a 5-year-old child presenting with sudden weakness in both legs, unable to stand or walk, with no history of trauma. You immediately suspect Acute Flaccid Paralysis (AFP), a key symptom of polio.

    Nurses / Midwives Role in the Reverse Cold Chain:

    1. Sample Collection: You meticulously collect two stool samples from the child as per national guidelines, ensuring proper labeling with the child's details, date, and time.
    2. Immediate Cold Storage: As soon as the samples are collected, you place them into a pre-cooled vaccine carrier or cold box that contains frozen ice packs, ensuring the samples are kept between +2°C and +8°C. You never allow them to freeze.
    3. Documentation: You fill out the necessary laboratory request forms, ensuring all clinical details, contact information, and onset dates are accurately recorded.
    4. Transportation: You coordinate with the district health office or the designated sample transporter to ensure these critical samples are dispatched promptly. The transporter must also use a cold box with functioning ice packs and maintain the temperature throughout the journey from your Health Centre II to the district hospital, and then onward to the regional or national reference laboratory (like UVRI).
    5. Monitoring: While you don't physically accompany the samples, you rely on the system to ensure continuous cold chain maintenance. The integrity of that cold chain from your facility to the lab is what makes your diagnostic efforts meaningful.

    This entire process, from your cold box at the health center to the laboratory's refrigerator, is the reverse cold chain in action. Your careful attention to maintaining sample temperature ensures that if poliovirus is indeed present, the laboratory can successfully isolate it, allowing the Ministry of Health to take swift action to prevent further spread and protect other children in Uganda.

    Cold Chain Read More »

    Want this in PDF?

    Copy the link

    Send it to 0726113908 on WhatsApp

    Prepare Shs. 5000 (1.3$)

    And you will get the full PDF sent to you on WhatsApp.

    Scroll to Top
    Enable Notifications OK No thanks

    Terms and Conditions - Privacy Policy
